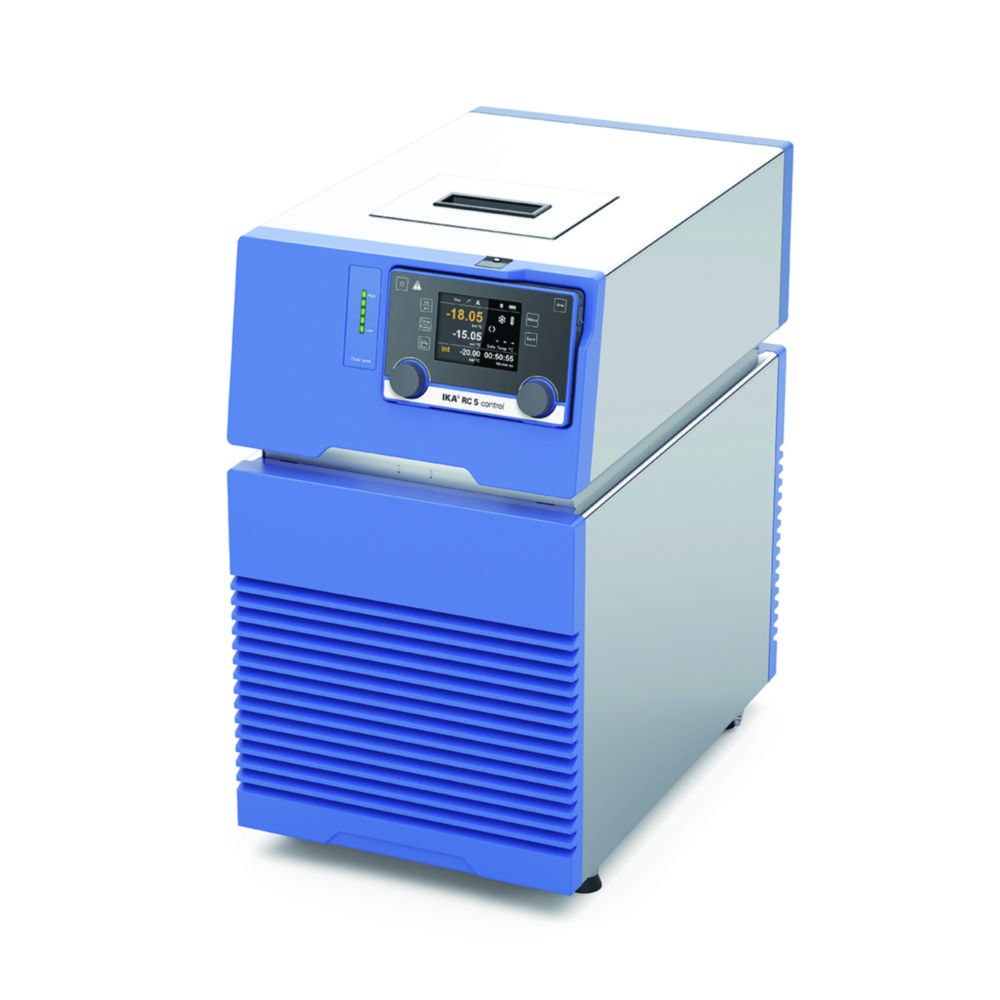

Circulator baths RC 5 control
Powerful recirculating chiller, designed for external cooling applications up to -30 °C. The energy-efficient chiller is operated with an eco-friendly refrigerant and reaches a high power density. This results in a comparatively small working space in the lab. Due to the excellent temperature stability they can handle even sophisticated applications. The isolated, high-quality bath has an integrated hopper and drain valve, ensuring safe and clean handling of the thermofluid.
- Speed-controlled refrigeration system (PEEK)
- Speed-controlled pump (PEEK)
- Natural thermofluid R290
- Extended operating temperature range until 80°C
- Digital level indicator
- Interfaces: RS 232 and USB
- Remote control via Wireless Controller (WiCo)
- Simplified and automated processes through 10 freely programmable temperature ramps with 10 steps each
- Timer/Counter
- Degassing function
- Connection of magnetic valves possible (Mulit IO)
- Alarm contact (Multi IO)
- Connector for standby contact input (Multi IO)
- Connection for external PT100 temperature sensor (included in delivery)
Toote variatsioonid
| External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | IP code | Max. flow rate | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Max. volume bath | atr_llg_min_volume_bath | Catalog number | Power supply | Programmable | Temp. Stability | Temperature | Temperature | Type | Type of display | Volume bath | Weight | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 310 x 490 x 546 mm | 490 mm | 546 mm | 310 mm | IP 21 | 0.45 bar | 30 °C | 230 V | 7.0 l | 5.0 l | 4.672 725 | 230 V, 50...60 Hz | Yes | 0,1 K | RT | RT ... -30 °C | RC 5 control | TFT | 5.0 ... 7.0 l | 37.5 kg | Yes | 1.00 |
