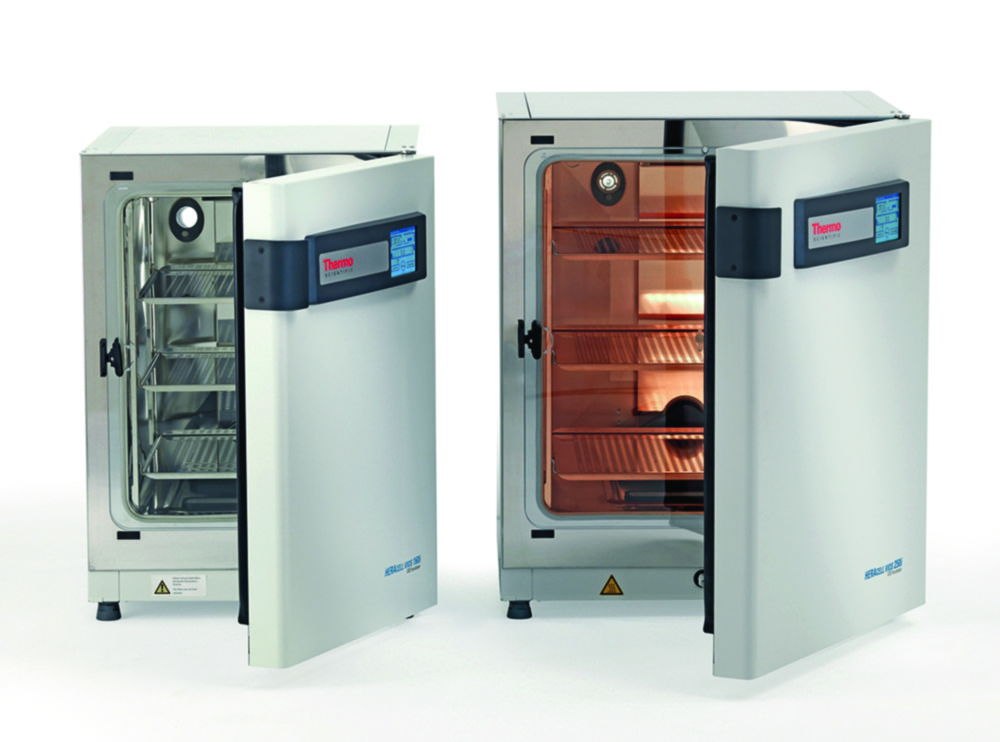

CO2 incubators Heracell™ VIOS 160i, single chamber, TC-CO2 sensor
Air jacket temperature controlled incubator for cell and tissue cultures with unique THRIVE™ airflow system for fast recovery times and optimal growth conditions.
- Cleanroom class ISO 5 through HEPA filtration
- High-temperature sterilization cycle Steri-Run™ at 180 °C (duration < 12 hours) simplifies cleaning and enables uniform sterilization of all chamber surfaces
- Integrated water reservoir with protective cover for max. relative humidity without condensate formation
- Easy filling and emptying of the water reservoir without removing shelves
- Bright LED display with iCAN™ touch screen simplifies monitoring and control of all incubation parameters and user actions thanks to intuitive menu navigation
- Programmable access code provides additional security
- Language selection facilitates operation: English, German, Spanish, French, Italian, Japanese, Mandarin
- Standard equipment: Auto-start calibration, water level alarm, USB interface, potential-free alarm contact, feed-through (Ø 42 mm) with silicone plug, three-part inner door, 3 shelves
- Capacity: 165 l
- Dimensions, external (W x D x H): 637 x 880 x 900 mm
- Dimensions, internal (W x D x H): 470 x 576 x 607 mm
- Weight: 83 kg
- Nominal consumption: 0.56 kW
Toote variatsioonid
| Depth int. | Ext. depth | Ext. height | Ext. width | Height int. | Int. width | Material inserts | Material interior | Max. no. of inserts | Max. temperature | Min. temperature | Nominal capacity | Catalog number | Rated capacity | Temperature | Type | Weight | With timer | PK | Max. CO₂ | Max. voltage | Min. CO₂ | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 576 mm | 880 mm | 900 mm | 637 mm | 607 mm | 470 mm | Stainless steel | Stainless steel | 10 | 55 °C | 3 °C | 165 l | 6.266 612 | 0.55 kW | RT | Heracell™ VIOS 160i | 83 kg | Yes | 1.00 | 20 % | 120 V | 1 % | ||
| 576 mm | 880 mm | 900 mm | 637 mm | 607 mm | 470 mm | Stainless steel | Stainless steel | 10 | 55 °C | 3 °C | 165 l | 6.266 613 | 0.56 kW | RT | Heracell™ VIOS 160i | 83 kg | Yes | 1.00 | 20 % | 230 V | 1 % | ||
| 576 mm | 880 mm | 900 mm | 637 mm | 607 mm | 470 mm | Copper | Copper | 10 | 55 °C | 3 °C | 165 l | 6.266 614 | 0.55 kW | RT | Heracell™ VIOS 160i | 83 kg | Yes | 1.00 | 20 % | 120 V | 1 % | ||
| 576 mm | 880 mm | 900 mm | 637 mm | 607 mm | 470 mm | Copper | Copper | 10 | 55 °C | 3 °C | 165 l | 6.266 615 | 0.56 kW | RT | Heracell™ VIOS 160i | 83 kg | Yes | 1.00 | 20 % | 230 V | 1 % |
