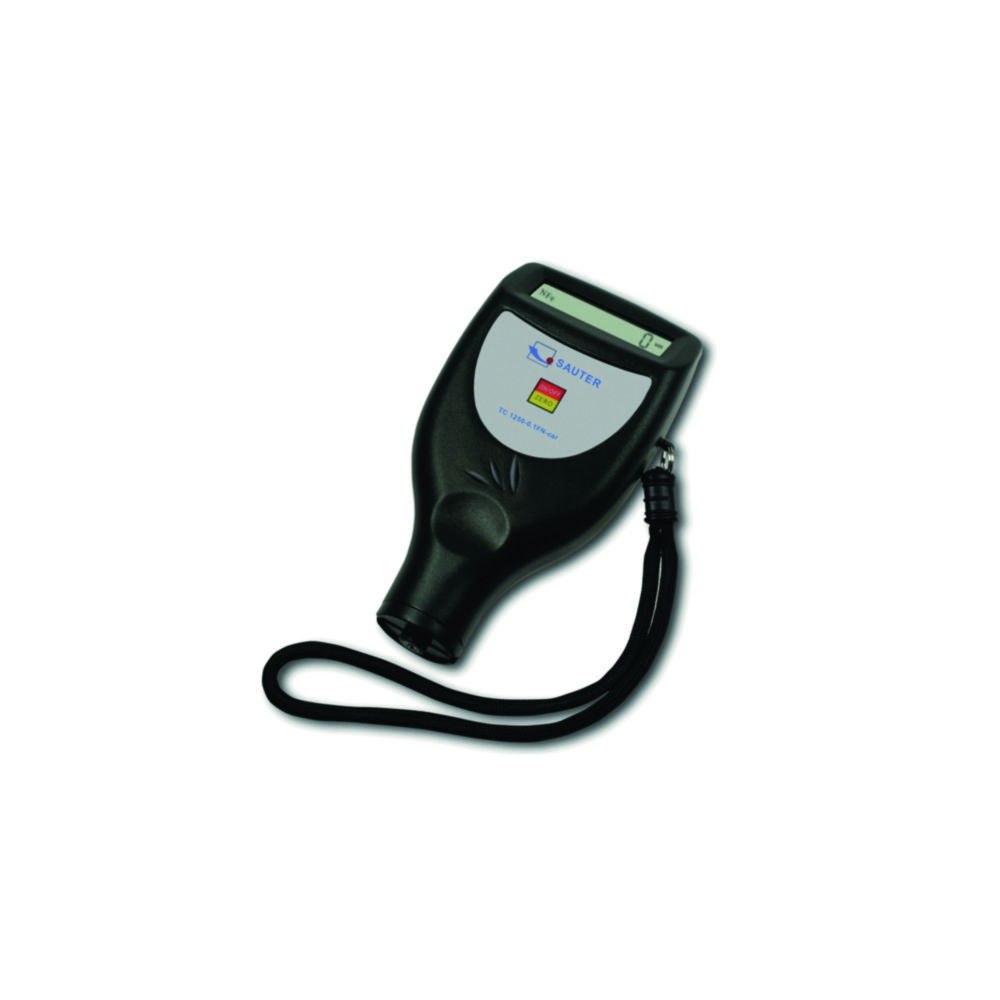

Coating thickness gauge, digital, TC-FN-CAR
For non-magnetic coatings on iron and steel and coatings on non-magnetic metals. The Offset-Accur function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a higher accuracy of approx. 1 % of the measured value.
- Automatic recognition of measuring mode (F or N)
- Simple and convenient 1-key operation
- With integrated sensor
- Selectable measuring units: µm, inch (mil)
- Battery operation
- Data interface RS-232
Scope of supply:
Coating thickness gauge, base plate, calibration foils, carrying case
Toote variatsioonid
| Depth | Designation ANSI | Height | Catalog number | Tolerance | Width | PK | Battery/rechargeable battery | Dimensions (WxDxH) | Measured range | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 65 mm | AAA | 25 mm | 4.691 203 | 3 % | 123 mm | 1.00 | 4 x 1.5 V, AAA | 123 x 65 x 25 mm | 100 ... 1250 µm |
