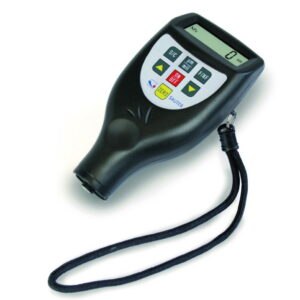

Coating thickness gauges, digital, TB-F
For measuring of non-magnetic coatings on iron and steel. The Offset-Accur function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a higher accuracy of approx. 1 % of the measured value.
- Selectable measuring units: µm, inch (mil)
- Auto-Power-Off
- Battery operation
Scope of supply:
Coating thickness gauge, external sensor, base plate, calibration foils, carrying case
Toote variatsioonid
| Depth | Height | Catalog number | Width | PK | Designation ANSI | Tolerance | Weight | Battery/rechargeable battery | Dimensions (WxDxH) | Measured range | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 69 mm | 32 mm | 4.691 199 | 161 mm | 1.00 | AA | 3 % | 750 g | 4 x 1.5 V, AA | 161 x 69 x 32 mm | 100 ... 1000 µm | ||
| 69 mm | 32 mm | 7.656 034 | 161 mm | 1.00 | AA | 3 % | 750 g | 4 x 1.5 V, AA | 161 x 69 x 32 mm | 100 ... 2000 µm |
