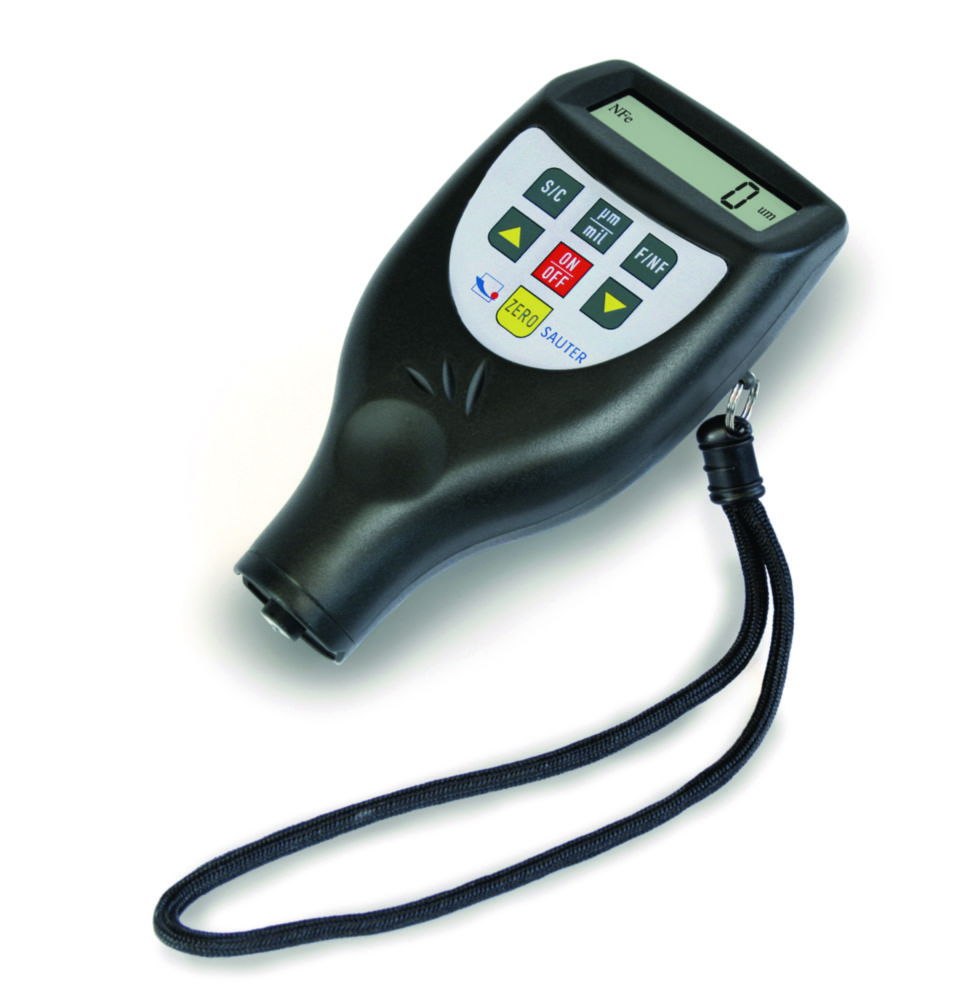

Coating thickness gauges, digital, TG
For non-magnetic coatings on iron and steel and coatings on non-magnetic metals. The Offset-Accur function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a higher accuracy of approx. 1 % of the measured value.
- LCD display, backlit
- Scan mode allows continuous measurement or single point measuring mode
- Mini Statistics Kit: displays the measured result, the average value and the max and the min value
- Internal memory up to 99 values
- Selectable measuring units: µm, inch (mil)
- Data interface RS-232
Scope of supply:
Coating thickness gauge, external sensor, base plate, calibration foils, carrying case
Toote variatsioonid
| Battery/rechargeable battery | Depth | Designation ANSI | Dimensions (WxDxH) | Height | Measured range | Catalog number | Tolerance | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 x 1.5 V, AAA | 65 mm | AAA | 126 x 65 x 35 mm | 35 mm | 100 ... 1250 µm | 6.270 970 | 3 % | 100 g | 126 mm | 1.00 |
