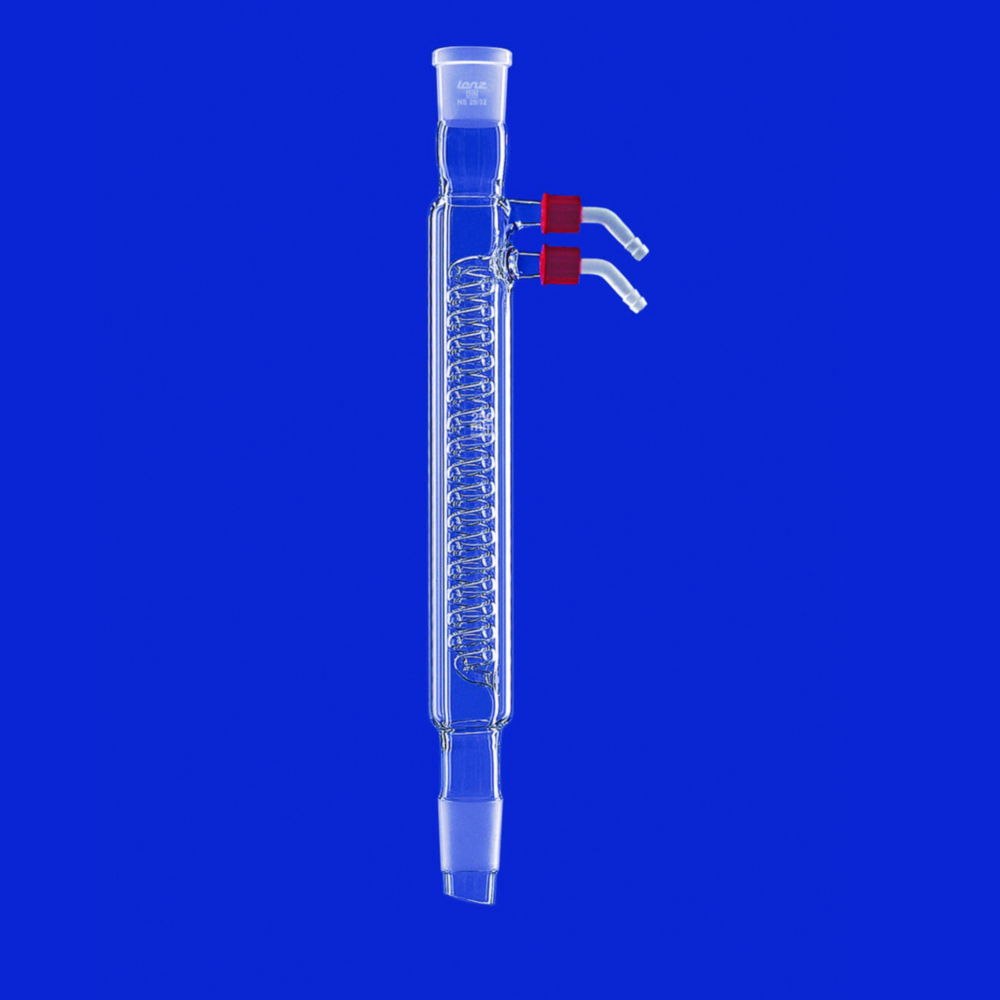

Coil condensers, DURAN® tubing, with plastic olives

Made of DURAN® tubing. Acc. to DIN 12593 and in addition to DIN standard. With jacketed cooling coil. Water connection with GL 14 thread with two threaded plastic olives.

Toote variatsioonid

ConnectionConnection sizeGround sizeMaterialCatalog numberPKStandardCooling surfaceLength jacketKogus
Tubing oliveGL 14NS29/32DURAN® tubing6.203 0181.00-840 cm²500 mm
Tubing oliveGL 14NS29/32DURAN® tubing9.012 5421.00DIN 12593240 cm²160 mm
Tubing oliveGL 14NS29/32DURAN® tubing9.012 5431.00DIN 12593400 cm²250 mm
Tubing oliveGL 14NS29/32DURAN® tubing9.012 5441.00DIN 12593650 cm²400 mm
Tubing oliveGL 14NS24/29DURAN® tubing6.310 6021.00-400 cm²250 mm
Tubing oliveGL 14NS14/23DURAN® tubing6.900 5221.00-240 cm²160 mm
