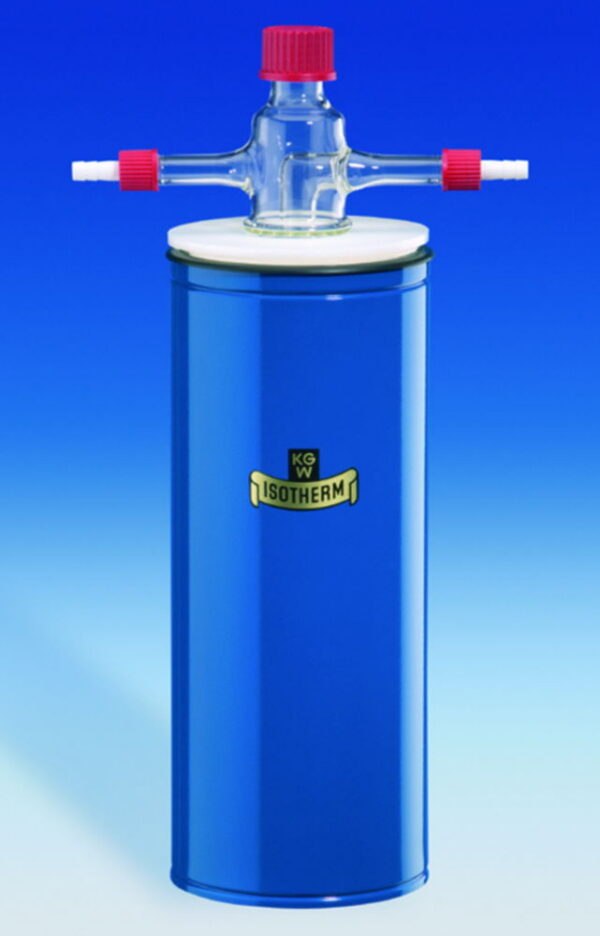

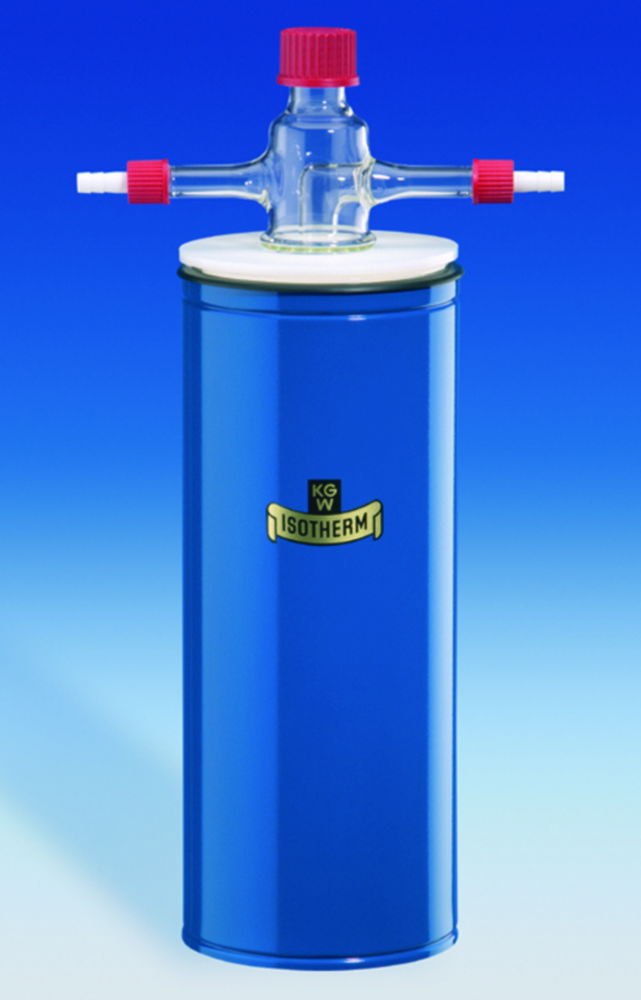

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version with spout
Cold traps have an additional glass thread GL 32 with screw cap as a spout.
Versions of the cold trap connections:
- S 29 = spherical ground joint S 29
- O 29 = spherical ground joint S 29 with O-ring seal
- GL 18 = glass thread GL 18 with PTFE olive Ø 10 mm
Scope of supply: Cold trap, support ring, Dewar flask type 12 C
The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone please order CO2 wire basket separately.
Toote variatsioonid
| Catalog number | PK | Connection size | Material | Type | Volume condensate | Volume coolant | Kogus | |
|---|---|---|---|---|---|---|---|---|
| 9.032 072 | 1.00 | O 29 | Boro 3.3 | KF 29-OK-A | 150 ml | 1000 ml | ||
| 9.032 071 | 1.00 | S 29 | Boro 3.3 | KF 29-K-A | 150 ml | 1000 ml | ||
| 9.032 073 | 1.00 | GL 18 | Boro 3.3 | KF 29-GL-A | 150 ml | 1000 ml |
