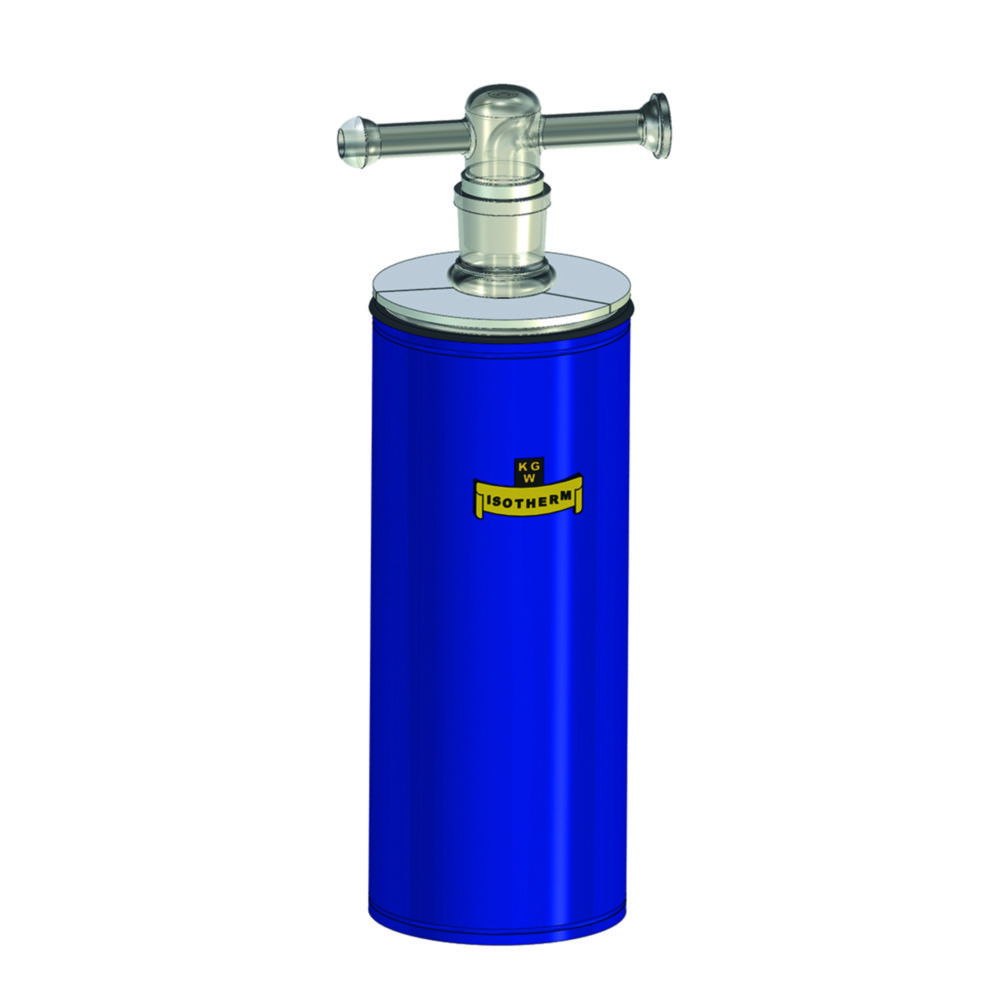

Cold traps with Dewar flask, borosilicate glass 3.3, two-piece, long version
The extended condensate area of the cold traps can hold a larger volume of condensate.
Versions of the cold trap connections:
- S 29 = spherical ground joint S 29
- GL 18 = glass thread GL 18 with PTFE olive Ø 10 mm
Scope of supply: Cold trap, support ring, Dewar flask type 18 C, spring steel clamp
The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone please order CO2 wire basket separately.
Toote variatsioonid
| Catalog number | PK | Connection size | Material | Type | Volume condensate | Volume coolant | Kogus | |
|---|---|---|---|---|---|---|---|---|
| 7.941 140 | 1.00 | S 29 | Boro 3.3 | KFL 29-K-Z | 250 ml | 2000 ml | ||
| 6.227 310 | 1.00 | GL 18 | Boro 3.3 | KFL 29-GL-Z | 250 ml | 2000 ml |
