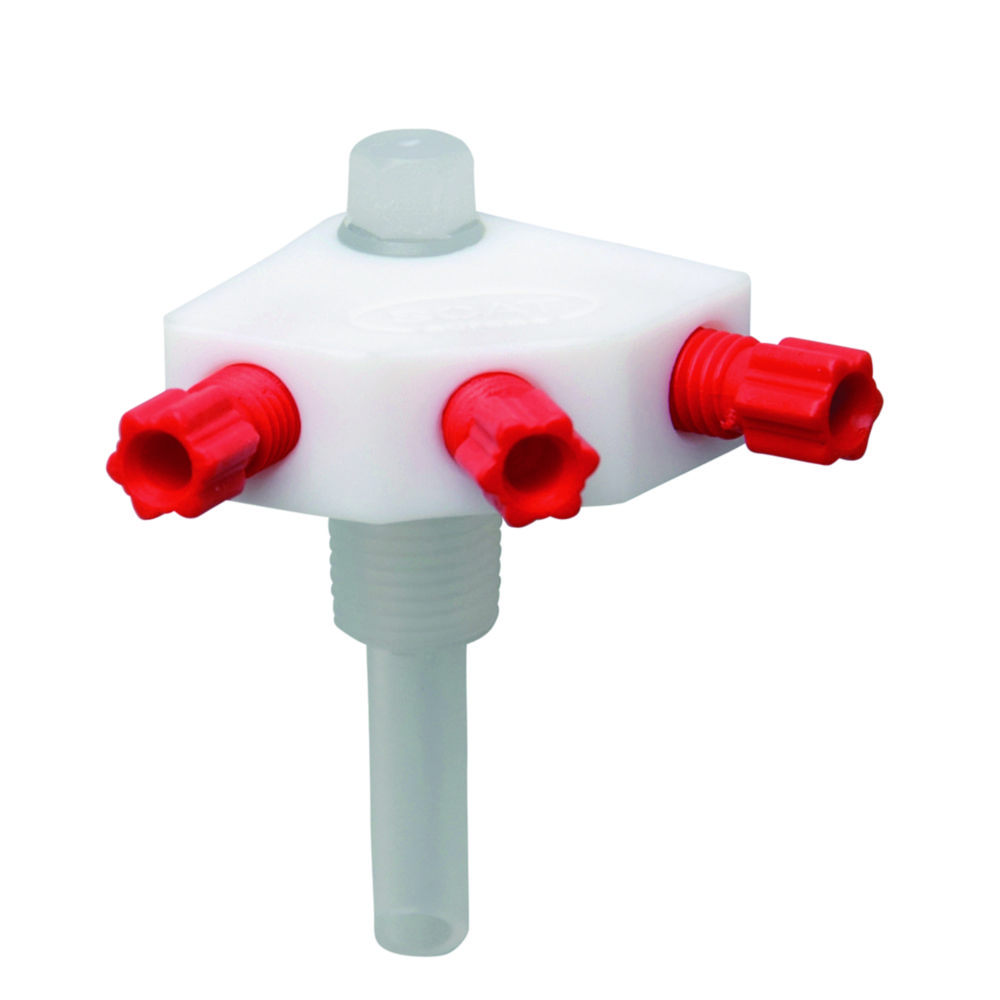

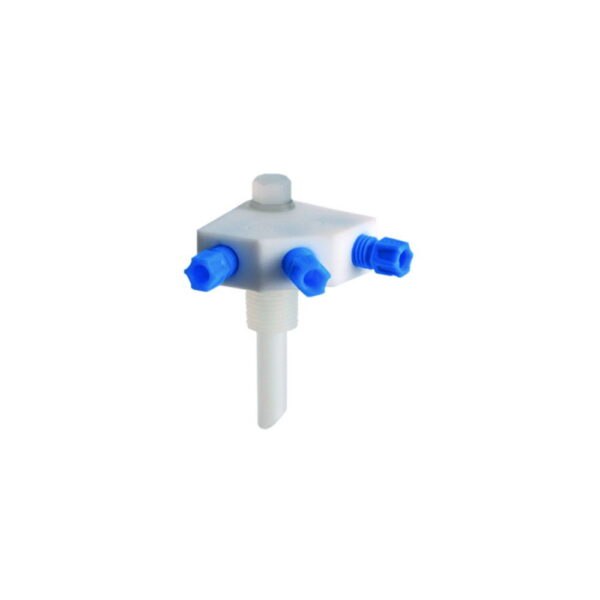

Collectors for tube connector for SafetyWasteCaps
Collectors for additional parts to add more tubings and capillaries. Delivered with fittings.
Further configurations available on request.
Toote variatsioonid
| Description | Material | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|
| 3 x connectors (90°) for 2 capillaries diam. 2.3/3.2mm o.d. and 1 tubing diam. 6.4-9.0mm i.d. | PTFE/PFA/PP | 4.005 859 | 1.00 | ||
| 3 x connectors (straight) for 3 capillaries diam. 6.4mm i.d. | PTFE/PP | 6.262 289 | 1.00 | ||
| 3 x connectors (straight) for 3 capillaries diam. 2.3/3.2mm o.d. | PTFE / PFA | 4.005 860 | 1.00 | ||
| 2 x connectors (straight) for 2 capillaries diam. 2.3/3.2mm o.d. | PTFE / PFA | 4.005 866 | 1.00 | ||
| 2 x connectors (90°) for 3 tubings diam. 6.4-9.0mm i.d. | PTFE/PP | 4.005 865 | 1.00 | ||
| 8 x connectors (straight) for 7 capillaries diam. 2.3/3.2mm o.d. and 1 tubing diam. 6.4mm i.d. | PTFE/PFA/PP | 4.005 976 | 1.00 | ||
| 8 x connectors (straight) for 8 capillaries diam. 2.3/3.2mm o.d. | PTFE / PFA | 9.139 889 | 1.00 |
