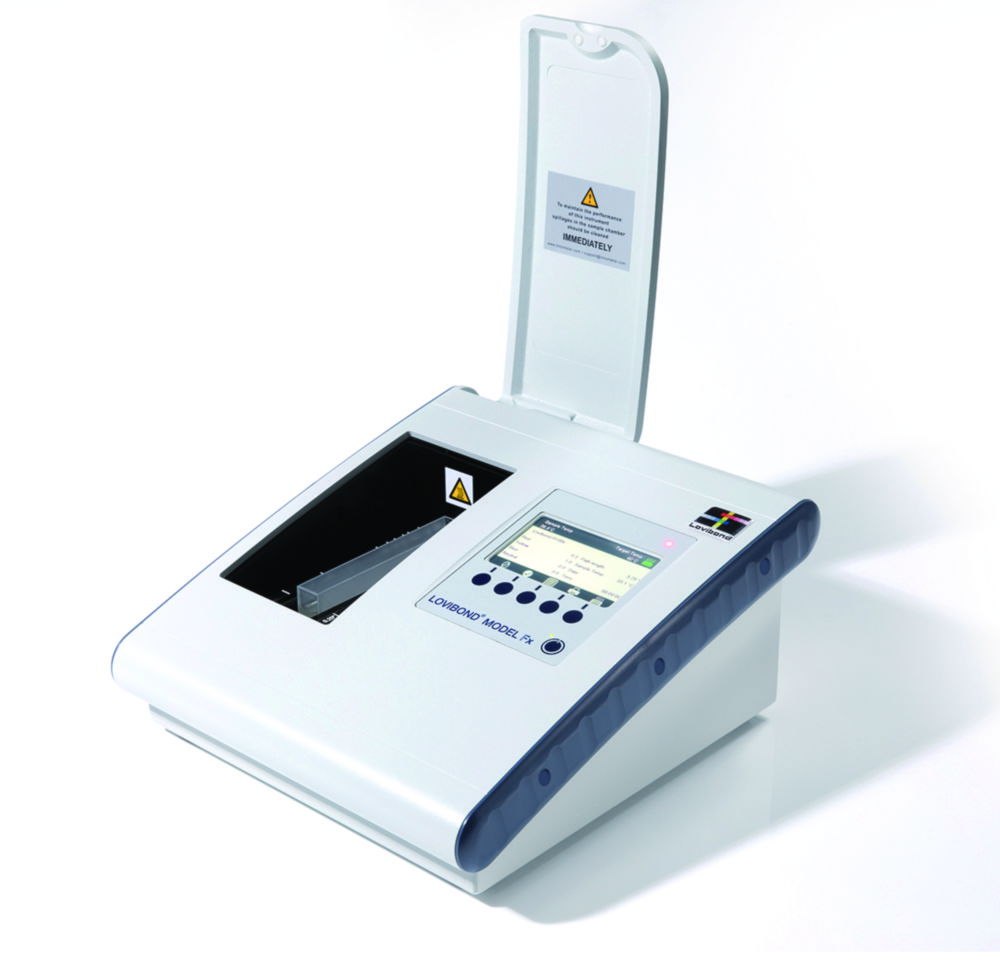

Colorimeter Fx

The Lovibond^® Model Fx solves the problem of measuring the colour of edible oils and fats with its unique ability to not only keep the oil at a constant temperature but also to measure and report on the temperature of the sample, avoiding any misreading from crystallisation. The oils can now be measured in their natural and correct state.

• Avoids misreading from crystallisation
• Measures Lovibond^® RYBN, Lovibond RY10:1, AOCS RY, Chlorophyll & b-Carotene
• Allows the Measurement of Hot Samples (Integrated Heater)
• Ensured Compliance to Standards

Scope of supply: Colorimeter, W600/B/1″ cell (borosilicate, 1″ path length), W600/B/5¼” cell (borosilicate, 5¼” path length), external power supply, quick start guide (hard copy), USB memory stick (containing the manuals), certificate of conformity

• Specifications
• Wavelength Range: 380 … 780 nm
• Accuracy: ± 0.2 nm
• Spectral Scope: < 15 nm
• Photometric Range: 0 … 100 % T
• Linearity: ± 0.01 % T
• Stray light: < 0.01 % T
• Interfaces: USB, RS 232
• Dimensions (W x D x H): 301 x 152 x 331 mm
• Weight: 516 g
