Colorimeters, Lovibond® PFXi series

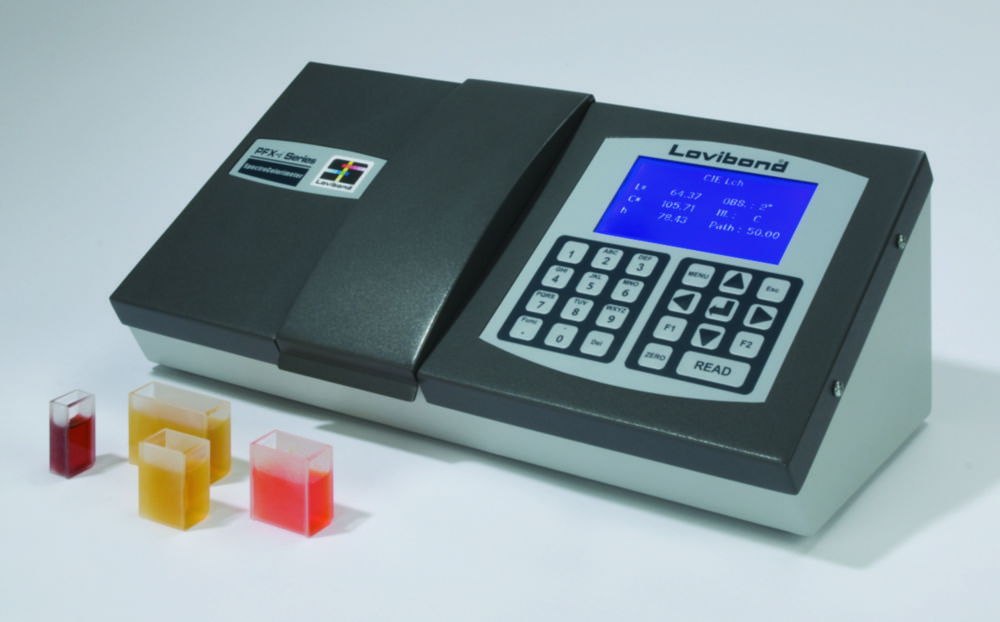

The PFXi series of spectrophotometric colorimeters introduces a unique concept in liquid colour control: RCMSi technology (Remote Calibration & Maintenance Service via internet). Users can benefit from the capability for remote calibration and servicing via the internet – eliminating any costs and time delays associated with servicing and guaranteeing compliance with standards. The PFXi range is supplied with a full range of colour scales for specific markets including, but not limited to, Petroleum, Edible Oils, Pharmaceuticals, Brewing and Honey. Users can upgrade scales remotely at any time. Every PFXi is supplied with colour control software for data analysis (LAN & USB cable provided). Optical glass cells, a certified glass calibration filter, a spare lamp and user instructions included. The PFXi-880 and -995 series are available with an optional integrated heater unit. (This is not available for the PFXi-195). This is a critical feature when dealing with materials such as fats and waxes where temperature needs to be maintained at a constant temperature +10°C above the “Cloud Point” of the material.
Please Note: CIE values and spectral data readings are standard on all the instruments listed below.

Toote variatsioonid

Catalog numberPKColour scaleDepthDimensions (WxDxH)HeightIlluminantsMax. voltageMin. voltagePath lengthPlug typePower supplySpectral bandwidthTypeWavelengthWidthKogus
9.947 2801.00Pt-Co/Hazen/APHA, Gardner, Iodine195 mm435 x 195 x 170 mm170 mmTungsten-halogen240 V·AC90 V·AC0,1 ... 50 mmEU/UK/US90 ... 240 V·AC, 50/60 Hz10 nmPFXi-195/1420 ... 710 nm435 mm
9.947 2831.00European & US Pharmacopoeia, Pt-Co/Hazen/APHA195 mm435 x 195 x 170 mm170 mmTungsten-halogen240 V·AC90 V·AC0,1 ... 50 mmEU/UK/US90 ... 240 V·AC, 50/60 Hz10 nmPFXi-195/5420 ... 710 nm435 mm
9.947 2811.00Saybolt, ASTM Colour, Pt-Co/Hazen/APHA195 mm435 x 195 x 170 mm170 mmTungsten-halogen240 V·AC90 V·AC0,1 ... 50 mmEU/UK/US90 ... 240 V·AC, 50/60 Hz10 nmPFXi-195/2420 ... 710 nm435 mm
9.947 2821.00EBC (CIE & 430 nm), ASBC (CIE & 430 nm), Series 52195 mm435 x 195 x 170 mm170 mmTungsten-halogen240 V·AC90 V·AC0,1 ... 50 mmEU/UK/US90 ... 240 V·AC, 50/60 Hz10 nmPFXi-195/4420 ... 710 nm435 mm
9.947 2841.00Lovibond® RYBN195 mm515 x 195 x 170 mm170 mmTungsten-halogen240 V·AC90 V·AC0,1 ... 153 mmEU/UK/US90 ... 240 V·AC, 50/60 Hz10 nmPFXi-880/L420 ... 710 nm515 mm
9.947 2871.00Saybolt Colour, ASTM Colour, Pt-Co/Hazen/APHA Colour, Gardner Colour, Lovibond® RYBN, IP Units195 mm515 x 195 x 170 mm170 mmTungsten-halogen240 V·AC90 V·AC0,1 ... 153 mmEU/UK/US90 ... 240 V·AC, 50/60 Hz10 nmPFXi-995/P420 ... 710 nm515 mm
9.947 2861.00Lovibond® RYBN, AOCS-Tintometer®, Gardner, Saybolt, Kreiss, Hess-Ives, Hunter Lab, Iodine colour, Pt-Co/Hazen/APHA195 mm515 x 195 x 170 mm170 mmTungsten-halogen240 V·AC90 V·AC0,1 ... 153 mmEU/UK/US90 ... 240 V·AC, 50/60 Hz10 nmPFXi-995420 ... 710 nm515 mm
9.947 2851.00Saybolt, ASTM Colour195 mm515 x 195 x 170 mm170 mmTungsten-halogen240 V·AC90 V·AC0,1 ... 153 mmEU/UK/US90 ... 240 V·AC, 50/60 Hz10 nmPFXi-880/P420 ... 710 nm515 mm
