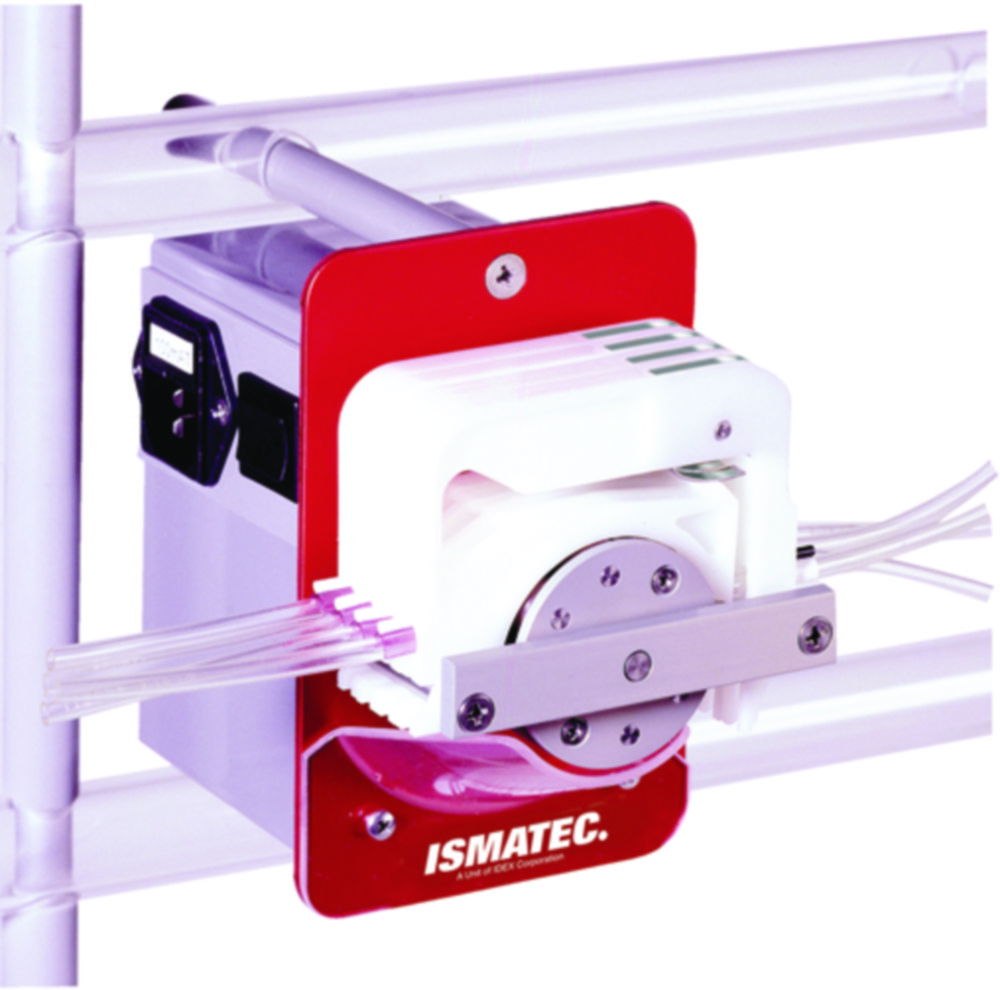

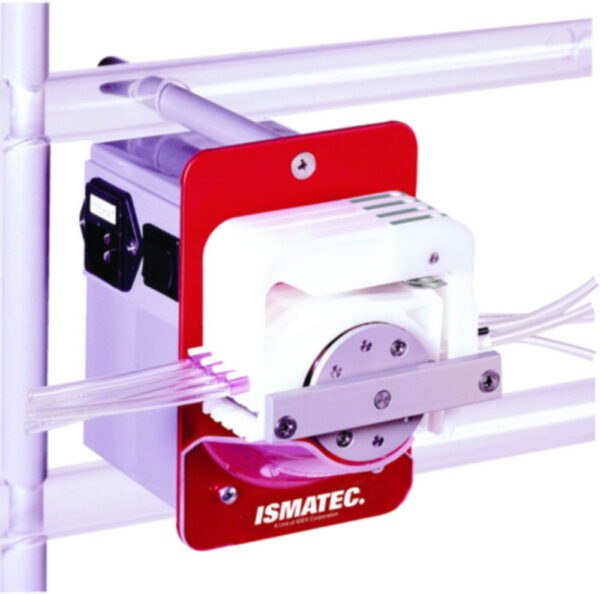

Compact peristaltic pumps MS-CA
Simple Click’n’go mini tubing assembly cartridges.
- 3-stop colour-coded tubing
- Fixed-speed motor
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | IP code | Max. flow rate | Max. speed | Max. voltage | Min. flow rate | No. of channels | No. of rollers | Catalog number | Power supply | Rated capacity | Speed | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 135 mm | 88 x 135 x 145 mm | 0.028 ... 8.5 ml/min | 145 mm | IP 30 | 20 1/min | 230 V | 4 | 6 | 9.828 147 | 230 V, 50 Hz | 8 W | 20 1/min | MS-CA 4/620 | 1.3 kg | 88 mm | 1.00 | ||||
| 135 mm | 88 x 135 x 125 mm | 0.043 ... 14 ml/min | 125 mm | IP 30 | 40 1/min | 230 V | 2 | 8 | 9.828 154 | 230 V, 50 Hz | 8 W | 40 1/min | MS-CA 2/840 | 1.2 kg | 88 mm | 1.00 | ||||
| 135 mm | 88 x 135 x 125 mm | 0.055 ... 17 ml/min | 125 mm | IP 30 | 40 1/min | 230 V | 2 | 6 | 9.828 144 | 230 V, 50 Hz | 8 W | 40 1/min | MS-CA 2/640 | 1.2 kg | 88 mm | 1.00 | ||||
| 135 mm | 88 x 135 x 145 mm | 0.043 ... 14 ml/min | 145 mm | IP 30 | 40 1/min | 230 V | 4 | 8 | 9.828 150 | 230 V, 50 Hz | 8 W | 40 1/min | MS-CA 4/840 | 1.3 kg | 88 mm | 1.00 | ||||
| 135 mm | 88 x 135 x 145 mm | 0.021 ... 7.1 ml/min | 145 mm | IP 30 | 20 1/min | 230 V | 4 | 8 | 9.828 149 | 230 V, 50 Hz | 8 W | 20 1/min | MS-CA 4/820 | 1.3 kg | 88 mm | 1.00 |
