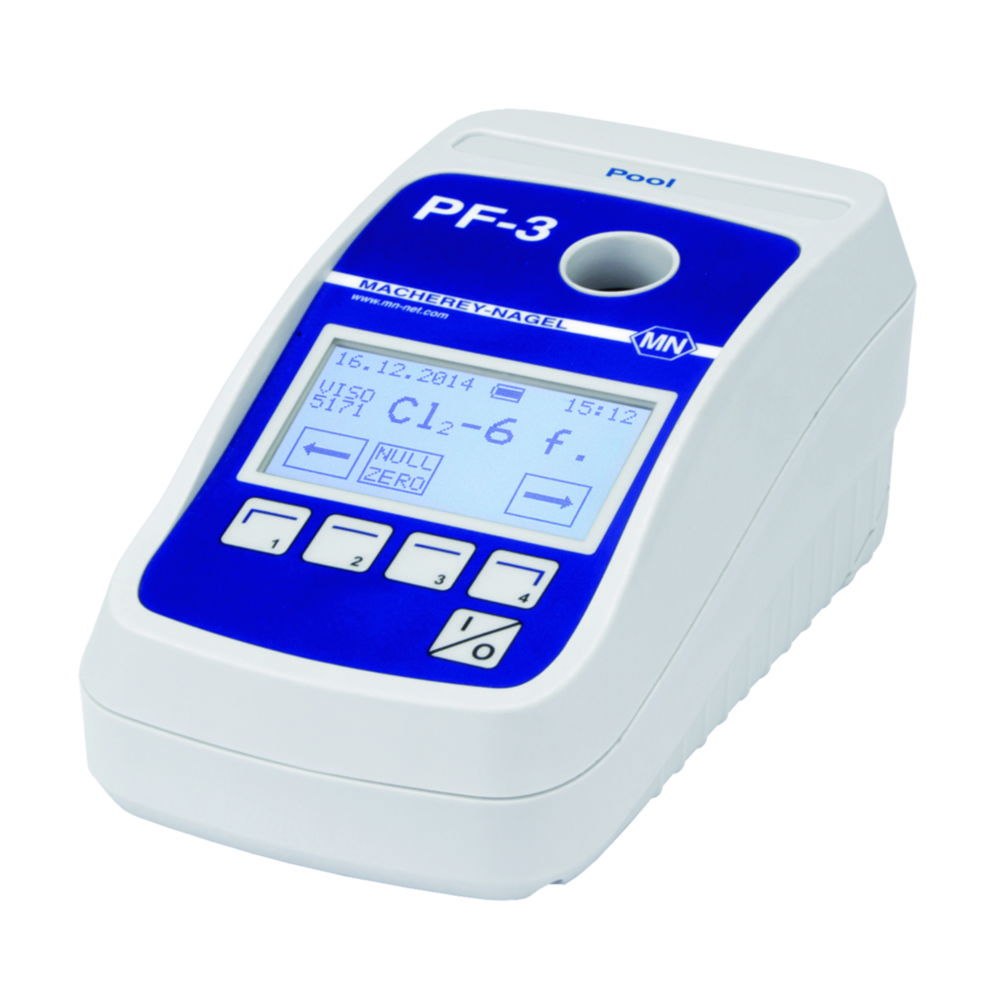

Compact Photometer PF-3 Pool

The LED Photometer PF-3 with micro processor control for evaluation of pre-programmed NANOCOLOR^® and VISOCOLOR^® ECO tests is ideally suited for mobile operation directly on site in the swimming pool.

• Add new tests and parameters anytime
• Self-test and auto calibration
• Insensitive to external light for fast measurement without cuvette slot cover
• Test selection from parameter lists
• Waterproof and sturdy
• Free software for data export

Scope of delivery: Photometer PF-3 in VISOCOLOR^® reagent case with VISOCOLOR^® ECO Chlorine 2 free + total (liquid), pH 6.0 – 8.2, cyanuric acid, alkalinity TA incl. calibration cuvette, 4 empty cuvettes, sample cup, 5 ml syringe, 3 batteries, manual, booklet “VISOCOLOR^® ECO Test Instructions for Compact Photometer PF-3″ and certificate in a sturdy case.

• Specifications
• Optics: LED with 3 interference filters
• Wavelengths: 450 nm / 530 nm / 590 nm
• Wavelength accuracy: ± 2 nm, bandwidth at half transmission 10 … 12 nm
• Data memory: 50 results
• Cuvette slot: Round cuvettes 16 mm OD
• Display: Backlit graphic display, 128 x 64 pixels
• Interface: Mini-USB
• Dimensions (W x D x H): 170 x 95 x 68 mm
• Weight: 500 g
• Power supply: USB interface, batteries, rechargeable batteries or accu-pack
• IP code: IP 68
