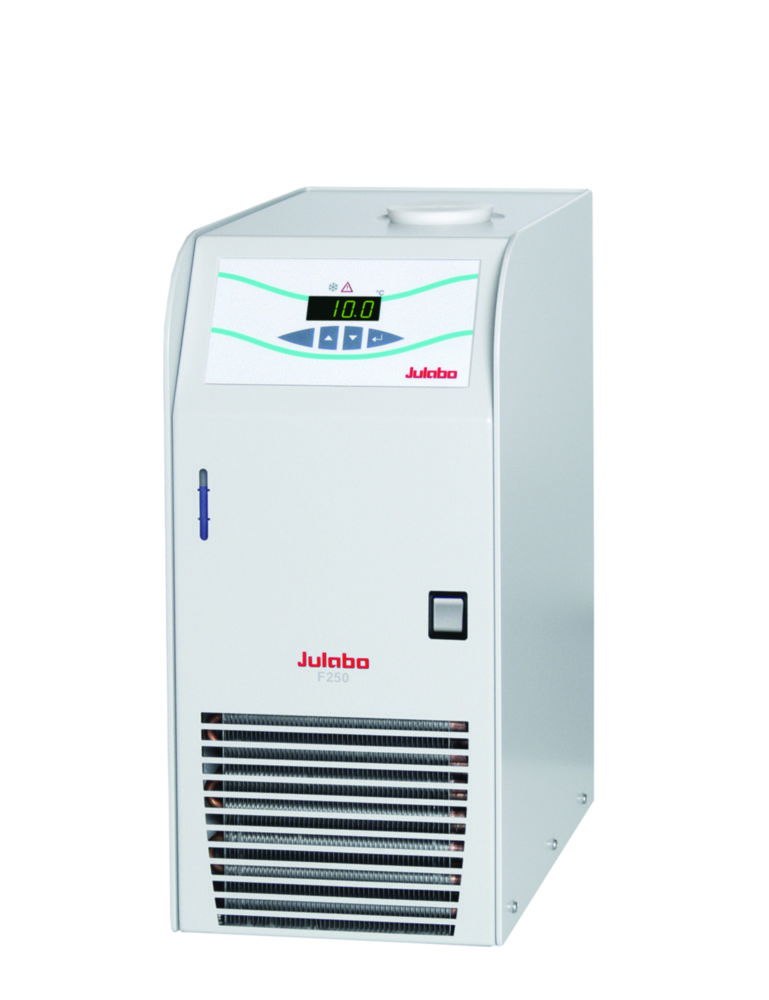

Compact Recirculating Cooler, F-Series
- Environmentally friendly operation with low energy consumption
- No side vents, instruments can be placed right next to other equipment
- All wetted parts made of stainless steel or high grade plastic
- Large, bright LED display
- Compact design and small foot print
- Splash-proof keypad
- Drain tap
- Easy filling
Toote variatsioonid
| External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | IP code | Material bath | Max. flow rate | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Catalog number | Power supply | Temp. Stability | Temperature | Type | Volume bath | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 240 x 400 x 520 mm | 400 mm | 520 mm | 240 mm | IP 20 | Stainless steel | 40 °C | 230 V | 2.6 l | -10 °C | 1.7 l | 9.698 525 | 230 V, 50 Hz | ±0,5 °C | -10 ... 40 °C | F250 | 1.7 ... 2.6 l | 27 kg | 1.00 | |||
| 375 x 440 x 590 mm | 440 mm | 590 mm | 375 mm | IP 20 | Stainless steel | 40 °C | 230 V | 7.5 l | 0 °C | 5 l | 9.698 528 | 230 V, 50 Hz | ±0,5 °C | 0 ... 40 °C | F500 | 5 ... 7.5 l | 37 kg | 1.00 | |||
| 375 x 490 x 640 mm | 490 mm | 640 mm | 375 mm | IP 20 | Stainless steel | 40 °C | 230 V | 9.5 l | 0 °C | 7 l | 9.698 526 | 230 V, 50 Hz | ±0,5 °C | 0 ... 40 °C | F1000 | 7 ... 9.5 l | 45 kg | 1.00 |
