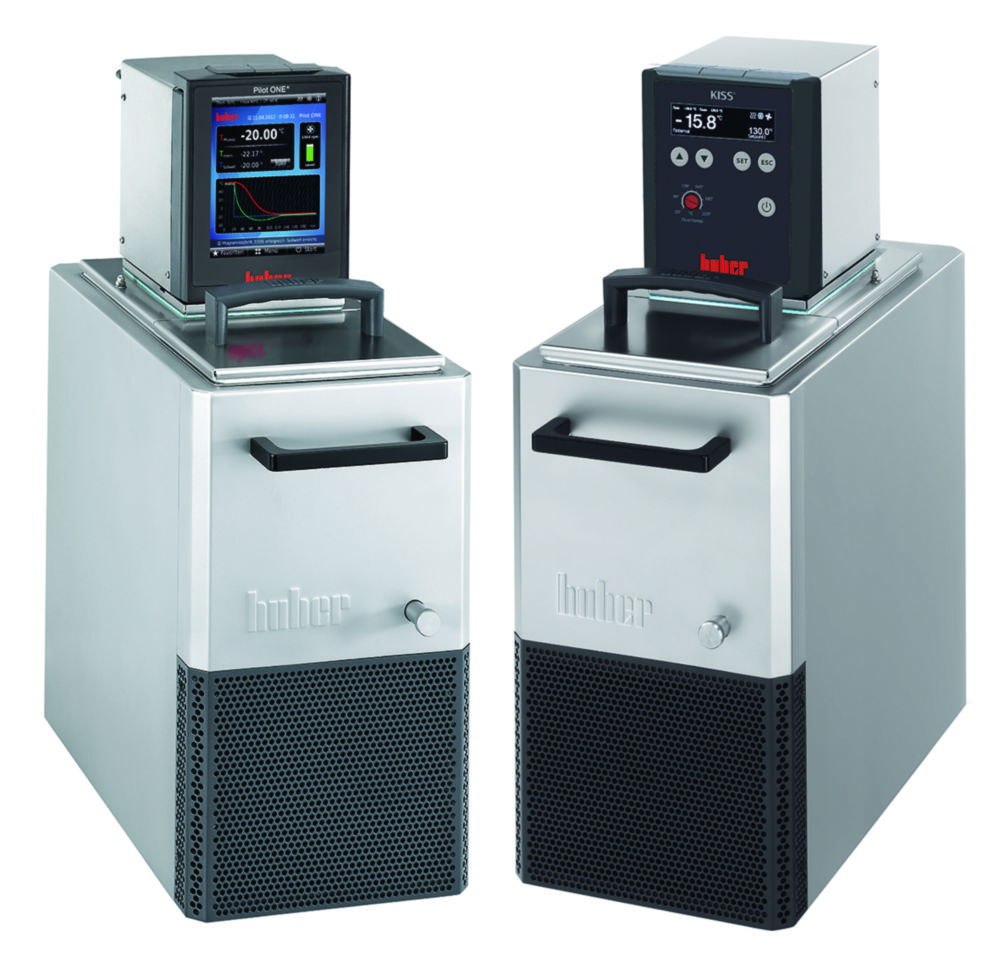

Refrigeration bath circulators CC-K6

The K6 models are compact cooling/heating bath thermostats for temperatures ranging from -25 to 200 °C. With the integrated circulation pump, the combinations can be used for both externally closed and externally open (with optional level control)temperature applications. The devices are equipped with overtemperature and low level protection. The electronic upgrade function “E-grade” allows a simple and cost-effective functional expansion at any time. All units use natural refrigerant as standard.

Powerful pressure/suction pump

Large and full colour 5.7″ TFT Touchscreen

Simple menu navigation in 13 languages

Programmer with calendar/clock functions

Ethernet, RS232 and USB interface

Pt100 external sensor connection

2-point calibration for control sensors

Safety class III (FL) acc. to DIN 12876

Toote variatsioonid

PK	Bath depth	Depth opening	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Heating capacity	Catalog number	IP code	Material bath	Max. flow rate	atr_llg_max_suction_capacity	atr_llg_max_suction_pressure	Max. temperature	Max. voltage	Max. volume bath	Min. temperature	Min. voltage	Operation	Power supply	Refrigerant	Temp. Stability	Temperature	Type	Type of display	Volume bath	Weight	Width opening	Kogus
1.00	150 mm	120 mm	210 x 400 x 546 mm	400 mm	546 mm	210 mm	2.1 kW	9.859 225	IP 20	Stainless steel		22 l/min	0.4 bar	200 °C	240 V	4.5 l	25 °C	208 V	Touchscreen	208 ... 240 V, 50/60 Hz	R290	±0,02 K	25 ... 200 °C	CC-K6s	TFT	4.5 l	25 kg	140 mm
1.00	150 mm	120 mm	210 x 400 x 546 mm	400 mm	546 mm	210 mm	2.1 kW	9.859 226	IP 20	Stainless steel		22 l/min	0.4 bar	200 °C	240 V	4.5 l	25 °C	208 V	Touchscreen	208 ... 240 V, 50/60 Hz	R290	±0,02 K	25 ... 200 °C	CC-K6	TFT	4.5 l	25 kg	140 mm
