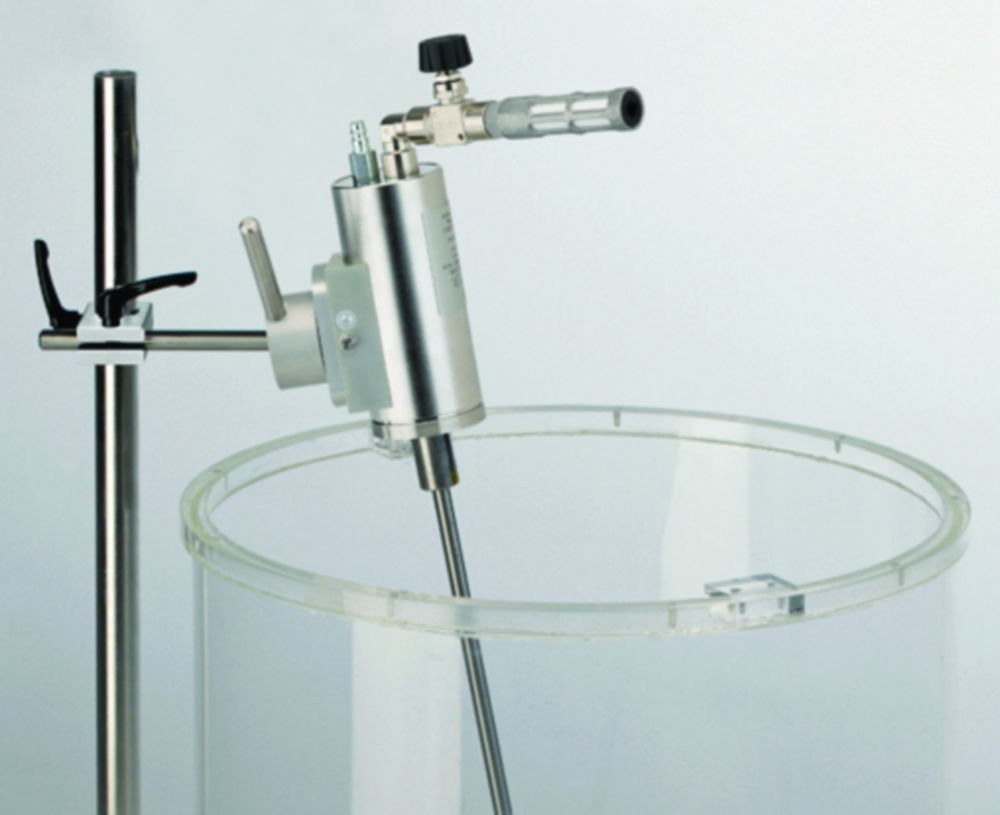

Compressed air industrial stirrers BSR 64 with floor stand

BSR series stirrers perform routine mixing tasks up to 200 l.

General specifications:

  • operating pressure max. 6 bar
  • air consumption 800 l/min. at 6 bar
  • power output 640 W at 6 bar
  • clockwise rotation
  • ATEX rating to Ex II 2G Ex h IIC T5 Gb

Basic models include:

  • all-stainless steel housing
  • continuously adjustable speed control valve
  • spherical clamping device with support arm diam. 16 mm, length 200 mm
  • floor stand with rod (height 1000 mm, width 600 mm) and bosshead
  • plug-in connector DN 7.8
  • silencer
  • output shaft L 32 mm x diam. 14 mm

Toote variatsioonid

ATEX certificationIdle speedMax. operating pressureMax. ViscosityNominal torqueOperating press barCatalog numberRated capacityTypePKKogus
Ex II 2G Ex h IIC T5 Gb1600 1/min6 bar20000 mPa·s4.7 Ncm6 bar9.779 163640 WBSR 64/160-A-V1.00
