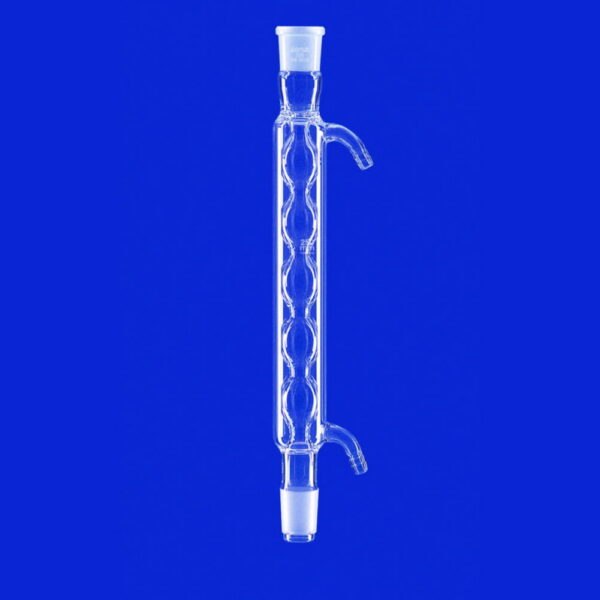

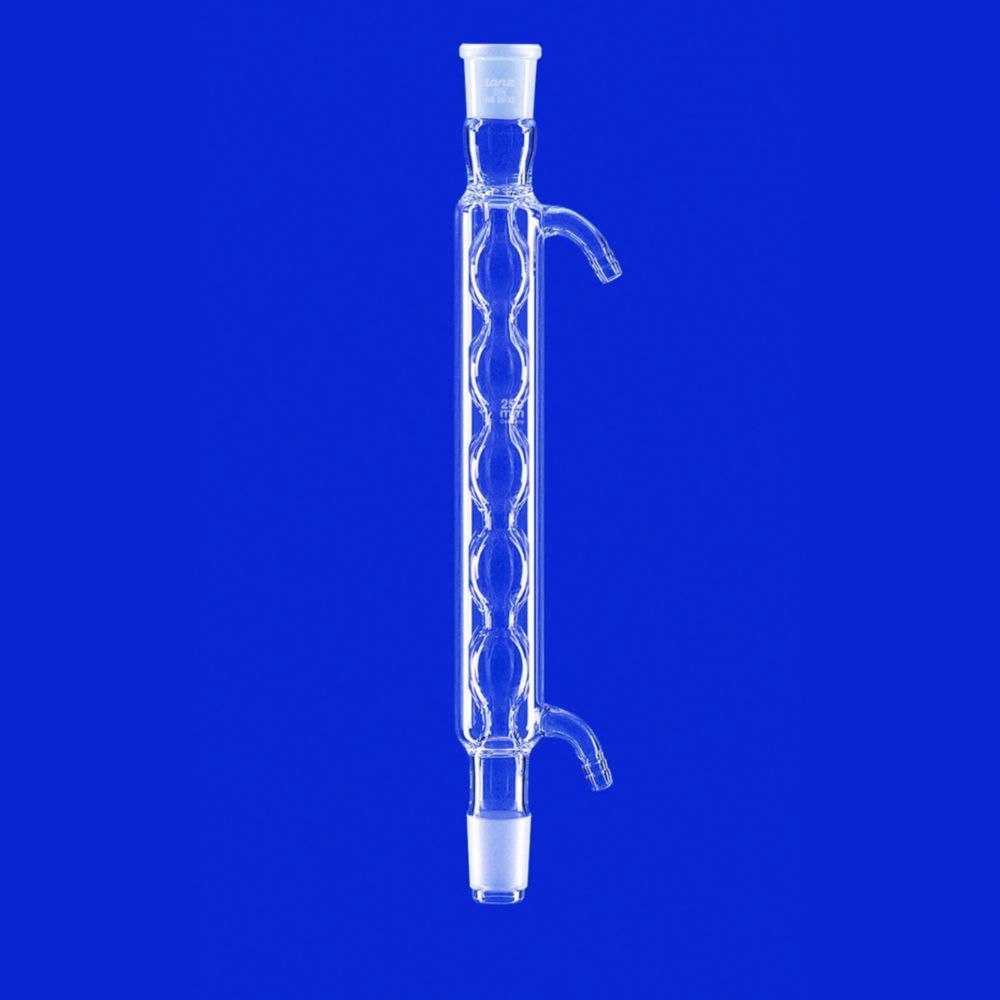

Condensers acc. to Allihn, DURAN® tubing
Allihn condensers acc. to DIN 12581 and in addition to DIN, for condensing vapours, with NS socket and NS cone, water connection with glass olives, made of DURAN® tubing
Toote variatsioonid
| Cooling surface | Ground size | Length jacket | Material | Catalog number | PK | Standard | Kogus | |
|---|---|---|---|---|---|---|---|---|
| 100 cm² | NS29/32 | 160 mm | DURAN® tubing | 6.203 391 | 1.00 | - | ||
| 300 cm² | NS24/29 | 400 mm | DURAN® tubing | 6.224 091 | 1.00 | - | ||
| 200 cm² | NS24/29 | 250 mm | DURAN® tubing | 6.225 025 | 1.00 | - | ||
| 200 cm² | NS19/26 | 250 mm | DURAN® tubing | 7.930 054 | 1.00 | - | ||
| 100 cm² | NS19/26 | 160 mm | DURAN® tubing | 7.930 053 | 1.00 | DIN 12581 | ||
| 100 cm² | NS24/29 | 160 mm | DURAN® tubing | 6.251 057 | 1.00 | - | ||
| 300 cm² | NS29/32 | 400 mm | DURAN® tubing | 7.019 316 | 1.00 | - | ||
| 200 cm² | NS14/23 | 250 mm | DURAN® tubing | 6.254 134 | 1.00 | - | ||
| 100 cm² | NS14/23 | 160 mm | DURAN® tubing | 6.256 242 | 1.00 | - | ||
| 200 cm² | NS29/32 | 250 mm | DURAN® tubing | 6.205 249 | 1.00 | DIN 12581 | ||
| 400 cm² | NS29/32 | 500 mm | DURAN® tubing | 7.631 268 | 1.00 | - |
