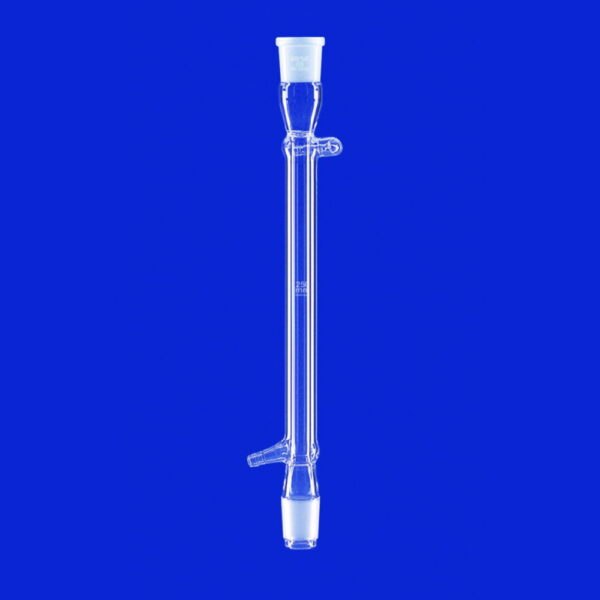

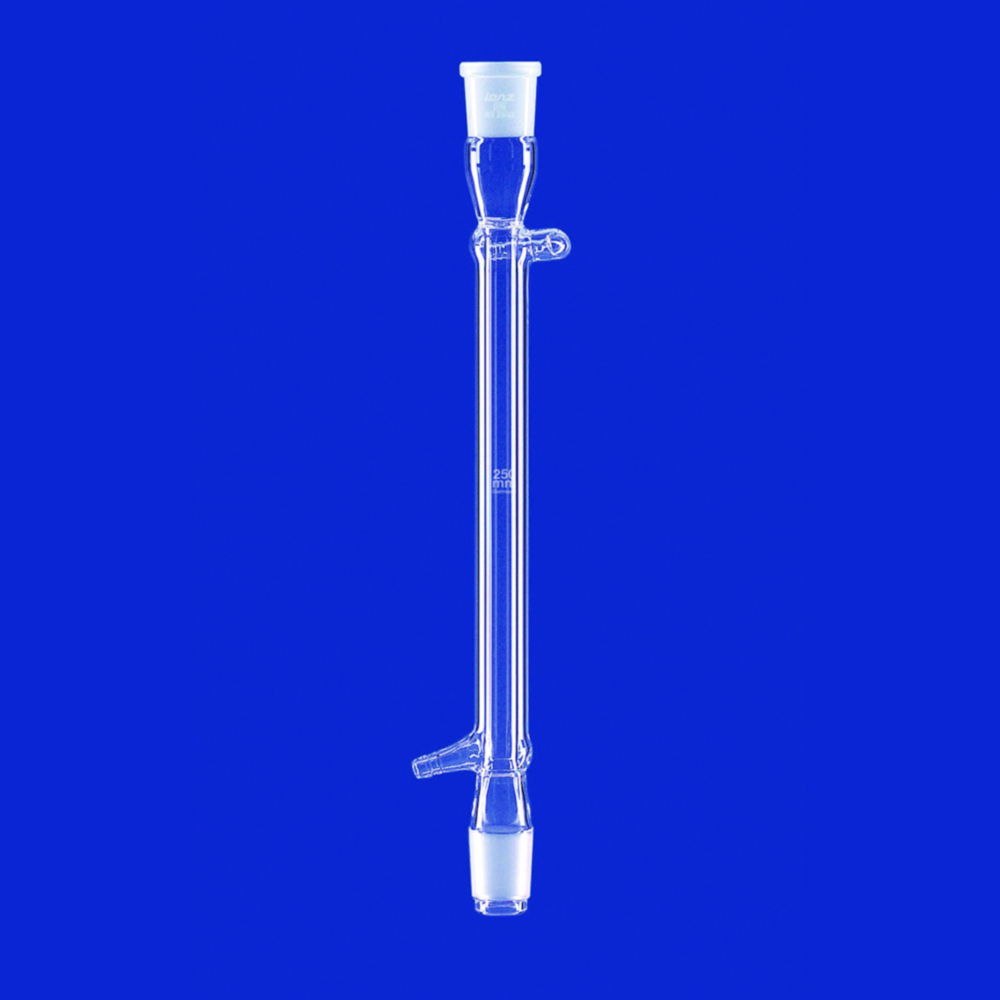

Condensers acc. to Liebig, DURAN® tubing, with glass olives
Made of DURAN® tubing. DIN 12576 and in addition to DIN standard. With NS cone and socket.
Toote variatsioonid
| Connection | Ground size | Material | Catalog number | PK | Standard | Cooling surface | Length jacket | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| Glass olive | NS29/32 | DURAN® tubing | 6.203 025 | 1.00 | DIN 12576 | 130 cm² | 250 mm | ||
| Glass olive | NS14/23 | DURAN® tubing | 6.203 027 | 1.00 | - | 100 cm² | 250 mm | ||
| Glass olive | NS19/26 | DURAN® tubing | 6.204 007 | 1.00 | DIN 12576 | 130 cm² | 250 mm | ||
| Glass olive | NS14/23 | DURAN® tubing | 6.203 028 | 1.00 | DIN 12576 | 60 cm² | 160 mm | ||
| Glass olive | NS19/26 | DURAN® tubing | 6.901 719 | 1.00 | DIN 12576 | 90 cm² | 160 mm | ||
| Glass olive | NS29/32 | DURAN® tubing | 7.672 721 | 1.00 | - | 270 cm² | 500 mm | ||
| Glass olive | NS29/32 | DURAN® tubing | 6.225 558 | 1.00 | DIN 12576 | 210 cm² | 400 mm | ||
| Glass olive | NS24/29 | DURAN® tubing | 7.019 306 | 1.00 | - | 130 cm² | 250 mm | ||
| Glass olive | NS14/23 | DURAN® tubing | 6.284 991 | 1.00 | - | 160 cm² | 400 mm | ||
| Glass olive | NS24/29 | DURAN® tubing | 6.241 821 | 1.00 | - | 210 cm² | 400 mm | ||
| Glass olive | NS19/26 | DURAN® tubing | 6.324 561 | 1.00 | - | 210 cm² | 400 mm | ||
| Glass olive | NS29/32 | DURAN® tubing | 7.980 871 | 1.00 | - | 400 cm² | 750 mm |
