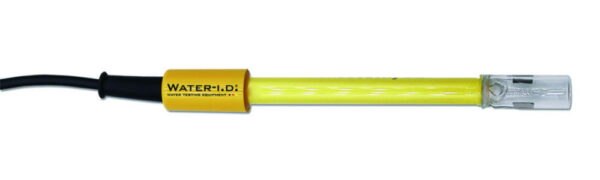

Conductivity cell probes, for PrimeLab 2.0
For conductivity measurements in the laboratory.
- With integrated temperature sensor
- For connecting to the ProbeBOX 1.0
Toote variatsioonid
| Material | Cell constant | Temperature sensor | Conductivity | Temp. range °C | Catalog number | PK | Electrode | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| glass | K = 1,0 | NTC 30kΩ | 0 ... 200 mS/cm | 0 ... 50 | 4.686 964 | 1.00 | 5×7 mm platinum plate/2 pole | ||
| plastic | K = 10,0 | NTC 30kΩ | 20 ... 2000 mS/cm | 0 ... 80 | 4.686 965 | 1.00 | 5×5 mm platinum ring/ 2 pole | ||
| plastic | K = 1,0 | NTC 30kΩ | 0 ... 200 mS/cm | 0 ... 50 | 4.686 967 | 1.00 | - |
