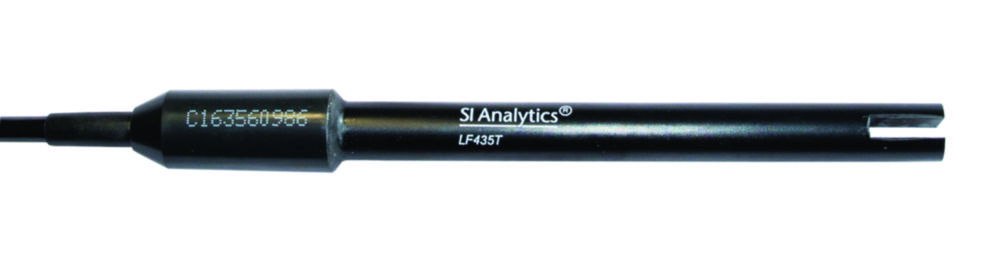

Conductivity measuring cells LF 435 T
With plastic shaft and internal temperature sensor NTC30 kOhm. Cable with 8-pole plug.
Conductivity measuring cells with 4 electrode technique for a large measuring range of 5 µS/cm to 500 mS/cm, low maintanance and easy cleaning. For general measurements.
- Excellent linearity over a wide measuring range, especially for high conductivity values
- Easy cleaning
- Long term stable cell constant through abrasion resistant, concentric graphite electrodes
- Integrated temperature sensor with short response time for automatic temperature compensation
Toote variatsioonid
| Cable length | Cell constant | Conductivity | Shaft length | Material shaft | Max. temperature | Min. temperature | Catalog number | Shaft Ø | Temperature | Temperature sensor | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.5 m | 0.33 1/cm | 120 mm | Plastic | 80 °C | 5 °C | 6.270 567 | 12 mm | 5 ... 80 °C | NTC 30 kOhm | LF 435 T | 1.00 |
