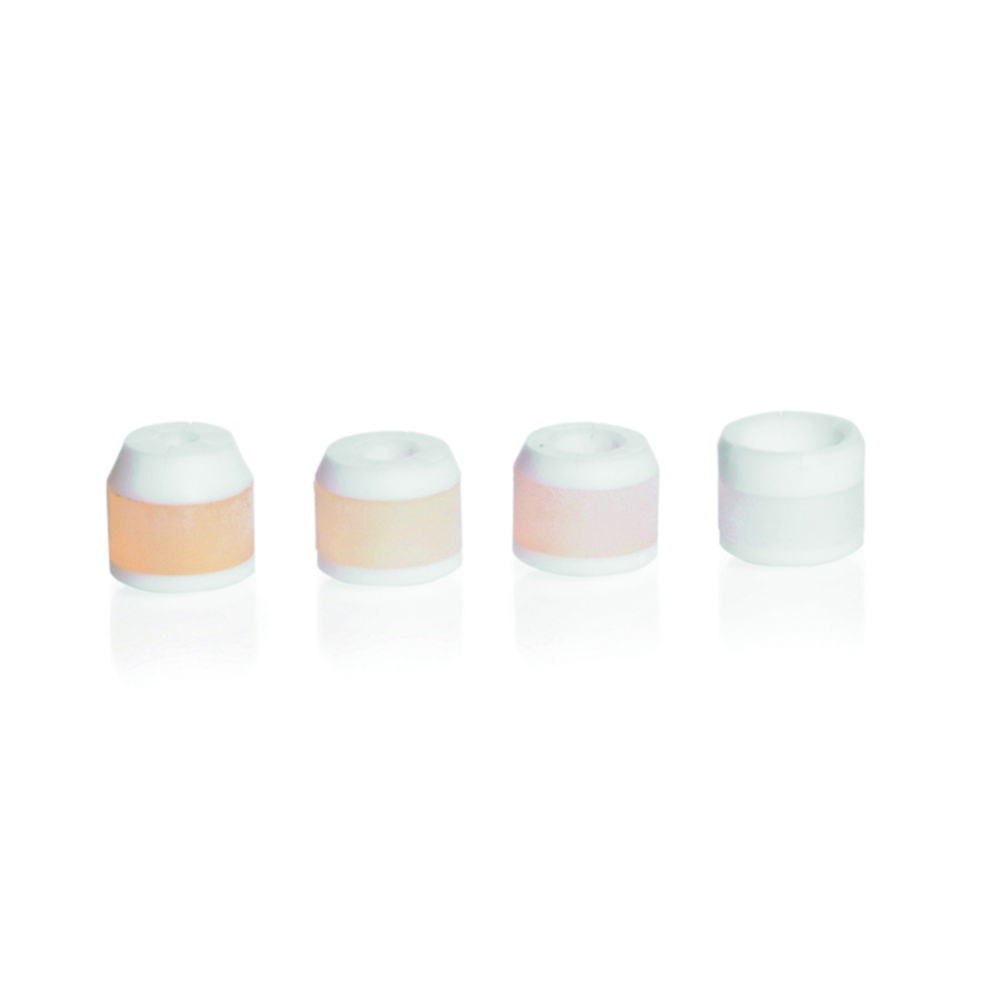

Connection system GLS 80®, insert for screw cap GL 18, silicone/PTFE
For safe transfer of liquid media within a closed and sterile system (evaporation is reduced). Flexible modular system. Different hose diameters can be connected. Sterile pressure equalisation is possible through use of membrane filter. Unused ports can be provided with a blind cap.
- Autoclavable
- Maximum temperature 140 °C
Toote variatsioonid
| Autoclavable | Bore | Ø | Height | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|
| Yes | 8.0 mm | 16 mm | 13 mm | 9.284 535 | 1.00 | ||
| Yes | 10.0 mm | 16 mm | 13 mm | 9.284 536 | 1.00 | ||
| Yes | 3.2 mm | 16 mm | 15 mm | 9.284 533 | 1.00 | ||
| Yes | 6.0 mm | 16 mm | 15 mm | 9.284 534 | 1.00 | ||
| Yes | 12.0 mm | 16 mm | 13 mm | 9.284 537 | 1.00 |
