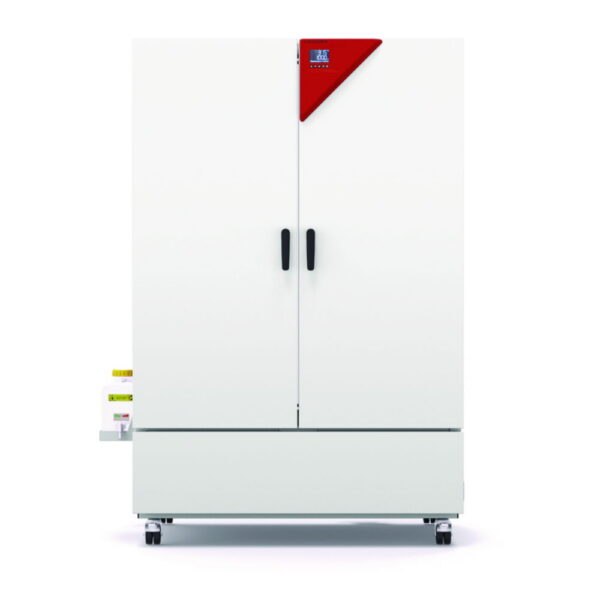

Constant climate chambers KBF-S ECO
Constant climate chambers for long-term tests and accelerated stability tests of pharmaceutical products according to the ICH guideline Q1A. Particularly energy-efficient and low-noise thanks to Peltier technology with patented heat dissipation.
- Homogeneous climate even with full load
- Electronically controlled APT.line™ preheating chamber technology
- Temperatures up to 28 °C below ambient temperature possible
- Inner chamber made completely of stainless steel
- 2 stainless steel grids incl. shelf support
- Access port with silicone plug Ø 30 mm, left side
- Unit self-test for comprehensive status analysis
- LCD display for indication of temperature, humidity, alarms and additional information
- Internal data logger with USB interface
- Independent water supply via canisters
Toote variatsioonid
| Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | Material inserts | Material interior | Max. no. of inserts | Max. temperature | Max. voltage | Min. temperature | Min. voltage | Nominal capacity | Catalog number | Plug type | Power supply | Rated capacity | Temp. Stability | Temperature | Type | Weight | With CO2 control | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 485 mm | 932 x 796 x 1461 mm | 796 mm | 1461 mm | 932 mm | 785 mm | 650 x 485 x 785 mm | 650 mm | Stainless steel | Stainless steel | 9 | 70 °C | 230 V | 0 °C | 200 V | 247 l | 4.684 346 | EU | 200 ... 230 V, 50/60 Hz | 0.8 kW | ±0,1 K (25 °C) | 0 ... 70 °C | KBF-S ECO 240 | 146 kg | No | 1.00 | ||
| 576 mm | 1,254 x 885 x 1925 mm | 885 mm | 1925 mm | 1254 mm | 1250 mm | 973 x 576 x 1250 mm | 973 mm | Stainless steel | Stainless steel | 15 | 70 °C | 230 V | 0 °C | 200 V | 700 l | 4.684 348 | EU | 200 ... 230 V, 50/60 Hz | 1.2 kW | ±0,1 K (25 °C) | 0 ... 70 °C | KBF-S ECO 720 | 267 kg | No | 1.00 | ||
| 836 mm | 1,254 x 1,146 x 1925 mm | 1146 mm | 1925 mm | 1254 mm | 1250 mm | 973 x 836 x 1250 mm | 973 mm | Stainless steel | Stainless steel | 15 | 70 °C | 230 V | 0 °C | 200 V | 1020 l | 4.684 350 | EU | 200 ... 230 V, 50/60 Hz | 1.2 kW | ±0,1 K (25 °C) | 0 ... 70 °C | KBF-S ECO 1020 | 322 kg | No | 1.00 | ||
| 485 mm | 925 x 796 x 1946 mm | 796 mm | 1946 mm | 925 mm | 1268 mm | 650 x 485 x 1268 mm | 650 mm | Stainless steel | Stainless steel | 15 | 70 °C | 230 V | 0 °C | 200 V | 400 l | 4.687 511 | EU | 200 ... 230 V, 50/60 Hz | 1.1 kW | ±0,1 K (25 °C) | 0 ... 70 °C | KBF-S ECO 400 | 192 kg | No | 1.00 | ||
| 576 mm | 1,254 x 885 x 1925 mm | 885 mm | 1925 mm | 1254 mm | 1250 mm | 973 x 576 x 1250 mm | 973 mm | Stainless steel | Stainless steel | 15 | 70 °C | 120 V | 0 °C | 100 V | 700 l | 4.684 349 | US | 100 ... 120 V, 50/60 Hz | 1.2 kW | ±0,1 K (25 °C) | 0 ... 70 °C | KBF-S ECO 720UL | 267 kg | No | 1.00 | ||
| 485 mm | 932 x 796 x 1461 mm | 796 mm | 1461 mm | 932 mm | 785 mm | 650 x 485 x 785 mm | 650 mm | Stainless steel | Stainless steel | 9 | 70 °C | 120 V | 0 °C | 100 V | 247 l | 4.684 347 | US | 100 ... 120 V, 50/60 Hz | 0.8 kW | ±0,1 K (25 °C) | 0 ... 70 °C | KBF-S ECO 240UL | 146 kg | No | 1.00 | ||
| 836 mm | 1,254 x 1,146 x 1925 mm | 1146 mm | 1925 mm | 1254 mm | 1250 mm | 973 x 836 x 1250 mm | 973 mm | Stainless steel | Stainless steel | 15 | 70 °C | 120 V | 0 °C | 100 V | 1020 l | 4.684 351 | US | 100 ... 120 V, 50/60 Hz | 1.2 kW | ±0,1 K (25 °C) | 0 ... 70 °C | KBF-S ECO 1020UL | 322 kg | No | 1.00 | ||
| 485 mm | 925 x 796 x 1946 mm | 796 mm | 1946 mm | 925 mm | 1268 mm | 650 x 485 x 1268 mm | 650 mm | Stainless steel | Stainless steel | 15 | 70 °C | 120 V | 0 °C | 100 V | 400 l | 4.687 510 | US | 100 ... 120 V, 50/60 Hz | 1.1 kW | ±0,1 K (25 °C) | 0 ... 70 °C | KBF-S ECO 400UL | 192 kg | No | 1.00 |
