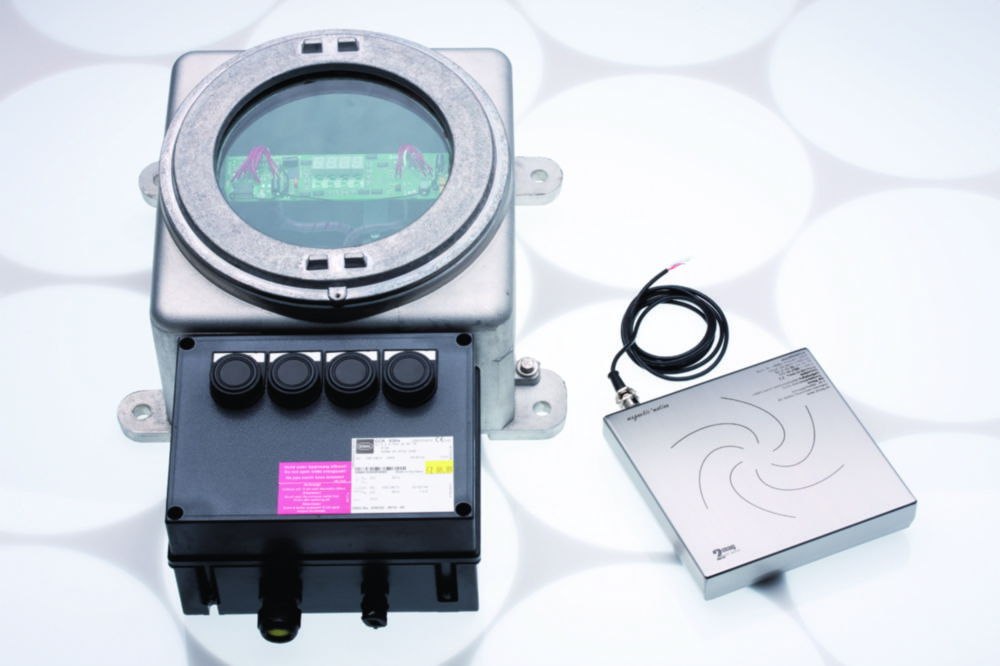

Control unit atexMIXcontrol
Explosion-protected control unit with digital display for speed and power setting is suitable for operation in explosion protection zone 1.
- Jerk-free stirring even at low speeds
- 4-step power setting
- SoftStart
- QuickSet for quick setting of the start or maximum speed
- Memory function to save the last settings
- Certified according to ATEX II 2G Ex db eb IIC T6 Gb
The control unit and agitator drive are firmly connected to each other to ensure Ex protection.
Toote variatsioonid
| Depth | Display | Height | IP code | Material housing | Max. speed | Min. speed | Catalog number | Plug type | Rated capacity | Type | Weight | Width | PK | With timer | Max. voltage | Min. voltage | Dimensions (WxDxH) | Power supply | Speed | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 460 mm | Digital | 200 mm | IP 65 | Die-cast aluminium | 2000 1/min | 100 1/min | 6.238 006 | EU | 20 W | atexMIXcontrol | 15 kg | 360 mm | 1.00 | No | 240 V | 100 V | 360 x 460 x 200 mm | 100 ... 240 V, 50 ... 60 Hz Hz | 100 ... 2000 1/min |
