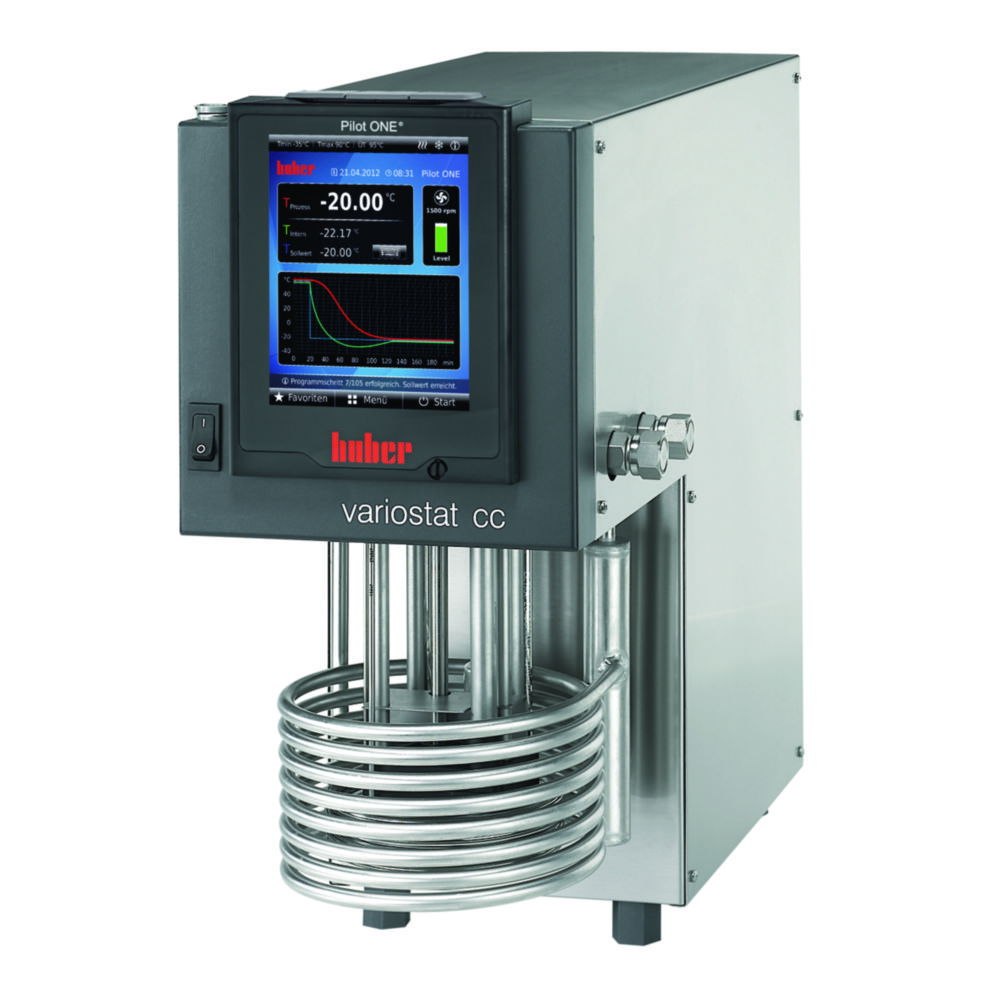

Cooling circulator Variostat® for a variety of baths
This unique immersion circulator can thermoregulate a wide range of baths between -30°C and 150°C. This innovative construction allows the user ultimate flexibility. The circulation can be adjusted to suit the bath size using the stepless, variable speed suction/pressure pump. The pump can also be controlled with an optional pressure sensor for external applications.
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Heating capacity | Height | IP code | Max. flow rate | atr_llg_max_suction_capacity | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Min. temperature | Min. voltage | Operation | Catalog number | Power supply | Temp. Stability | Temperature | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 465 mm | 183 x 465 x 416 mm | 1 kW | 416 mm | IP 20 | 18.5 l/min | 0.4 bar | 150 °C | 240 V | -30 °C | 220 V | Touchscreen | 9.859 231 | 220 ... 240 V, 50/60 Hz | ±0,02 K | -30 ... 150 °C | Variostat® | 24 kg | 183 mm | 1.00 |
