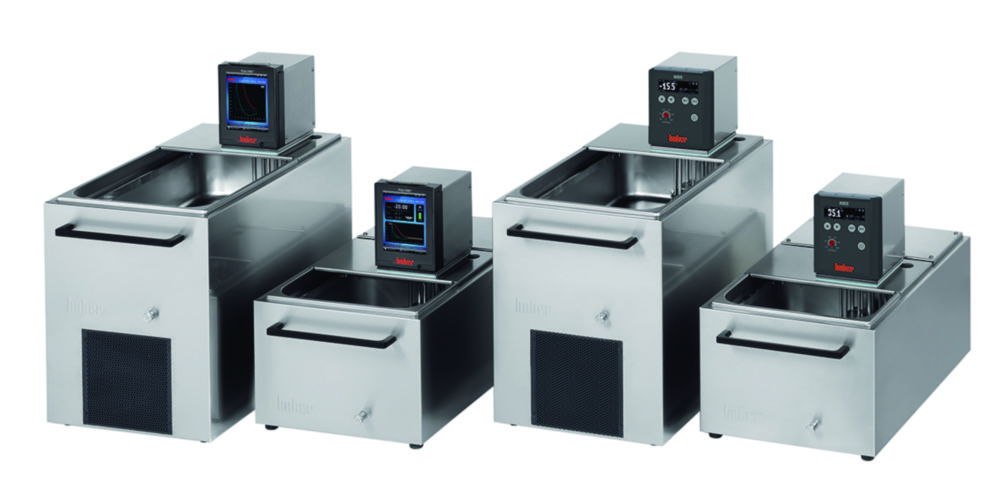

Cooling circulators CC
Combinations of immersion thermostats with insulated cooling baths are cost-effective solutions for object temperature control in a bath at temperatures ranging from -20/-30 to 200 °C. The cooling baths operate with a natural refrigerant. With a pump adapter, the combinations can be used for both externally closed and externally open (with optional level control) temperature applications. The devices are equipped with overtemperature and low level protection. The electronic upgrade function “E-grade” allows a simple and cost-effective functional expansion at any time.
- Powerful pressure/suction pump
- Large and full colour 5.7″ TFT Touchscreen
- Simple menu navigation in 13 languages
- Programmer with calendar/clock functions
- Ethernet, RS232 and USB interface
- Pt100 external sensor connection
- 2-point calibration for control sensors
- Safety class III (FL) acc. to DIN 12876
Toote variatsioonid
| Catalog number | PK | Bath depth | Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Material bath | Max. flow rate | atr_llg_max_suction_capacity | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Min. voltage | Operation | Power supply | Refrigerant | Temp. Stability | Temperature | Type | Type of display | Volume bath | Weight | Width opening | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.859 228 | 1.00 | 200 mm | 152 mm | 350 x 560 x 430 mm | 560 mm | 430 mm | 350 mm | 2.1 kW | IP 20 | Stainless steel | 22 l/min | 0.4 bar | 200 °C | 240 V | 15 l | -20 °C | 220 V | Touchscreen | 220 ... 240 V, 50/60 Hz | R290 | ±0,02 K | 20 ... 200 °C | CC-K15 | TFT | 15 l | 28 kg | 290 mm | |||
| 9.859 229 | 1.00 | 150 mm | 329 mm | 350 x 555 x 615 mm | 555 mm | 615 mm | 350 mm | 2.1 kW | IP 20 | Stainless steel | 22 l/min | 0.4 bar | 200 °C | 240 V | 17 l | -30 °C | 220 V | Touchscreen | 220 ... 240 V, 50/60 Hz | R290 | ±0,02 K | -30 ... 200 °C | CC-K20 | TFT | 17 l | 41 kg | 290 mm | |||
| 9.859 230 | 1.00 | 200 mm | 329 mm | 350 x 555 x 615 mm | 555 mm | 615 mm | 350 mm | 2.1 kW | IP 20 | Stainless steel | 22 l/min | 0.4 bar | 200 °C | 240 V | 23.5 l | -30 °C | 220 V | Touchscreen | 220 ... 240 V, 50/60 Hz | R290 | ±0,02 K | -30 ... 200 °C | CC-K25 | TFT | 23.5 l | 41 kg | 290 mm | |||
| 9.859 227 | 1.00 | 150 mm | 152 mm | 350 x 560 x 430 mm | 560 mm | 430 mm | 350 mm | 2.1 kW | IP 20 | Stainless steel | 22 l/min | 0.4 bar | 200 °C | 240 V | 10.5 l | -20 °C | 220 V | Touchscreen | 220 ... 240 V, 50/60 Hz | R290 | ±0,02 K | 20 ... 200 °C | CC-K12 | TFT | 10.5 l | 29 kg | 290 mm |
