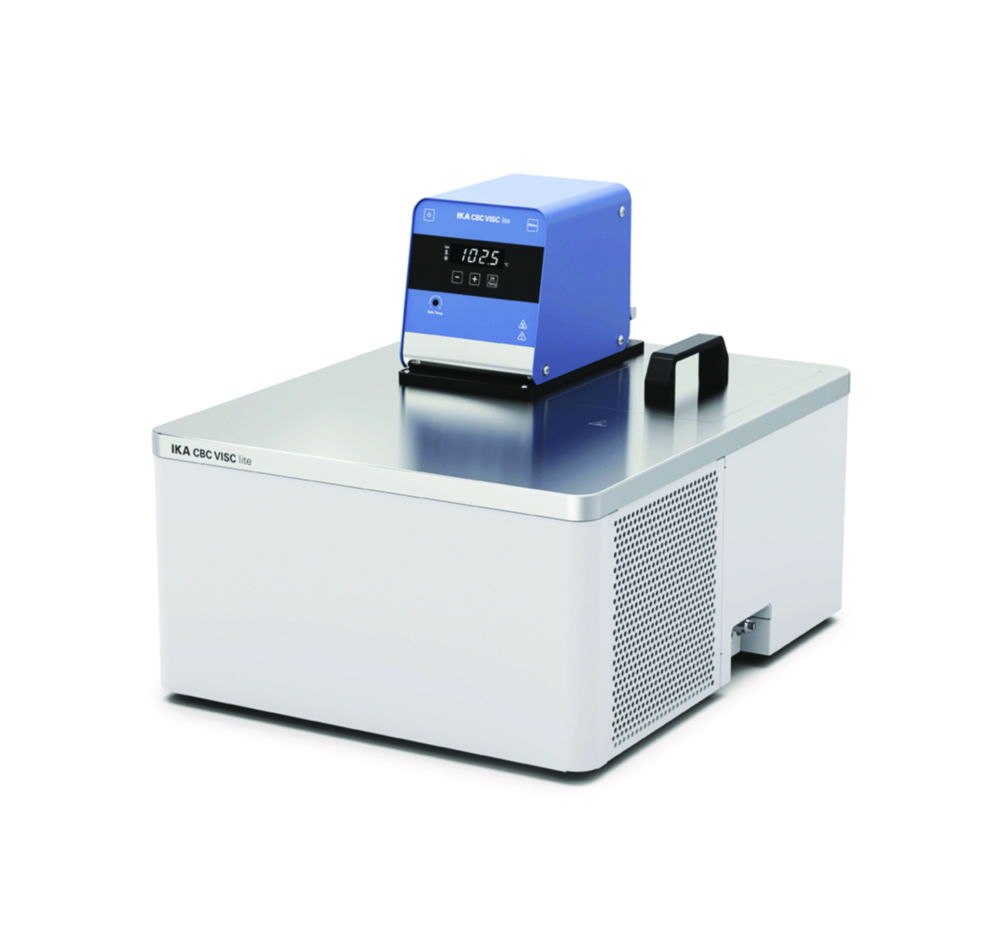

Cooling/heating bath circulator CBC visc lite

Designed for combination with the IKA ROTAVISC viscometers and covers a wide temperature range.

A second beaker (600 ml) can be pre-tempered during the measurement
Optimised water flow management in the insulated bath for fast and precise temperature control.
Equipped with environmentally friendly natural refrigerant R290
External pump connection for heating standard vessels according to DIN for absolute viscosity definition with ELVAS spindles or double-walled beakers
Easy to maintain thanks to easily removable and therefore easy-to-clean air filters

Toote variatsioonid

Depth opening	Ext. depth	Ext. height	Ext. width	Heating capacity	IP code	Max. temperature	Max. voltage	Min. temperature	Operation	Catalog number	Plug type	Temp. Stability	Type	Type of display	Weight	Width opening	With lid	With timer	PK	atr_llg_max_suction_pressure	Max. volume bath	atr_llg_min_volume_bath	External dimensions (WxDxH)	Power supply	Temperature	Volume bath
218 mm	506 mm	392 mm	414 mm	2000 W	IP 21	125 °C	230 V	25 °C	Membrane keyboard	4.699 373	EU	±0,05 K	CBC VISC lite	LED	29 kg	150 mm	Yes	No	1.00	0.15 bar	8.5 l	5.5 l	414 x 506 x 392 mm	230 V, 50...60 Hz	-25 ... 125 °C	5.5 ... 8.5 l
218 mm	506 mm	392 mm	414 mm	2000 W	IP 21	125 °C	230 V	25 °C	Membrane keyboard	4.699 405	UK	±0,05 K	CBC VISC lite	LED	29 kg	150 mm	Yes	No	1.00	0.15 bar	8.5 l	5.5 l	414 x 506 x 392 mm	230 V, 50...60 Hz	-25 ... 125 °C	5.5 ... 8.5 l
218 mm	506 mm	392 mm	414 mm	2000 W	IP 21	125 °C	230 V	25 °C	Membrane keyboard	4.699 425	CH	±0,05 K	CBC VISC lite	LED	29 kg	150 mm	Yes	No	1.00	0.15 bar	8.5 l	5.5 l	414 x 506 x 392 mm	230 V, 50...60 Hz	-25 ... 125 °C	5.5 ... 8.5 l
