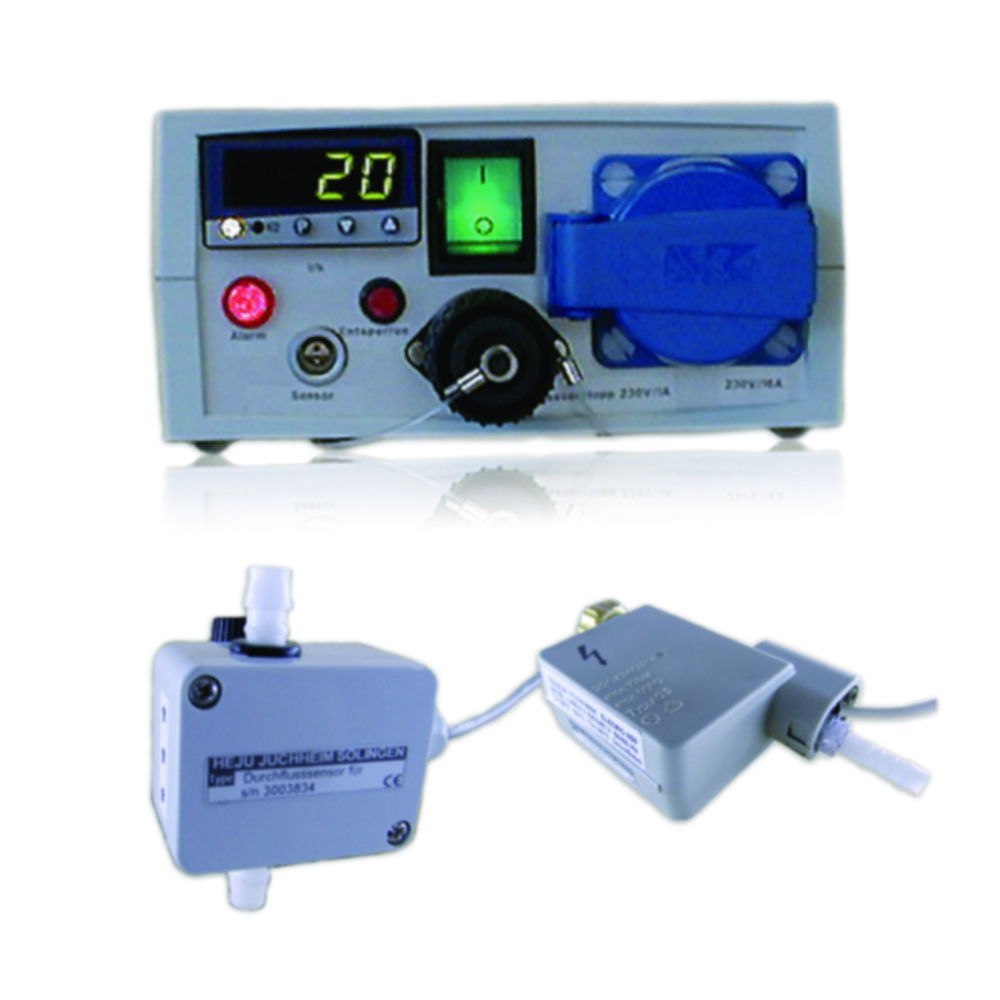

Cooling water relay LKR 3000
The device is used for moitoring cooling water circuits. Because of the high braking capacity thermostats and cryostats are also connectable. A reliable water flow sensor.
- Adjustment: min. 10 l/h up to max. 250 l/h
- Breaking capacity: 16 A/230 V for consumer load, 1 A/230 V for magnetic valve
Toote variatsioonid
| Catalog number | PK | Depth | Dimensions (WxDxH) | Height | Max. voltage | Power supply | Type | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9.234 295 | 1.00 | 130 mm | 160 x 130 x 82 mm | 82 mm | 230 V | 230 V, 50 Hz , 16 A | LKR 3000 | 160 mm |
