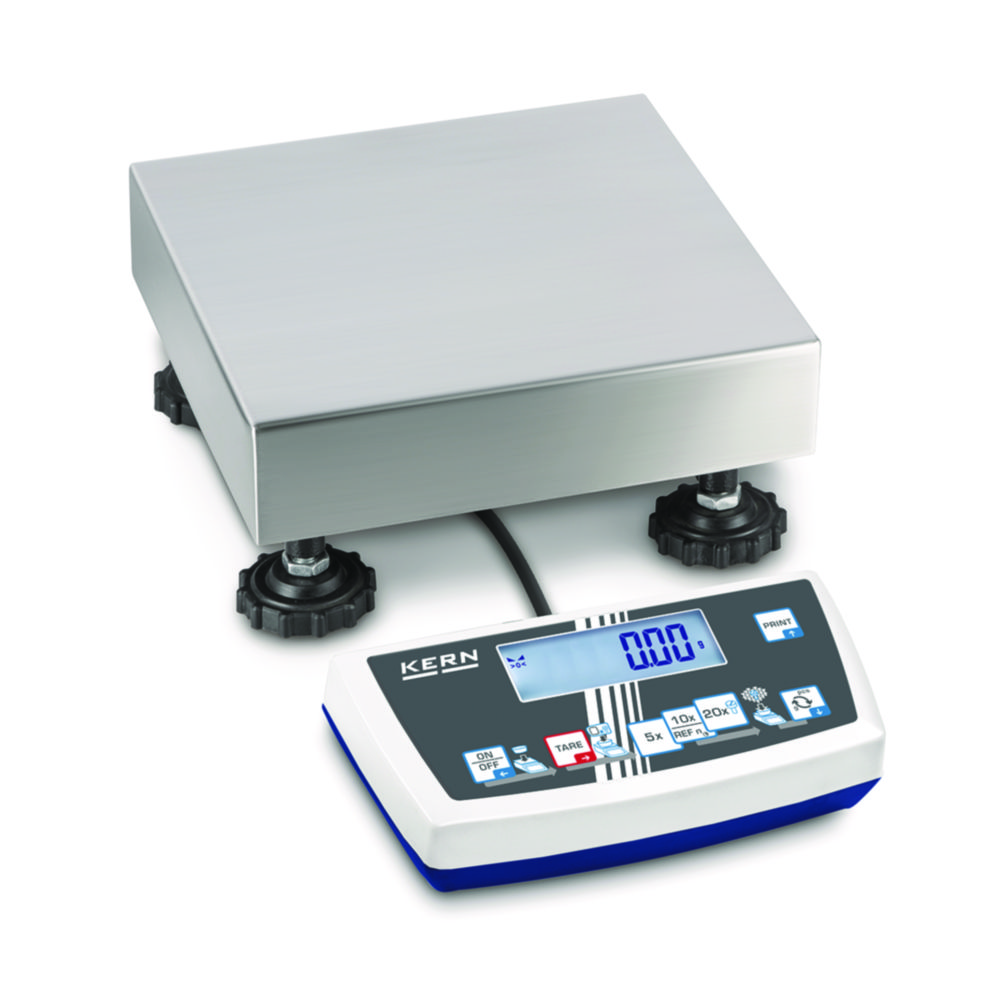

Counting scales CDS, IoT-Line
Industrial counting scale for heavy loads. KERN Universal Port (KUP) permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet, for the exchange of data and control commands. The KERN Communication Protocol (KCP) enables searching and remote control of the balance using external control devices or computers.
- Backlit LCD display
- Counting resolution up to 300,000 points
- Visualised process avoids operating errors
- Dimensions of display device (W×D×H): 225×115×60 mm
Toote variatsioonid
| Adjusting program | Depth weighing plate | Max. load | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Readability | Reproducibility | Type | Waranty | Weighing plate (WxD) | Weight | Width weighing plate | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | 318 mm | 30 kg | 240 V·AC | 100 V | 6.254 824 | EU/CH/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0,1 g | 0,2 g | CDS 30K0.1 | 3 years | 308 x 318 mm | 8 kg | 308 mm | 1.00 | ||
| External | 400 mm | 30 kg | 240 V·AC | 100 V | 4.660 093 | EU/CH/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0,1 g | 0,2 g | CDS 30K0.1L | 3 years | 500 x 400 mm | 19 kg | 500 mm | 1.00 | ||
| External | 318 mm | 15 kg | 240 V·AC | 100 V | 4.660 091 | EU/CH/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0,05 g | 0,1 g | CDS 15K0.05 | 3 years | 308 x 318 mm | 8 kg | 308 mm | 1.00 | ||
| External | 318 mm | 16 kg | 240 V·AC | 100 V | 4.660 092 | EU/CH/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0,1 g | 0,1 g | CDS 16K0.1 | 3 years | 308 x 318 mm | 8 kg | 308 mm | 1.00 | ||
| External | 400 mm | 60 kg | 240 V·AC | 100 V | 4.660 095 | EU/CH/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0,2 g | 0,4 g | CDS 60K0.2 | 3 years | 500 x 400 mm | 19 kg | 500 mm | 1.00 | ||
| External | 400 mm | 36 kg | 240 V·AC | 100 V | 4.660 094 | EU/CH/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0,2 g | 0,2 g | CDS 36K0.2L | 3 years | 500 x 400 mm | 19 kg | 500 mm | 1.00 | ||
| External | 228 mm | 4 kg | 240 V·AC | 100 V | 4.709 433 | EU/CH/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0.02 g | 0.04 g | CDS 4K0.02 | 3 years | 228 x 228 mm | 8 kg | 228 mm | 1.00 |
