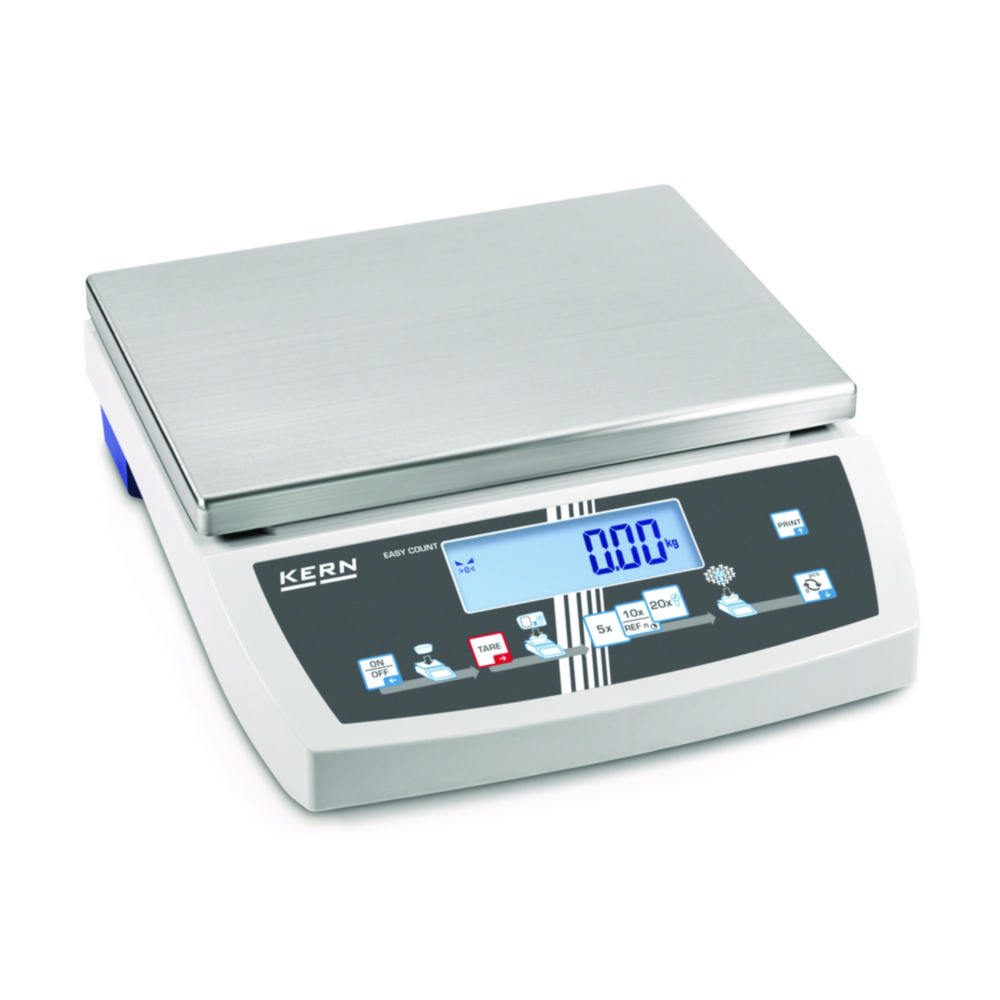

Counting scales CKE, IoT-Line
The KERN Universal Port (KUP) permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet, for the exchange of data and control commands, without any installation outlay. The KERN Communication Protocol (KCP) enables searching and remote control of the balance using external control devices or computers.
- Large backlit LCD display
- Counting resolution up to 360000 points
- Battery operation possible
Scope of supply: Counting scale, protective working cover
Toote variatsioonid
| Adjusting program | Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Max. load | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Readability | Reproducibility | Type | Waranty | Weighing plate (WxD) | Weight | Width | Width weighing plate | With draft shield | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | 245 mm | 130 mm | 163 x 245 x 65 mm | 65 mm | 36 kg | 240 V | 100 V | 7.661 653 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 0.01 g | 0.01 g | CKE 3600-2 | 2 years | 130 x 130 mm | 1.6 kg | 163 mm | 130 mm | No | 1.00 | ||
| External | 390 mm | 240 mm | 350 x 390 x 120 mm | 120 mm | 6 kg | 240 V·AC | 110 V | 6.251 563 | EU/UK/CH/US/AUS | 110 ... 240 V·AC, 50/60 Hz | 0.02 g | 0.02 g | CKE 6K0.02 | 3 years | 340 x 240 mm | 6 kg | 350 mm | 340 mm | No | 1.00 | ||
| External | 245 mm | 82 mm | 163 x 245 x 65 mm | 65 mm | 0,36 kg | 240 V | 100 V | 6.266 475 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 0.001 g | 0.001 g | CKE 360-3 | 2 years | Ø 82 mm | 0.85 kg | 163 mm | - | Yes | 1.00 | ||
| External | 390 mm | 240 mm | 350 x 390 x 120 mm | 120 mm | 65 kg | 240 V·AC | 100 V | 6.284 067 | EU/CH/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0,2 g | 0,4 g | CKE 65K0.2 | 3 years | 340 x 240 mm | 7 kg | 350 mm | 340 mm | No | 1.00 | ||
| External | 390 mm | 240 mm | 350 x 390 x 120 mm | 120 mm | 16 kg | 240 V·AC | 100 V | 7.658 328 | EU/CH/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0,05 g | 0,1 g | CKE 16K0.05 | 3 years | 340 x 240 mm | 7 kg | 350 mm | 340 mm | No | 1.00 | ||
| External | 390 mm | 240 mm | 350 x 390 x 120 mm | 120 mm | 8 kg | 240 V·AC | 100 V | 7.624 249 | EU/CH/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0,05 g | 0,05 g | CKE 8K0.05 | 3 years | 340 x 240 mm | 7 kg | 350 mm | 340 mm | No | 1.00 | ||
| External | 390 mm | 240 mm | 350 x 390 x 120 mm | 120 mm | 16 kg | 240 V·AC | 100 V | 6.262 161 | EU/CH/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0,1 g | 0,1 g | CKE 16K0.1 | 3 years | 340 x 240 mm | 7 kg | 350 mm | 340 mm | No | 1.00 | ||
| External | 390 mm | 240 mm | 350 x 390 x 120 mm | 120 mm | 36 kg | 240 V·AC | 110 V | 6.288 586 | EU/CH/UK/US | 110 ... 240 V·AC, 50/60 Hz | 0,1 g | 0,1 g | CKE 36K0.1 | 3 years | 340 x 240 mm | 7 kg | 350 mm | 340 mm | No | 1.00 |
