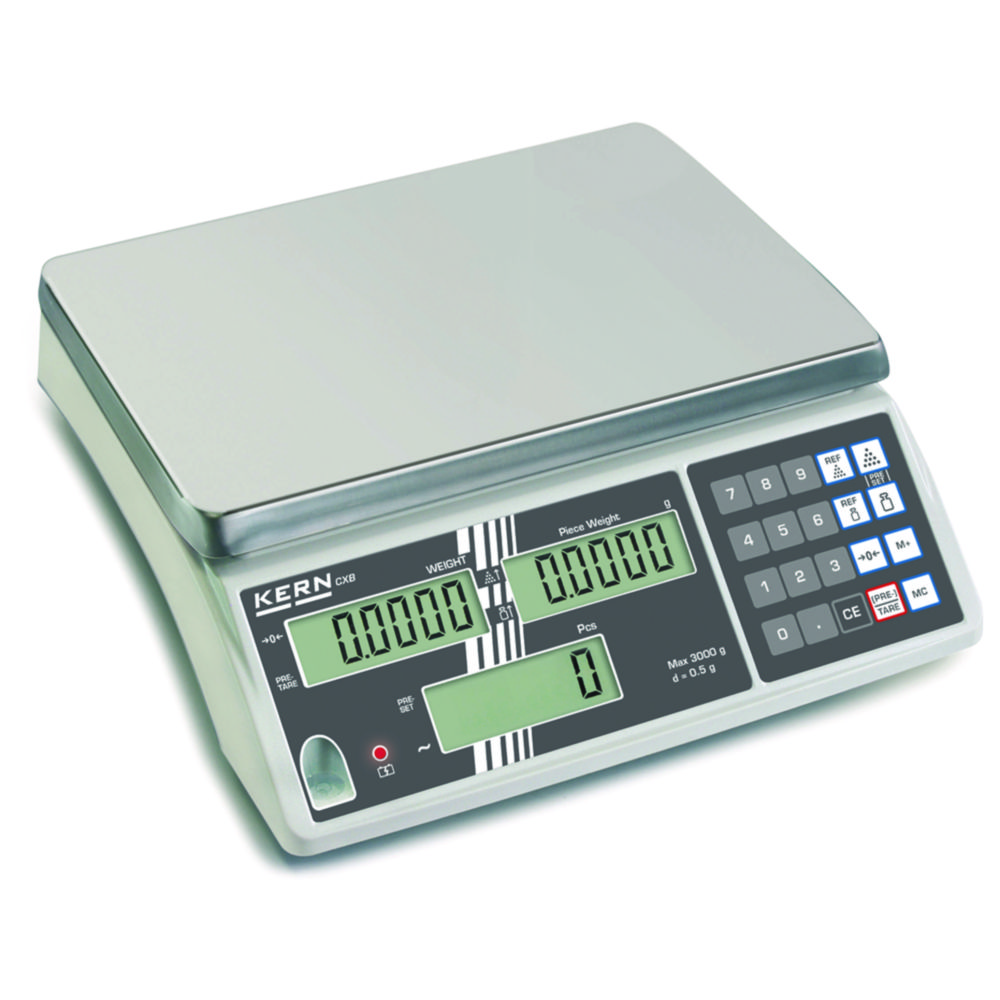

Counting scales CXB
- Three backlit LCD displays for weight display, reference weight, total pieces
- Counting resolution up to 30000 points
- Programmable using numerical key pad
- 10 memories for reference weights
- Integrated ESD protection
- Energy management: Backlight turns off after 5 sec
Scope of supply: Counting scale, protective working cover
Toote variatsioonid
| Adjusting program | Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Max. load | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Readability | Reproducibility | Type | Verified calibration | Waranty | Weighing plate (WxD) | Weight | Width | Width weighing plate | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | 330 mm | 225 mm | 300 x 330 x 110 mm | 110 mm | 6 kg | 240 V·AC | 220 V | 4.660 115 | EU | 220 ... 240 V·AC, 50 Hz | 2 g | 2 g | CXB 6K2NM | Verifiable | 2 years | 300 x 225 mm | 4.0 kg | 300 mm | 300 mm | 1.00 | ||
| External | 330 mm | 225 mm | 300 x 330 x 110 mm | 110 mm | 15 kg | 240 V·AC | 220 V | 4.660 113 | EU | 220 ... 240 V·AC, 50 Hz | 5 g | 5 g | CXB 15K5NM | Verifiable | 2 years | 300 x 225 mm | 3.8 kg | 300 mm | 300 mm | 1.00 | ||
| External | 330 mm | 225 mm | 300 x 330 x 110 mm | 110 mm | 3 kg | 240 V·AC | 220 V | 4.660 114 | EU | 220 ... 240 V·AC, 50 Hz | 0.2 g | 0.2 g | CXB 3K0.2 | Not verifiable | 2 years | 300 x 225 mm | 4.0 kg | 300 mm | 300 mm | 1.00 | ||
| External | 330 mm | 225 mm | 300 x 330 x 110 mm | 110 mm | 30 kg | 240 V·AC | 220 V | 6.230 308 | EU | 220 ... 240 V·AC, 50 Hz | 2 g | 2 g | CXB 30K2 | Not verifiable | 2 years | 300 x 225 mm | 4.0 kg | 300 mm | 300 mm | 1.00 | ||
| External | 330 mm | 225 mm | 300 x 330 x 110 mm | 110 mm | 30 kg | 240 V·AC | 220 V | 7.940 394 | EU | 220 ... 240 V·AC, 50 Hz | 1,0 g | 1,0 g | CXB 30K10NM | Verifiable | 2 years | 300 x 225 mm | 4.0 kg | 300 mm | 300 mm | 1.00 | ||
| External | 330 mm | 225 mm | 300 x 330 x 110 mm | 110 mm | 6 kg | 240 V·AC | 220 V | 6.232 147 | EU | 220 ... 240 V·AC, 50 Hz | 0.5 g | 0.5 g | CXB 6K0.5 | Not verifiable | 2 years | 300 x 225 mm | 4.0 kg | 300 mm | 300 mm | 1.00 | ||
| External | 330 mm | 225 mm | 300 x 330 x 110 mm | 110 mm | 15 kg | 240 V·AC | 220 V | 6.241 263 | EU | 220 ... 240 V·AC, 50 Hz | 1 g | 1 g | CXB 15K1 | Not verifiable | 2 years | 300 x 225 mm | 4.0 kg | 300 mm | 300 mm | 1.00 | ||
| External | 330 mm | 225 mm | 300 x 330 x 110 mm | 110 mm | 3 kg | 240 V·AC | 220 V | 6.286 301 | EU | 220 ... 240 V·AC, 50 Hz | 1 g | 1 g | CXB 3K1NM | Verifiable | 2 years | 300 x 225 mm | 4.0 kg | 300 mm | 300 mm | 1.00 |
