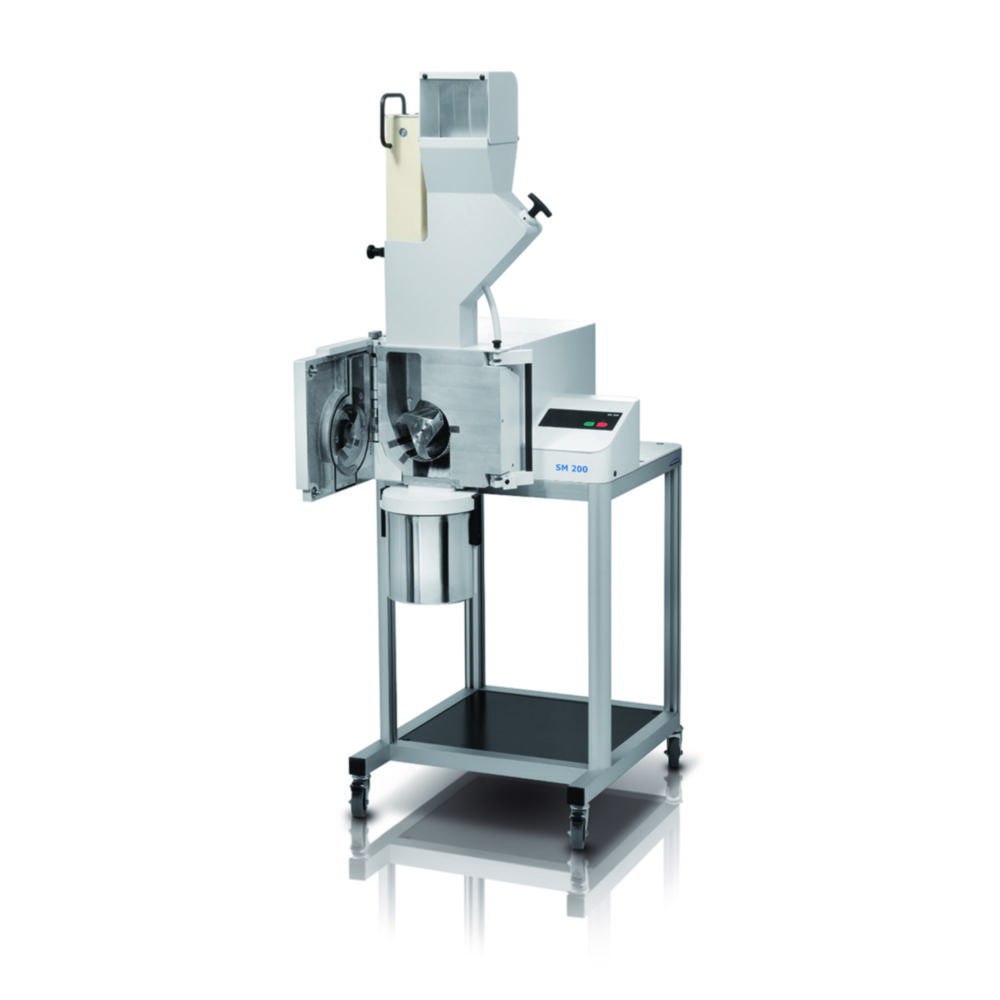

Cutting mill SM 200
- Optimum cutting effects thanks to double acting cutting bars
- Quick and easy cleaning without tools due to fold-back housing with smooth surfaces and push-fit rotor and sieves
Scope of supply: cutting mill, 5 l collecting receptacle, base frame
Please order rotor, hopper and bottom sieve separately.
Toote variatsioonid
| Depth | Height | IP code | Max. speed | Max. voltage | Catalog number | Rated capacity | Type | Weight | Width | PK | Ø rotor | atr_llg_max_final_fineness | Dimensions (WxDxH) | Power supply | Speed | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 760 mm | 1675 mm | IP 54 | 1500 1/min | 400 V·3/N/PE | 9.739 067 | 2200 W | SM 200 | 90 kg | 576 mm | 1.00 | 129.5 mm | 250 µm | 576 x 760 x 1675 mm | 400 V·3/N/PE, 50 Hz | 1500 1/min |
