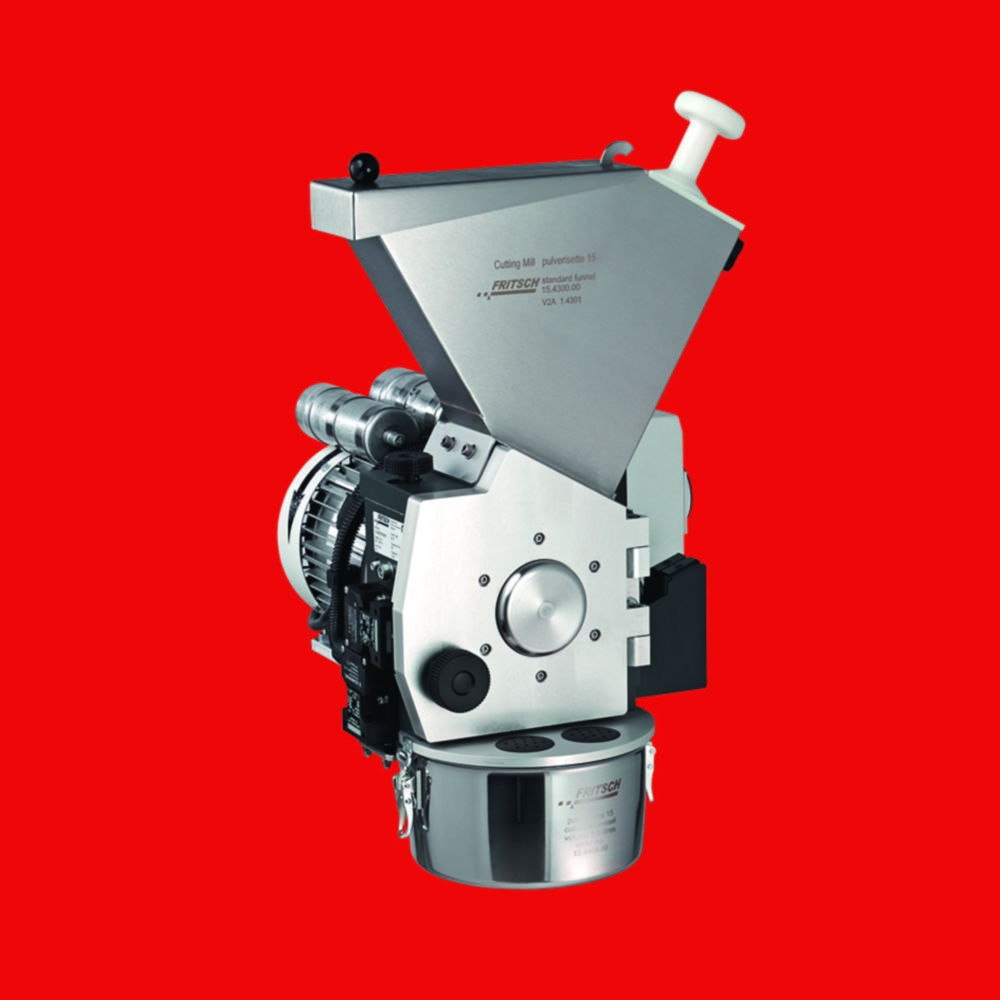

Cutting mills PULVERISETTE 15

Ideal for pre and fine comminution of soft to medium-hard as well as fibrous or brittle, tough materials. They are essential for the areas of plastics, textiles, agriculture and forestry, environmental, construction materials, chemistry and foodstuffs. All cutting parts can be removed for cleaning in just a few seconds without tools, unbeatable fast, simple and efficient. Variable rotational speeds, different rotors, various knife geometries and replaceable blades ensure maximum flexibility and durability. For controlling the abrasion properties, the cutting tools are offered in different materials. The optimum airflow ensures fast comminution and secure protection against clogging. The FRITSCH Cyclone seperators (optional) for sample exhaustion enable simple feeding due to the strong airflow, increase throughput, and reduce the thermal load of the samples.

Funnels, rotors, sieve inserts/sieve cassettes and collecting vessels must be ordered separately.

Toote variatsioonid

DepthHeightMax. speedMax. throughputMax. voltageMin. speedCatalog numberRated capacityWeightWidthPKMin. voltageatr_llg_max_final_finenessDimensions (WxDxH)Power supplySpeedKogus
480 mm690 mm3400 1/min50 l/h400 V2800 1/min9.738 4211790 W32 kg420 mm1.00-250 µm420 x 480 x 690 mm400 V, 50 Hz2,800 ... 3400 1/min
480 mm690 mm3400 1/min50 l/h240 V2800 1/min9.738 4232150 W32 kg420 mm1.00200 V250 µm420 x 480 x 690 mm200 ... 240 V, 50 Hz2,800 ... 3400 1/min
