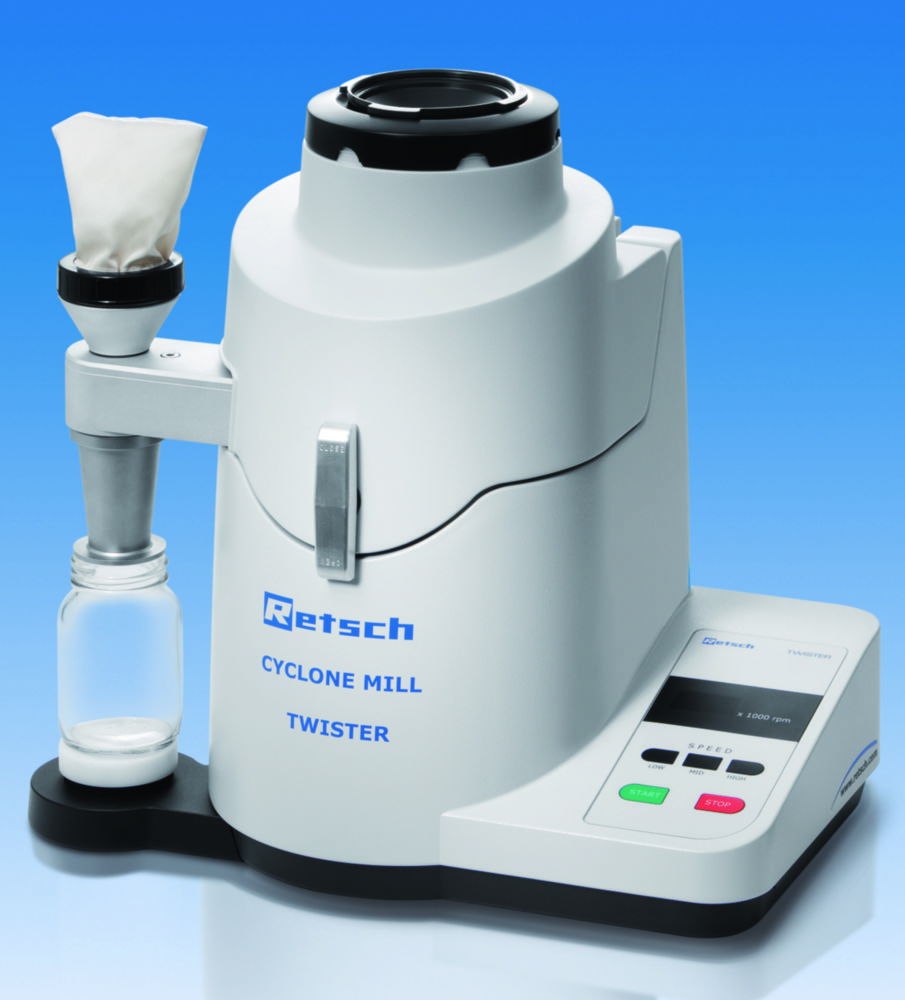

Cyclone Mill TWISTER
Application:
The Cyclone Mill TWISTER is specially designed for the processing of foods and feeds for subsequent NIR analysis. The optimized form of rotor and grinding chamber generates an air jet which carries the ground sample through the integrated cyclone into the sample bottle. The air jet prevents the material from heating up, thus preserving the moisture content.
Features:
- Ideal for grinding feeds, grains, forage and other similar products
- 3 controlled speeds
- Cyclone separator with 250 ml collecting bottle for quick extraction of sample
- No cross contamination thanks to easy cleaning
- Convenient operating panel
- Professional industrial design with long lifetime
Scope of supply:
Cyclone Mill TWISTER complete with rotor, grinding ring, sieve inserts (1.0 mm and 2.0 mm), 10 sample bottles 250 ml
Toote variatsioonid
| Depth | Ø rotor | Dimensions (WxDxH) | Height | atr_llg_max_final_fineness | Max. speed | Max. voltage | Min. speed | Catalog number | Power supply | Rated capacity | Speed | Weight | Width | PK | Min. voltage | Type | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 283 mm | 98.5 mm | 449 x 283 x 427 mm | 427 mm | 250 µm | 14000 1/min | 240 V | 10000 1/min | 6.256 514 | 220 ... 240 V, 50/60 Hz | 900 W | 10,000 ... 14000 1/min | 14 kg | 449 mm | 1.00 | 220 V | TWISTER | ||
| 283 mm | 98.5 mm | 449 x 283 x 427 mm | 427 mm | 250 µm | 14000 1/min | 120 V | 10000 1/min | 4.676 347 | 100 ... 120 V, 50/60 Hz | 900 W | 10,000 ... 14000 1/min | 14 kg | 449 mm | 1.00 | 100 V | TWISTER |
