Diaphragm pumps, Aluminium

  • Improved performance, increased pumping speed (up to 16 m³/h) and better ultimate vacuum (up to 0.3 mbar). Extend applications with non-aggressive gases whether used in the laboratory or for industrial processes

  • Very low leak rate due to enhanced leak-tight tubing connections, resulting in consistent performance characteristics – even after many years of operation. Ideal for analytical applications

  • Long diaphragm and valve lifetimes: made of highly flexible FPM, with fabric-reinforced double diaphragms for improved long term stability

  • Very quiet and ultra low vibration due to compact drive with patented motor drive system. Ideal as a built-in component for sensitive analytical equipment

  • Easy to clean due to smooth surfaces. A robust solution for numerous applications in industrial environments

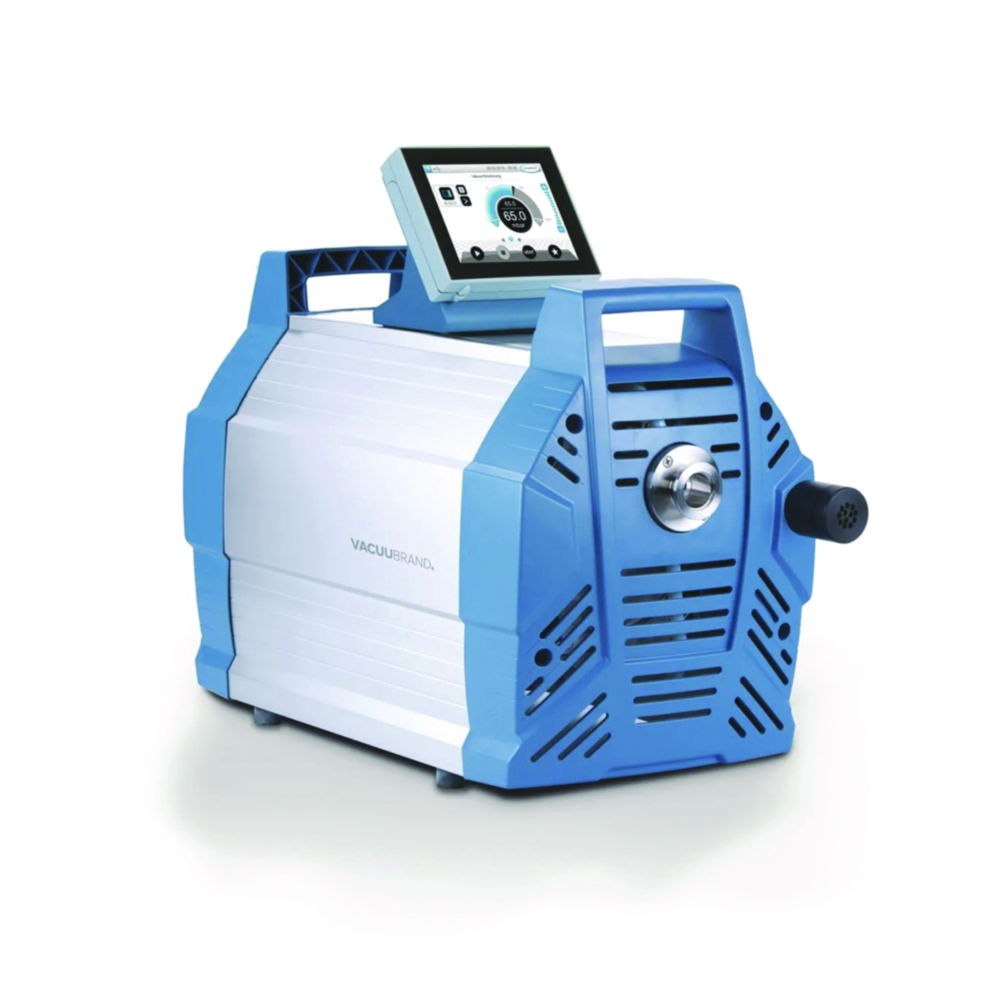

The VARIO® design provides vacuum control by precise and continuous adaption of the diaphragm pumps motor speed, and includes the vacuum pump, as well as the VACUU·SELECT controller.

Country-specific power cord versions available on request.

  • Specifications
  • Vacuum inlet
  • Tubing nozzle DN 8-10 mm: ME 4 NT, ME 4R NT, ME 8 NT, MZ 2 NT, ME 2 NT
  • KF DN 16: MZ 2D NT, MD 4 NT, MV 2 NT, MD 4 VARIO select, MD 2 VARIO select
  • KF DN 25: MD 12 NT, MV 10 NT, ME 16 NT, MD 12 NT VARIO select, MV 10 NT VARIO select
  • Pressure outlet
  • Silencer / G1/4″: MZ 2 NT, MZ 2D NT, MD 4 NT, MV 2 NT, ME 2 NT, MD 4 VARIO select, MV 2 VARIO select
  • Silencer / G1/2″: MD 12 NT, MV 10 NT, ME 16 NT, MD 12 NT VARIO select, MV 10 NT VARIO select
  • Twin silencers / G1/4″: ME 8 NT, ME 4 NT
  • Tubing nozzle DN 8-10 mm: ME 4R NT

Toote variatsioonid

TypeUltimate vacuum mbarDimensions (W x D x H) mmConnectorNumber of stepsFlow rate (50/60Hz) L / min.Catalog numberPKKogus
MD 4 VARIO select1235 x 325 x 245CH3954.670 4931.00
ME 8 NT70239 x 328 x 198UK1121.67 / 1354.670 4831.00
MZ 2 NT7239 x 243 x 198UK236.67 / 404.670 4271.00
MZ 2D NT4242 x 246 x 198UK238.33 / 41.674.670 4321.00
ME 4 NT70239 x 243 x 198UK166.67 / 73.334.670 4201.00
MD 4 NT1239 x 328 x 198UK363.30 / 71.674.670 4871.00
MV 2 VARIO select0.3235 x 325 x 245CH4554.670 5531.00
MV 2 VARIO select0.3235 x 325 x 245CEE4554.670 5521.00
MD 4 VARIO select1235 x 325 x 245CEE3954.670 4921.00
ME 16 NT70260 x 554 x 359UK1273.30 / 306.679.880 9531.00
ME 4 NT70239 x 243 x 198CEE166.67 / 73.339.880 8831.00
ME 4R NT100268 x 254 x 290CEE163.33 / 709.880 8841.00
MD 12 NT VARIO select1.5260 x 552 x 450CEE3223.33 / 223.704.687 9181.00
ME 2 NT70211 x 243 x 198US133.33 / 36.679.880 9421.00
MV 2 NT0.5239 x 328 x 198CEE436.67 / 409.880 8921.00
MZ 2 NT7239 x 243 x 198CEE236.67 / 409.880 8871.00
MZ 2D NT4242 x 246 x 198CEE238.33 / 41.679.880 8891.00
ME 2 NT70211 x 243 x 198UK133.33 / 36.679.880 9411.00
ME 16 NT70260 x 554 x 359CEE1273.30 / 306.679.880 9521.00
MV 10 NT VARIO select0.3260 x 552 x 450UK4201.66 / 201.054.687 9201.00
MV 10 NT0.5260 x 554 x 359CEE4173.30 / 193.309.880 9541.00
MZ 2 NT7239 x 243 x 198CH236.67 / 409.880 8881.00
MV 10 NT VARIO select0.3260 x 552 x 450CEE4201.66 / 201.054.687 9281.00
MV 2 NT0.5239 x 328 x 198CH436.67 / 409.880 8931.00
MD 12 NT2260 x 554 x 359CH3201 / 2219.880 9511.00
MV 10 NT VARIO select0.3260 x 552 x 450CH4201.66 / 201.054.687 9191.00
MD 4 NT1239 x 328 x 198CEE363.30 / 71.679.880 8901.00
ME 8 NT70239 x 328 x 198CH1121.67 / 1359.880 8861.00
ME 2 NT70211 x 243 x 198CEE133.33 / 36.679.880 9401.00
MD 4 NT1239 x 328 x 198CH363.30 / 71.679.880 8911.00
ME 8 NT70239 x 328 x 198CEE1121.67 / 1359.880 8851.00
MD 12 NT2260 x 554 x 359CEE3201 / 2219.880 9491.00
MD 12 NT2260 x 554 x 359UK3201 / 2219.880 9501.00
MV 2 NT0.5239 x 328 x 198UK436.67 / 404.670 5481.00
ME 4R NT100268 x 254 x 290UK163.33 / 704.670 4231.00
MV 10 VARIO select0.3554 x 260 x 420CEE42027.983 6951.00
MD 12 VARIO select1.5554 x 260 x 420CEE32234.670 5661.00
MV 10 VARIO select0.3554 x 260 x 420UK42024.670 5711.00
MV 10 VARIO select0.3554 x 260 x 420CH42024.670 5701.00
