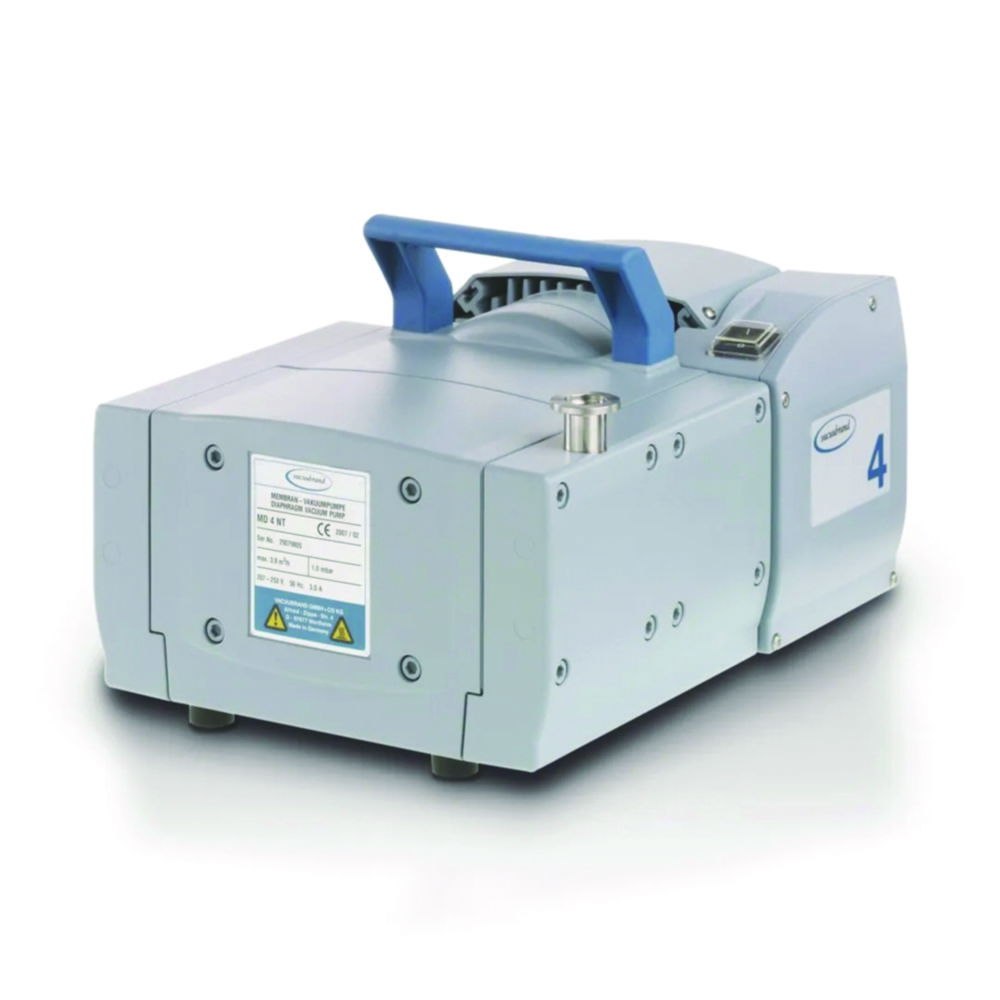

Diaphragm pumps, Aluminium, MD 4 NT
- Improved performance, increased pumping speed and better ultimate vacuum Extend applications with non-aggressive gases whether used in the laboratory or for industrial processes
- Very low leak rate due to enhanced leak-tight tubing connections, resulting in consistent performance characteristics – even after many years of operation. Ideal for analytical applications
- Long diaphragm and valve lifetimes: made of highly flexible FPM, with fabric-reinforced double diaphragms for improved long term stability
- Very quiet and ultra low vibration due to compact drive with patented motor drive system. Ideal as a built-in component for sensitive analytical equipment
- Easy to clean due to smooth surfaces. A robust solution for numerous applications in industrial environments
Country-specific power cord versions available on request.
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | No. of stages | Catalog number | Plug type | Type | Ultimate vacuum | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 328 mm | 239 x 328 x 198 mm | 3.8 m³/h | 198 mm | 3 | 9.880 891 | CH | MD 4 NT | 1 mbar | 239 mm | 1.00 | ||
| 328 mm | 239 x 328 x 198 mm | 3.8 m³/h | 198 mm | 3 | 4.670 487 | UK | MD 4 NT | 1 mbar | 239 mm | 1.00 | ||
| 328 mm | 239 x 328 x 198 mm | 3.8 m³/h | 198 mm | 3 | 9.880 890 | CEE | MD 4 NT | 1 mbar | 239 mm | 1.00 |
