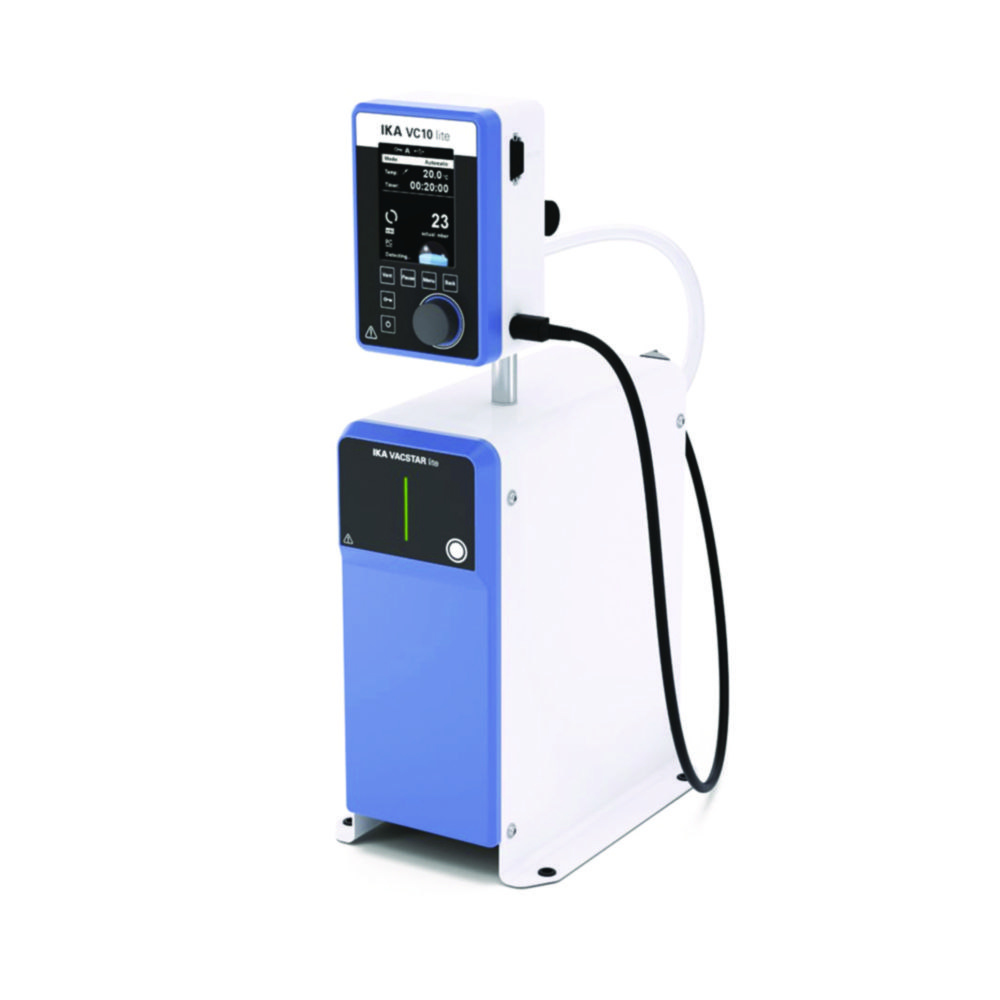

Diaphragm vacuum pump VACSTAR lite Starter Solution
Scope of supply: Diaphragm vacuum pump VACSTAR lite, vacuum controller VC 10 lite, stand rod
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | IP code | Max. voltage | Min. voltage | No. of stages | Noise level | Catalog number | Power supply | Rated capacity | Type | Ultimate vacuum | Weight | Width | PK | Plug type | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 280 mm | 115 x 280 x 445 mm | 1 m³/h | 445 mm | IP 20 | 240 V | 100 V | 2 | 54 db(A) | 4.714 169 | 100 ... 240 V, 50/60 Hz | 144 W | VACSTAR lite Starter Solution | 9 mbar | 9.8 kg | 115 mm | 1.00 | EU | ||
| 280 mm | 115 x 280 x 445 mm | 1 m³/h | 445 mm | IP 20 | 240 V | 100 V | 2 | 54 db(A) | 4.715 666 | 100 ... 240 V, 50/60 Hz | 144 W | VACSTAR lite Starter Solution | 9 mbar | 9.8 kg | 115 mm | 1.00 | UK | ||
| 280 mm | 115 x 280 x 445 mm | 1 m³/h | 445 mm | IP 20 | 240 V | 100 V | 2 | 54 db(A) | 4.715 754 | 100 ... 240 V, 50/60 Hz | 144 W | VACSTAR lite Starter Solution | 9 mbar | 9.8 kg | 115 mm | 1.00 | CH |
