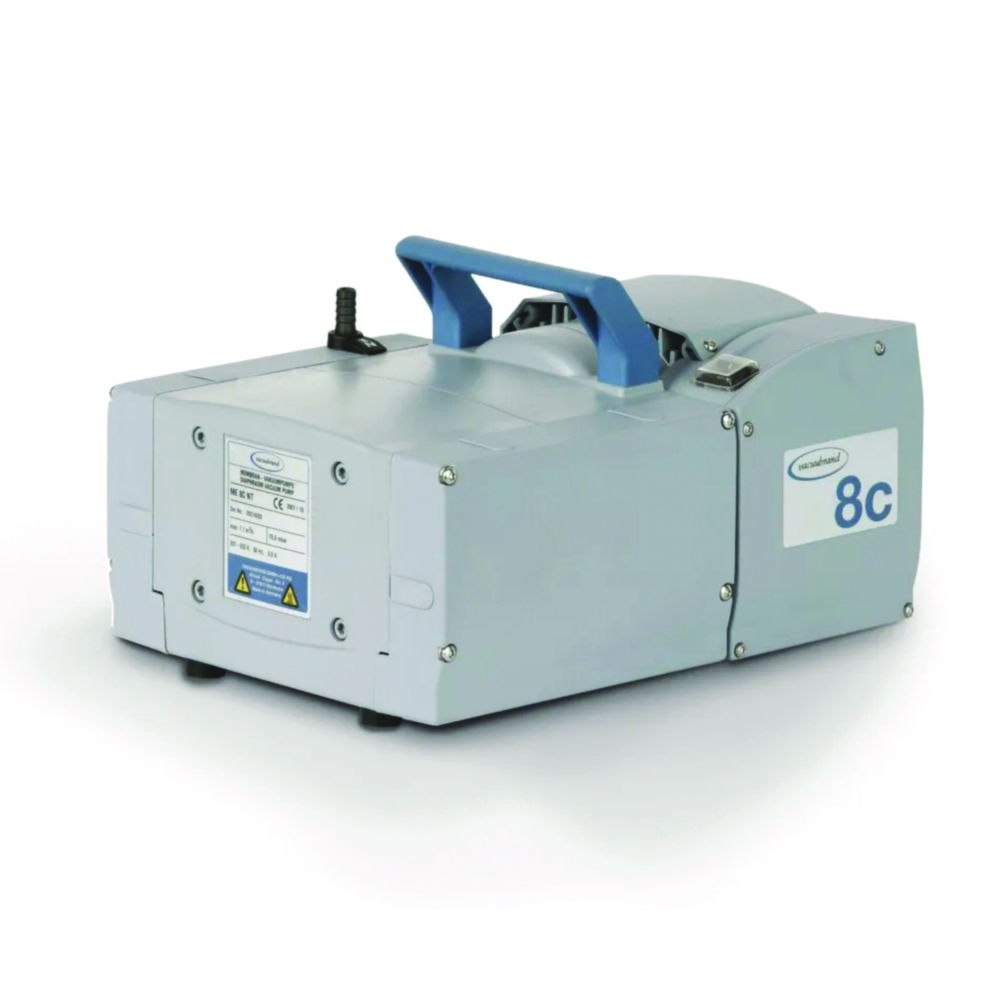

Diaphragm vacuum pumps, chemistry design, ME 8C NT
- Improved performance, increased pumping speed and lower ultimate vacuum extends applications in both the laboratory and in industrial applications
- Long-life diaphragm with PTFE sandwich construction and unstressed diaphragm support
- Easy service/exchange of diaphragm or valves due to novel integrated valve head assembly
- Easy dismantling, cleaning and reassembly without requiring readjustment
- Very quiet and ultra low vibration due to compact drive with patented motor control system. Ideal as a built-in component for sensitive equipment in both the laboratory and in industry
- Easy to clean due to smooth exterior surfaces
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | No. of stages | Catalog number | Plug type | Type | Ultimate vacuum | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 328 mm | 243 x 328 x 198 mm | 7.1 m³/h | 198 mm | 1 | 9.880 896 | CEE | ME 8C NT | 70 mbar | 243 mm | 1.00 | ||
| 328 mm | 243 x 328 x 198 mm | 7.1 m³/h | 198 mm | 1 | 9.880 897 | CH | ME 8C NT | 70 mbar | 243 mm | 1.00 |
