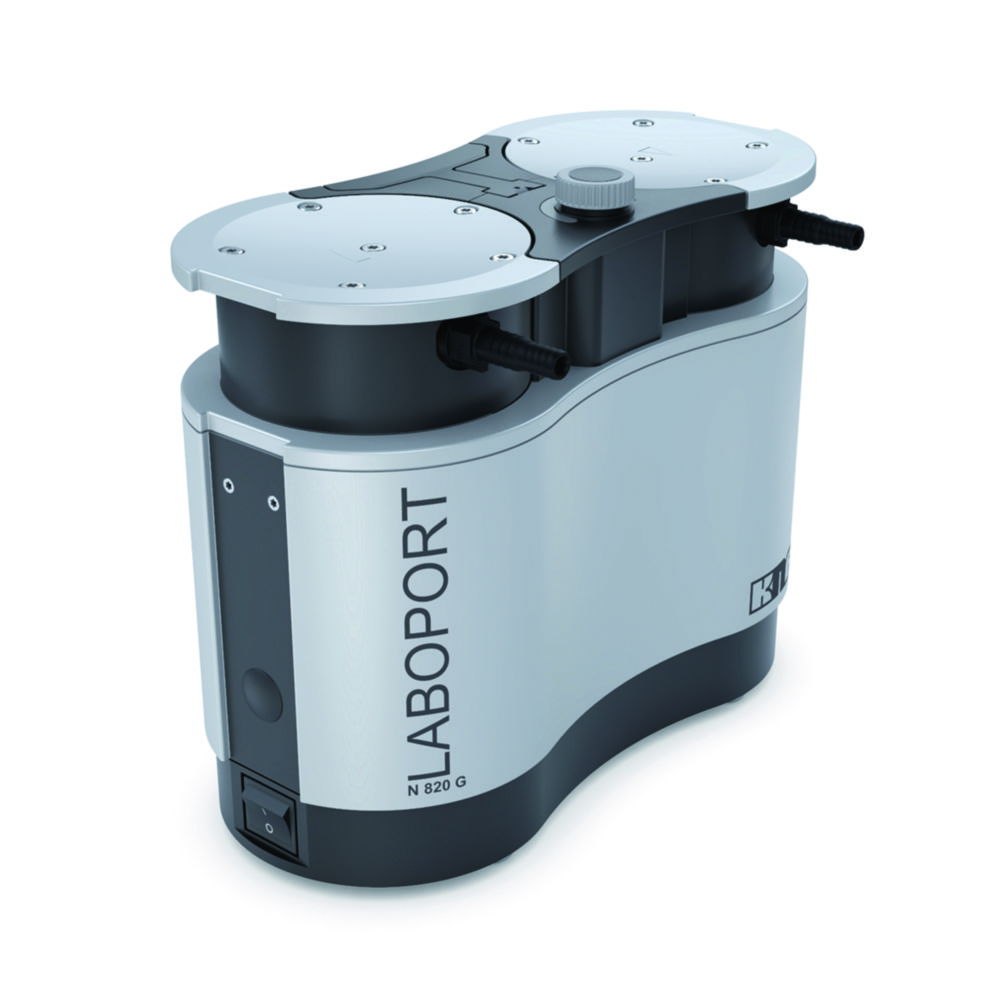

Diaphragm vacuum pumps LABOPORT® N 820 G / N 840 G, chemically-resistant

Diaphragm vacuum pumps LABOPORT® N 820 G / N 840 G, chemically-resistant

The compact pumps feature a control knob for manual adjustments of the flow rate, making them well suited to a wide variety of applications, e.g. rotary evaporation, distillation, gel drying, degassing as well as the use with vacuum ovens and vacuum concentrators. Due to the manual rotational speed control, the pumps are quiet, very energy efficient, and can be optimally adjusted in accordance with the application.

  • Easy-to-clean surface

  • Adjustable in flow rate due to manual rotational speed control

  • Combination of PTFE pump head and PTFE-coated diaphragm makes the pump ideal for extremely aggressive/corrosive gases and vapors

  • High level of compatibility with vapor and condensation

  • Integrated gas ballast valve

  • 3-color status display: In operation / Stand-by / Error

  • ATEX-compliant in accordance with II 2/-G IIB+H2 T3 internal atmpsphere only

  • 100% oil-free transfer to ensure uncontaminated transfer, evacuation and compression

  • Optional: Easily expandable with separators and/or condensers

Toote variatsioonid

DepthDimensions (WxDxH)Flow rateHeightMax. voltageMin. voltageCatalog numberPlug typePower supplyTypeUltimate vacuumWeightWidthPKKogus
259 mm163 x 259 x 220 mm20 l/min220 mm240 V100 V4.672 375EU/UK/CH100 ... 240 V, 50/60 HzN 820 G6 mbar8.8 kg163 mm1.00
289 mm177 x 289 x 240 mm34 l/min240 mm115 V-4.686 738US115 V, 60 HzU N 840 G6 mbar11.3 kg177 mm1.00
259 mm163 x 259 x 220 mm20 l/min220 mm115 V-4.686 739US115 V, 60 HzU N 820 G6 mbar8.8 kg163 mm1.00
289 mm177 x 289 x 240 mm34 l/min240 mm240 V100 V4.672 376EU/UK/CH100 ... 240 V, 50/60 HzN 840 G6 mbar11.3 kg177 mm1.00
