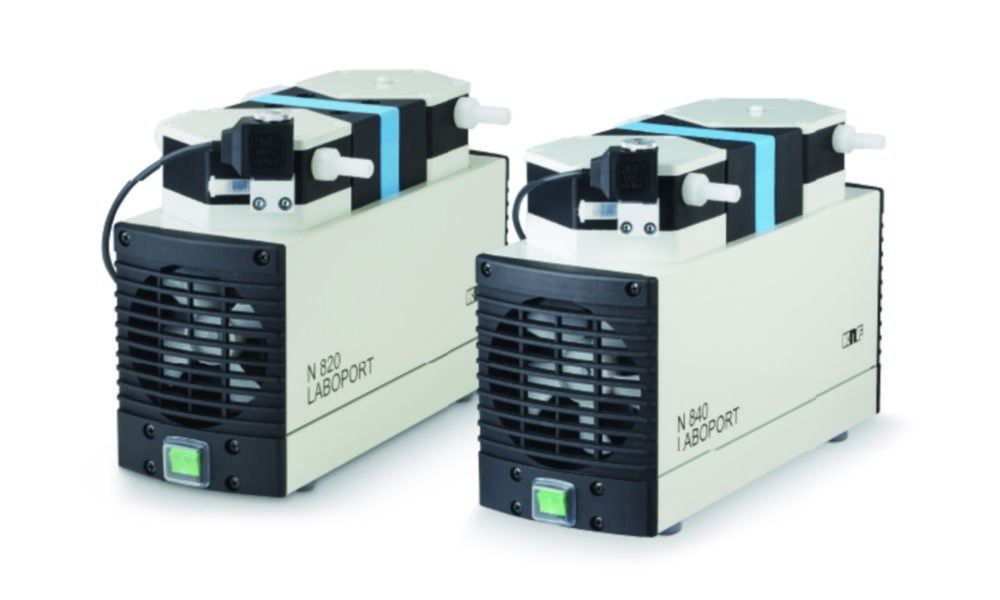

Diaphragm vacuum pumps LABOPORT® SD, chemically-resistant
- Application: Rotary evaporation, Distillation, Vacuum oven, Centrifugal concentration
- Integrated KNF self-drying system ensures that condensate is quickly removed from the pump heads without the vacuum being altered. This significantly reduces process time and preserves the pump heads.
- Chemically resistant and thus ideal for use with extremely aggressive/corrosive gases and vapors
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | Max. overpressure | Max. voltage | Catalog number | Power supply | Type | Ultimate vacuum | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 312 mm | 177 x 312 x 220 mm | 20 l/min | 220 mm | 1 bar | 230 V | 9.880 615 | 230 V, 50 Hz | N 820.3 FT.40.18 | 10 mbar | 9.6 kg | 177 mm | 1.00 | ||
| 341 mm | 189 x 341 x 239 mm | 34 l/min | 239 mm | 1 bar | 230 V | 9.880 616 | 230 V, 50 Hz | N 840.3 FT.40.18 | 10 mbar | 12.9 kg | 189 mm | 1.00 |
