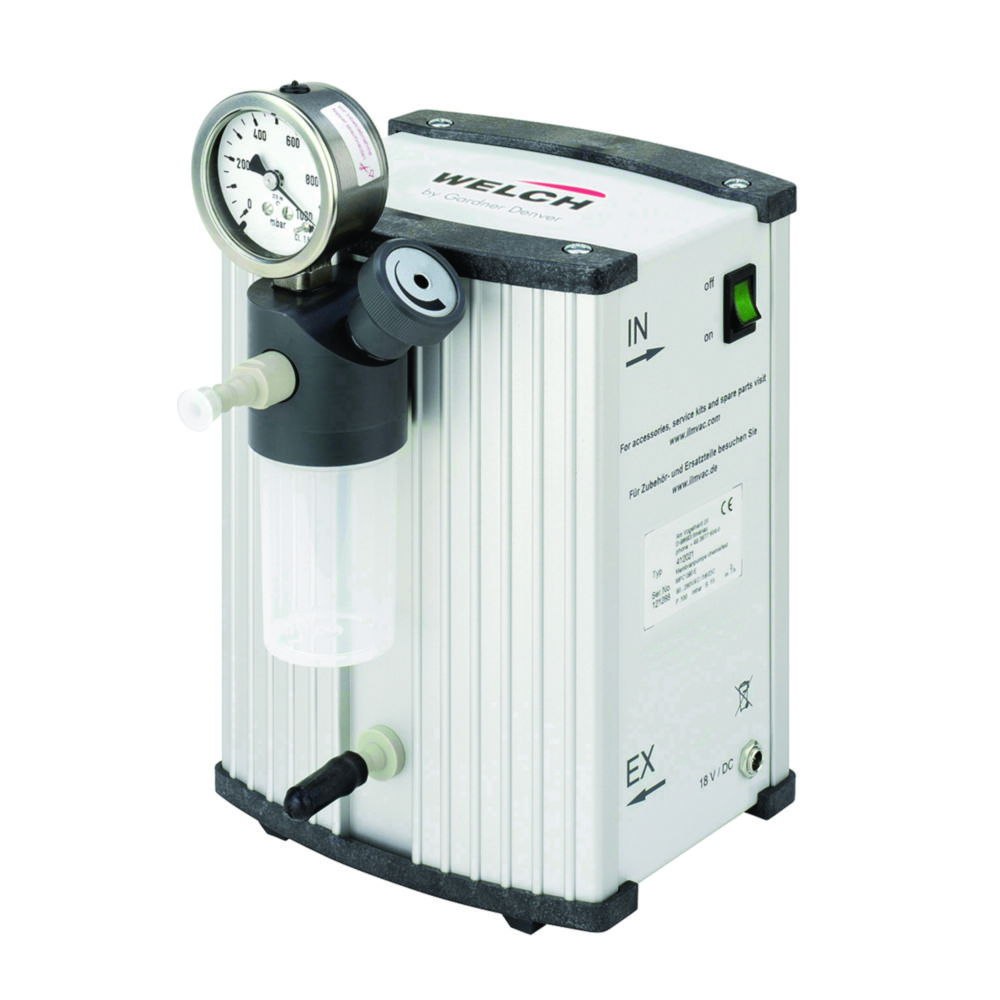

Diaphragm vacuum pumps MPC 090 E, chemical-resistant
The MPC 090 E diaphragm pump has been specially developed for vacuum filtration and solid phase extraction (SPE) and is used for single funnel filtrations and with multiple filtration devices and desiccators. A built-in vacuum fine adjustment valve and pressure gauge allow variable adjustment of the applied vacuum, while the built in catch pot prevents accidental ingestion of liquid into the pump.
- Chemically resistant to the common aggressive solvent and acid vapours in laboratories
- All parts in contact with gas are made of PTFE or PTFE compounds
- The pump and connection heads are carbon fibre-reinforced and electrically conductive
- Clean vacuum generation due to 100 % oil-free operation
- Ultra quiet operation
- Maintenance-free
- Suitable for field use with optional adapter
Scope of supply: Diaphragm pump, hose shaft DN 6, exhaust air damper, power adapter, connection adapter EU and UK
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | IP code | Max. voltage | Min. voltage | Noise level | Catalog number | Power supply | Type | Ultimate vacuum | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 198 mm | 144 x 198 x 244 mm | 244 mm | IP 44 | 260 V·AC | 90 V·AC | 45 db(A) | 7.980 626 | 90 ... 260 V·AC, 50/60 Hz | MPC 090 E | 100 mbar | 2.7 kg | 144 mm | 1.00 |
