Diaphragm vacuum pumps -NT Series, Chemistry design
- Improved performance, increased pumping speed and lower ultimate vacuum extends applications in both the laboratory and in industrial applications
- Long-life diaphragm with PTFE sandwich construction and unstressed diaphragm support
- Easy service/exchange of diaphragm or valves due to novel integrated valve head assembly. Easy dismantling, cleaning and reassembly without requiring readjustment
- Very quiet and ultra low vibration due to compact drive with patented motor control system. Ideal as a built-in component for sensitive equipment in both the laboratory and in industry
- Superior vapour tolerance due to integral tubing connections and gas ballast valve for continuous purge (for ME 16C NT, MZ 2C NT, MD 4C / 12C NT and MV 10C NT)
- Easy to clean due to smooth exterior surfaces

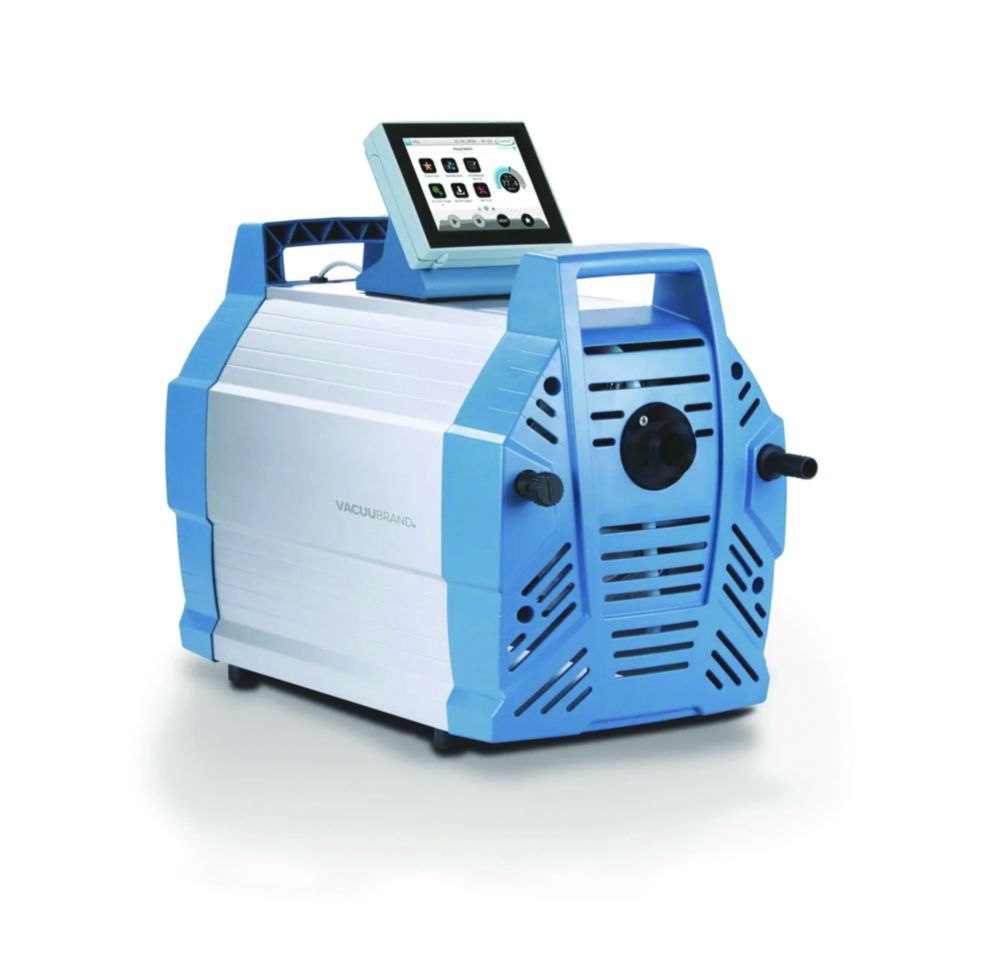

The VARIO® design provides vacuum control by precise and continuous adaption of the chemistry diaphragm pumps motor speed, and includes the vacuum pump, as well as the VACUU·SELECT controller.
Diaphragm pump MD 4CRL NT with reduced leakage rate (0.001 mbar x l/s).
Country-specific power cord versions available on request.
Toote variatsioonid
| PK | Dimensions (WxDxH) | Flow rate | Height | No. of stages | Plug type | Type | Catalog number | Depth | Ultimate vacuum | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.00 | 243 x 243 x 245 mm | 2.8 m³/h | 245 mm | 2 | CH | MZ 2C VARIO select | 4.670 438 | 243 mm | 7 mbar | 243 mm | ||
| 1.00 | 260 x 533 x 359 mm | 16.3 m³/h | 359 mm | 1 | CEE | ME 16C NT | 9.880 955 | 533 mm | 70 mbar | 260 mm | ||
| 1.00 | 243 x 254 x 198 mm | 3.9 m³/h | 198 mm | 1 | CEE | ME 4C NT | 9.880 894 | 254 mm | 70 mbar | 243 mm | ||
| 1.00 | 243 x 243 x 198 mm | 2.0 m³/h | 198 mm | 2 | CH | MZ 2C NT | 9.880 899 | 243 mm | 7 mbar | 243 mm | ||
| 1.00 | 243 x 254 x 198 mm | 3.9 m³/h | 198 mm | 1 | UK | ME 4C NT | 4.670 425 | 254 mm | 70 mbar | 243 mm | ||
| 1.00 | 243 x 328 x 198 mm | 7.1 m³/h | 198 mm | 1 | CH | ME 8C NT | 9.880 897 | 328 mm | 70 mbar | 243 mm | ||
| 1.00 | 243 x 243 x 198 mm | 2.0 m³/h | 198 mm | 2 | UK | MZ 2C NT | 6.267 265 | 243 mm | 7 mbar | 243 mm | ||
| 1.00 | 260 x 533 x 359 mm | 12.0 m³/h | 359 mm | 3 | CEE | MD 12C NT | 9.880 957 | 533 mm | 2 mbar | 260 mm | ||
| 1.00 | 243 x 243 x 245 mm | 2.8 m³/h | 245 mm | 2 | CEE | MZ 2C VARIO select | 4.670 437 | 243 mm | 7 mbar | 243 mm | ||
| 1.00 | 243 x 319 x 374 mm | 7.1 m³/h | 374 mm | 1 | - | ME 8C NT + 2AK | 6.267 643 | 319 mm | 70 mbar | 243 mm | ||
| 1.00 | 260 x 533 x 359 mm | 9.5 m³/h | 359 mm | 4 | CEE | MV 10C NT | 9.880 960 | 533 mm | 0.9 mbar | 260 mm | ||
| 1.00 | 211 x 243 x 198 mm | 2.1 m³/h | 198 mm | 1 | UK | ME 2C NT | 9.880 944 | 243 mm | 70 mbar | 211 mm | ||
| 1.00 | 260 x 533 x 359 mm | 12.0 m³/h | 359 mm | 3 | UK | MD 12C NT | 9.880 958 | 533 mm | 2 mbar | 260 mm | ||
| 1.00 | 260 x 533 x 359 mm | 16.3 m³/h | 359 mm | 1 | UK | ME 16C NT | 9.880 956 | 533 mm | 70 mbar | 260 mm | ||
| 1.00 | 243 x 325 x 198 mm | 3.4 m³/h | 198 mm | 3 | - | MD 4CRL NT | 9.880 926 | 325 mm | 1.5 mbar | 243 mm | ||
| 1.00 | 243 x 243 x 198 mm | 2.0 m³/h | 198 mm | 2 | CEE | MZ 2C NT | 9.880 898 | 243 mm | 7 mbar | 243 mm | ||
| 1.00 | 260 x 533 x 450 mm | 12.8 m³/h | 450 mm | 4 | UK | MV 10C NT VARIO select | 4.688 106 | 533 mm | 0.6 mbar | 260 mm | ||
| 1.00 | 260 x 533 x 450 mm | 12.8 m³/h | 450 mm | 4 | CEE | MV 10C NT VARIO select | 4.687 926 | 533 mm | 0.6 mbar | 260 mm | ||
| 1.00 | 243 x 328 x 198 mm | 3.4 m³/h | 198 mm | 3 | CEE | MD 4C NT | 9.880 900 | 328 mm | 1.5 mbar | 243 mm | ||
| 1.00 | 243 x 328 x 198 mm | 7.1 m³/h | 198 mm | 1 | CEE | ME 8C NT | 9.880 896 | 328 mm | 70 mbar | 243 mm | ||
| 1.00 | 243 x 325 x 245 mm | 4.6 m³/h | 245 mm | 3 | CH | MD 4C VARIO select | 4.670 501 | 325 mm | 1.5 mbar | 243 mm | ||
| 1.00 | 260 x 533 x 450 mm | 14.3 m³/h | 450 mm | 3 | UK | MD 12C NT VARIO select | 4.687 925 | 533 mm | 1.5 mbar | 260 mm | ||
| 1.00 | 260 x 533 x 450 mm | 14.3 m³/h | 450 mm | 3 | CEE | MD 12C NT VARIO select | 4.687 927 | 533 mm | 1.5 mbar | 260 mm | ||
| 1.00 | 243 x 254 x 198 mm | 3.9 m³/h | 198 mm | 1 | CH | ME 4C NT | 9.880 895 | 254 mm | 70 mbar | 243 mm | ||
| 1.00 | 260 x 533 x 450 mm | 19.3 m³/h | 450 mm | 1 | CEE | ME 16C NT VARIO select | 4.687 924 | 533 mm | 70 mbar | 260 mm | ||
| 1.00 | 243 x 328 x 198 mm | 3.4 m³/h | 198 mm | 3 | UK | MD 4C NT | 4.670 495 | 328 mm | 1.5 mbar | 243 mm | ||
| 1.00 | 243 x 325 x 245 mm | 4.6 m³/h | 245 mm | 3 | CEE | MD 4C VARIO select | 4.670 500 | 325 mm | 1.5 mbar | 243 mm | ||
| 1.00 | 243 x 328 x 198 mm | 3.4 m³/h | 198 mm | 3 | CH | MD 4C NT | 9.880 901 | 328 mm | 1.5 mbar | 243 mm | ||
| 1.00 | 260 x 533 x 359 mm | 12.0 m³/h | 359 mm | 3 | CH | MD 12C NT | 9.880 959 | 533 mm | 2 mbar | 260 mm | ||
| 1.00 | 211 x 243 x 198 mm | 2.1 m³/h | 198 mm | 1 | CEE | ME 2C NT | 9.880 943 | 243 mm | 70 mbar | 211 mm |
