Differential pressure meter testo 510
Very handy, small and easy to operate pressure meter for differential pressure and flow velocity measurement values. The backlit display allows the measurement values to be easily read out, even in unfavourable light conditions. The testo 510, in combinationwith a Pitot tube, measures air flow velocity. For accurate measurement values, the air density can be compensated.
- Flow velocity measurement possible with Pitot tube
- Temperature and air density compensation
- 10 selectable units (hPa, mbar, Pa, mmH2O, inH2O, inHg, mmHg, psi, m/s, fpm)

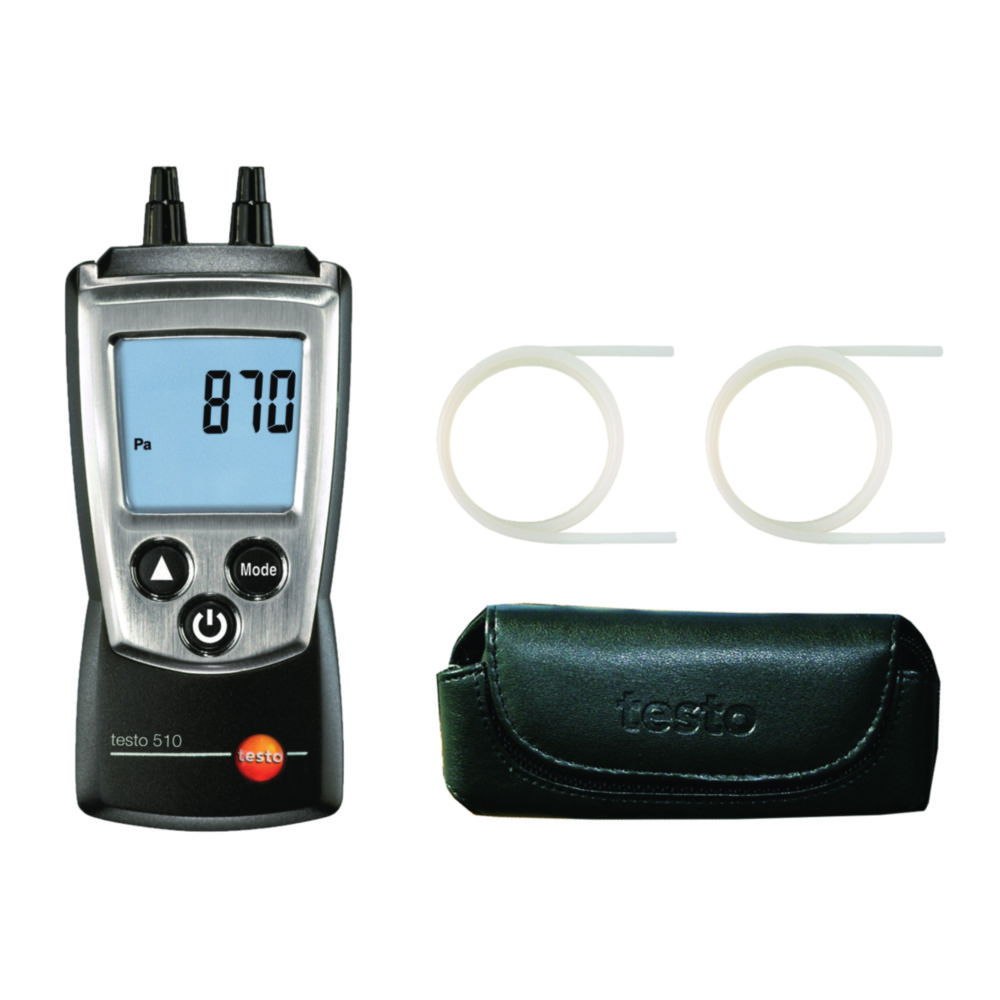

Scope of supply: Meter incl. tubing set (diam. 4 mm and 5 mm) with adapter, protective cap, calibration protocol, belt holder, batteries
Toote variatsioonid
| Catalog number | PK | Battery/rechargeable battery | Depth | Designation ANSI | Dimensions (WxDxH) | Height | IP code | Max. overpressure | Max. pressure | Min. pressure | Pressure | Resolution pressure | Type | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.231 631 | 1.00 | 2 x AAA | 119 mm | AAA | 46 x 119 x 25 mm | 25 mm | IP 40 | 500 mbar | 100 hPa | 0 hPa | 0 ... 100 hPa | 0.01 hPa | testo 510 | 90 g | 46 mm |
