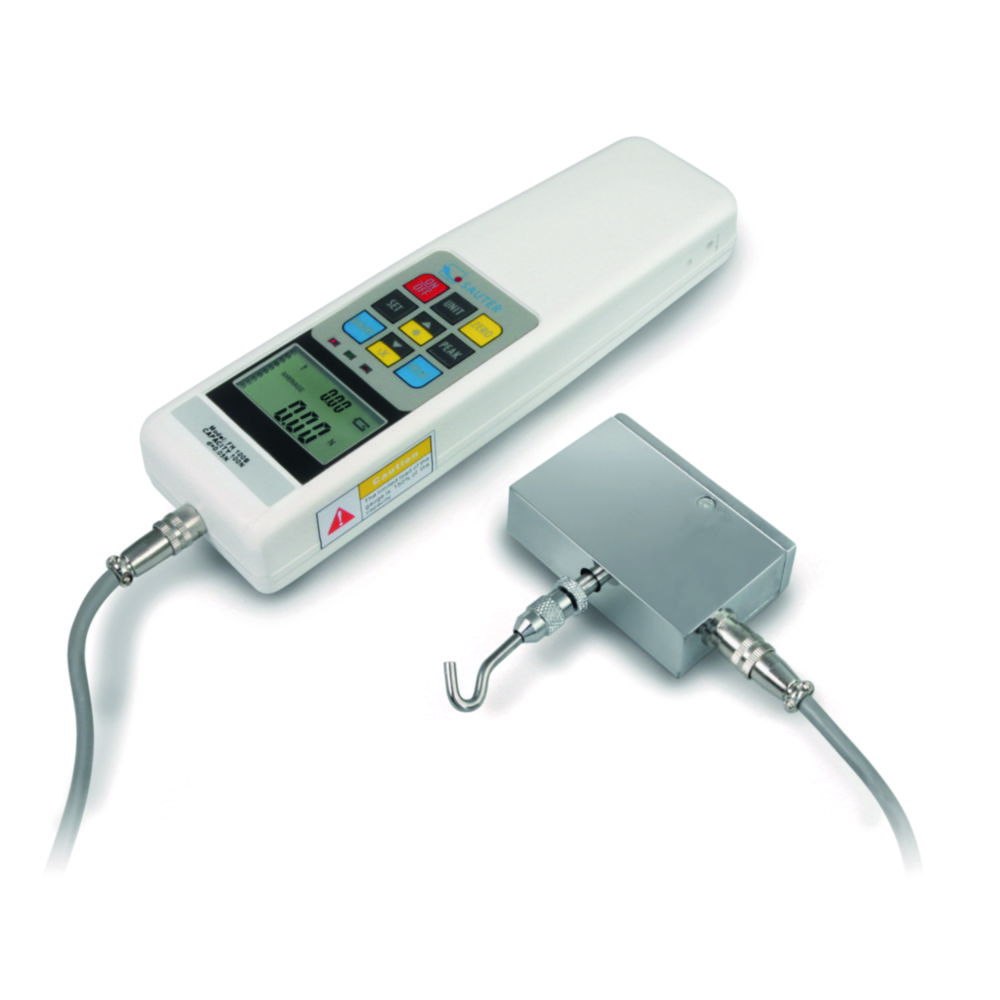

Digital force gauge FH-EXT
Force-measurement device with external, high-resolution measuring cell for very slight forces or loads in machines and plants.
- High-resolution display
- Peak Hold Mode
- Function to set limits: Input of an upper/lower limit value
- Visual and acoustic signal
- Data interface RS-232
- Rechargeable battery pack
- Suitable for almost all SAUTER test stands
Scope of supply:
Force gauge, mains adapter
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Display | Height | Max. voltage | Measured range | Min. voltage | Catalog number | Plug type | Power supply | Readability | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 66 mm | 230 x 66 x 36 mm | Digital | 36 mm | 240 V | 100 N | 100 V | 6.317 549 | EU/CH | 100 ... 240 V | 0,05 N | 230 mm | 1.00 | ||
| 66 mm | 230 x 66 x 36 mm | Digital | 36 mm | 240 V | 200 N | 100 V | 4.691 162 | EU/CH | 100 ... 240 V | 0,1 N | 230 mm | 1.00 |
