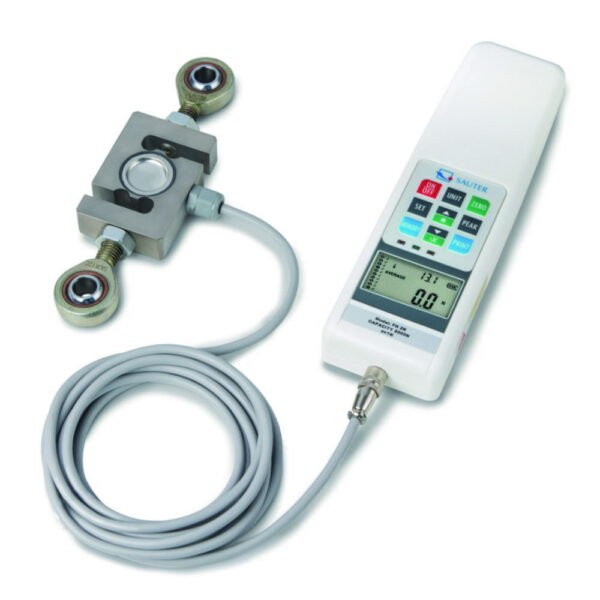

Digital force gauge FH-M
Universal digital force-measuring devices for tensile and compressive force measurement with external measuring cell.
- Turnable display with backlight
- Peak Hold function
- Measuring with tolerance range (limit-setting function)
- Acoustic and optical signal
- Auto-Power-Off
- Internal memory
- Data interface RS-232
- Rechargeable battery pack integrated
Scope of supply:
Force gauge, hard carrying case, tension loops, pressure plates, 3 m cable
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | Max. voltage | Measured range | Min. voltage | Catalog number | Plug type | Power supply | Readability | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 66 mm | 230 x 66 x 36 mm | 36 mm | 240 V | 20000 N | 100 V | 4.691 164 | EU/CH | 100 ... 240 V | 10 N | 230 mm | 1.00 | ||
| 66 mm | 230 x 66 x 36 mm | 36 mm | 240 V | 1000 N | 100 V | 4.691 160 | EU/CH | 100 ... 240 V | 0,5 N | 230 mm | 1.00 | ||
| 66 mm | 230 x 66 x 36 mm | 36 mm | 240 V | 2000 N | 100 V | 4.691 167 | EU/CH | 100 ... 240 V | 1 N | 230 mm | 1.00 | ||
| 66 mm | 230 x 66 x 36 mm | 36 mm | 240 V | 50000 N | 100 V | 4.691 174 | EU/CH | 100 ... 240 V | 10 N | 230 mm | 1.00 | ||
| 66 mm | 230 x 66 x 36 mm | 36 mm | 240 V | 5000 N | 100 V | 4.691 177 | EU/CH | 100 ... 240 V | 1 N | 230 mm | 1.00 |
