Digital force gauge FL-M
For tensile and compressive force measurement with external measuring cell.
- Graphics display with backlight
- Peak Hold Mode
- Metal housing

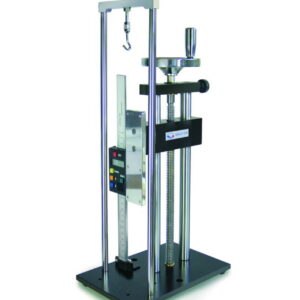

- Can be mounted on all SAUTER test stands
- Capacity display: A bar lights up to show how much of the measuring range is still available
- Measuring with tolerance range (limit-setting function)
- Internal memory for up to 500 measurements
- Continuous analogue output
- Data interface RS-232, USB
- Rechargeable battery operation
Scope of supply:
Force gauge, carrying case, tension loops, mains adapter
Toote variatsioonid
| Depth | Height | Catalog number | Plug type | Readability | Width | PK | Max. voltage | Min. voltage | Dimensions (WxDxH) | Measured range | Power supply | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 75 mm | 30 mm | 4.691 180 | EU/CH | 5 N | 170 mm | 1.00 | 240 V | 100 V | 170 x 75 x 30 mm | 10000 N | 100 ... 240 V | ||
| 75 mm | 30 mm | 4.691 183 | EU/CH | 1 N | 170 mm | 1.00 | 240 V | 100 V | 170 x 75 x 30 mm | 2500 N | 100 ... 240 V | ||
| 75 mm | 30 mm | 4.691 182 | EU/CH | 10 N | 170 mm | 1.00 | 240 V | 100 V | 170 x 75 x 30 mm | 20000 N | 100 ... 240 V | ||
| 75 mm | 30 mm | 4.691 184 | EU/CH | 2 N | 170 mm | 1.00 | 240 V | 100 V | 170 x 75 x 30 mm | 5000 N | 100 ... 240 V |
