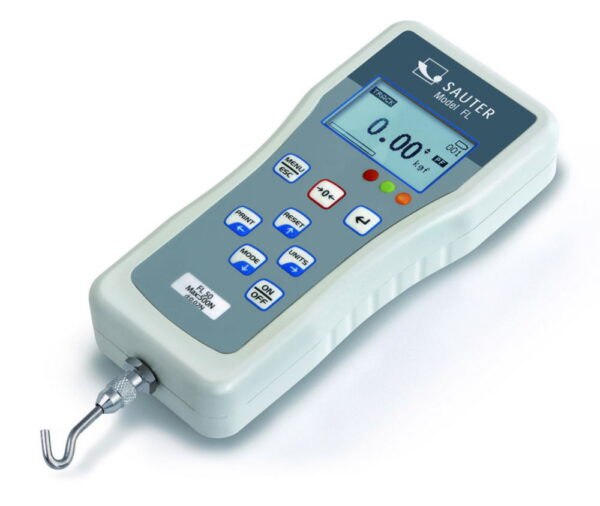

Digital force gauge FL-S
Universal digital force gauges with integrated measuring cell.
- Turnable display with backlight
- Can be mounted on all SAUTER test stands
- Metal housing
- Selectable measuring units: N, kN, kg, oz, lb
- Real time or Peak Hold Mode to observe transcients or capture peaks
- Capacity display: A bar lights up to show how much of the measuring range is still available
- Measuring with tolerance range (limit-setting function):Upper and lower limiting can be programmed, in pull and push direction. The process is supported by an acoustic and visual signal
- Internal memory for up to 500 measurements
- Continuous analogue output: Linear voltage signal in relation to the load (-2 up to +2 V)
Scope of supply: Digital force gauge, hard carrying case, 3 standard attachments (FL 2K: with external measuring cell, tension loops and pressure plates, without standard attachments)
Toote variatsioonid
| Display | Material housing | Measured range | Catalog number | Readability | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|
| Digital | Metal | 250 N | 4.676 248 | 0.1 N | FL 200 | 1.00 | ||
| Digital | Metal | 50 N | 6.275 873 | 0.02 N | FL 50 | 1.00 | ||
| Digital | Metal | 100 N | 4.676 247 | 0.05 N | FL 100 | 1.00 | ||
| Digital | Metal | 1000 N | 4.676 250 | 0.5 N | FL 1K | 1.00 | ||
| Digital | Metal | 5 N | 4.676 244 | 0.002 N | FL 5 | 1.00 | ||
| Digital | Metal | 10 N | 4.676 245 | 0.005 N | FL 10 | 1.00 | ||
| Digital | Metal | 25 N | 4.676 246 | 0.01 N | FL 20 | 1.00 | ||
| Digital | Metal | 500 N | 4.676 249 | 0.2 N | FL 500 | 1.00 |
