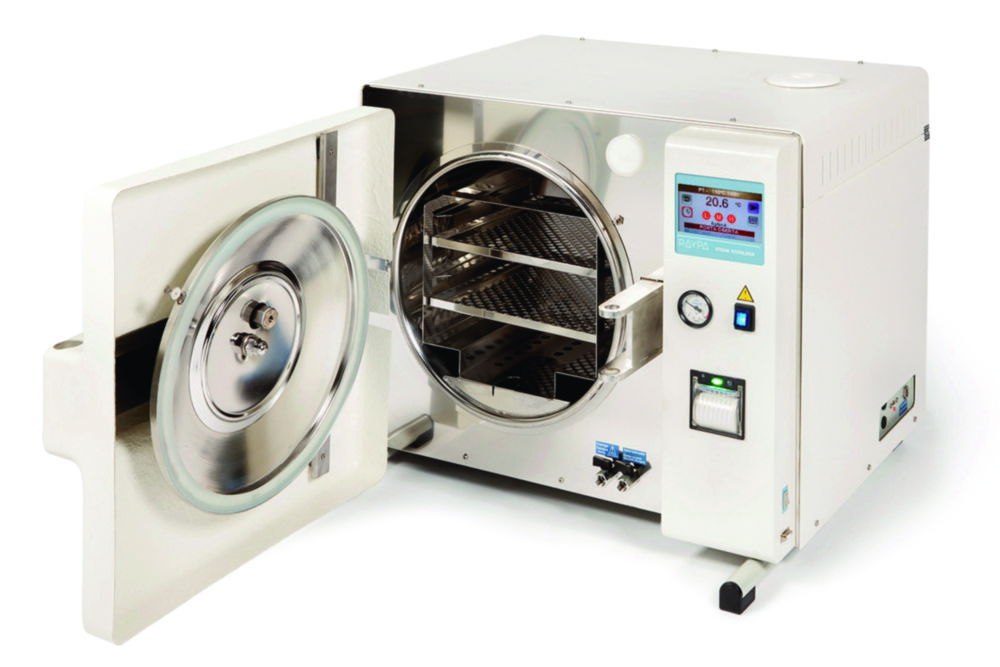

Digital horizontal autoclave Type AH
This autoclave is microprocessor controlled and monitored with 10 sterilisation programmes of which 4 are fixed and 6 are freely selectable and has bacteriological filters included by default.
- Operating temperature range 100 °C to 134 °C
- On request, also available with B Class
- RS 232 interface
- Fully automatic functions
- With water reservoir, pre-vacuum and drying
- Case and lid shrouding are AISI 304 stainless steel
- Sterilisation chamber, lid and sealing system are AISI 316 stainless steel
- Electrical heating with protected heating elements
- Safety pressure valve
- Safety thermostat
- Automatic steam controlled by Touch Screen microprocessor
- Manual valves for emptying the sterilisation chamber and for draining steam
- Equipped with mesh stand on the chamber base and trays
- Supply requirements: 230 V 16 A single phase
Toote variatsioonid
| PK | Depth int. | External dimensions (WxDxH) | Ext. depth | Catalog number | Ext. height | Ext. width | Heating capacity | Int. Ø | Loading | Material housing | Material interior | Max. temperature | Max. voltage | Min. temperature | Nominal capacity | Power supply | Temperature | Type | Weight | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.00 | 400 mm | 805 x 805 x 650 mm | 805 mm | 6.267 579 | 650 mm | 805 mm | 2800 W | 360 mm | Horizontal | Stainless steel | Stainless steel | 134 °C | 230 V | 100 °C | 50 l | 230 V, 50...60 Hz | 100 ... 134 °C | AHS-50 DRY | 109 kg | ||
| 1.00 | 430 mm | 560 x 660 x 425 mm | 660 mm | 9.851 898 | 425 mm | 560 mm | 2000 W | 210 mm | Horizontal | Stainless steel | Stainless steel | 134 °C | 230 V | 100 °C | 21 l | 230 V, 50...60 Hz | 100 ... 134 °C | AH-21 L | 49 kg | ||
| 1.00 | 600 mm | 805 x 1,005 x 650 mm | 1005 mm | 9.851 888 | 650 mm | 805 mm | 3200 W | 360 mm | Horizontal | Stainless steel | Stainless steel | 134 °C | 230 V | 100 °C | 75 l | 230 V, 50...60 Hz | 100 ... 134 °C | AHS-75 DRY | 126 kg |
