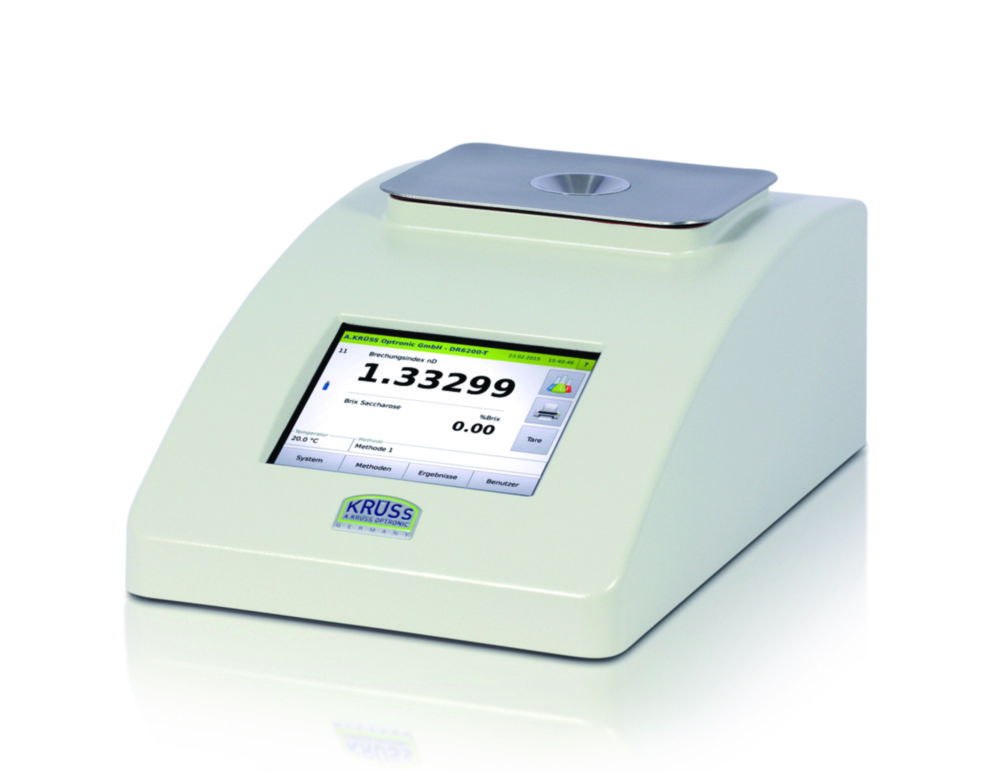

Digital Laboratory refractometers

The DR6000 refractometers work with hardly any service and are very quiet, good for long-term work in the lab. Very easy to operate due to an intuitive touch screen. Optional connections to printer, PC or network provide highest flexibility. High precision through integrated peltier thermostat (T-model). Flow measurement cells enable continuous measuring (TF-model). The devices are used wherever a substance in watery solutions has to be measured.
Areas of usage: beverage, chemistry, pharma, food, paper, sewerage, textile, petrochemistry, cosmetics.

  • Specifications
  • Interface: RS-232, USB, Ethernet
  • Temperature range: 10 … 80 °C
  • Resolution: 0.1°C
  • Accuracy: 0.1 °C
  • Measurement modes: Single, interval
  • Scales: Refractive index (nD), concentration of sucrose, glucose, fructose and invert sugar (%Brix), user-defined
  • Power supply: 90 … 240 V, 47/63 Hz

Toote variatsioonid

TypeResolutionMeasuring rangeAccuracyCatalog numberPKKogus
DR6100-TFnD 0.00010.1 %BrixnD 1.3200 ... 1.70000 ... 95 %BrixnD ±0.0001±0.1 %Brix6.235 8921.00
DR6000-TFnD 0.00010.1 %BrixnD 1.3200 ... 1.58000 ... 95 %BrixnD ±0.0001±0.1 %Brix9.801 1011.00
DR6100-TnD 0.00010.1 %BrixnD 1.3200 ... 1.70000 ... 95 %BrixnD ±0.0001±0.1 %Brix6.241 6901.00
DR6000-TnD 0.00010.1 %BrixnD 1.3200 ... 1.58000 ... 95 %BrixnD ±0.0001±0.1 %Brix6.237 9651.00
DR6300-TFnD 0.000010.01 %BrixnD 1.32000 ... 1.700000 ... 95 %BrixnD ±0.00002±0.02 %Brix9.801 1051.00
DR 6000-T + IBNnD 0,0001 0,1 %BrixnD 1,3200 ... 1,5800 0 ... 95 %BrixnD ±0,0001 ±0,1 %Brix6.320 7511.00
DR6000nD 0.00010.1 %BrixnD 1.3200 ... 1.58000 ... 95 %BrixnD ±0.0001±0.1 %Brix6.239 3841.00
DR6200-TFnD 0.000010.01 %BrixnD 1.32000 ... 1.580000 ... 95 %BrixnD ±0.00002±0.02 %Brix9.801 1031.00
DR6300-TnD 0.000010.01 %BrixnD 1.32000 ... 1.700000 ... 95 %BrixnD ±0.00002±0.02 %Brix9.801 1041.00
DR6200-TnD 0.000010.01 %BrixnD 1.32000 ... 1.580000 ... 95 %BrixnD ±0.00002±0.02 %Brix9.801 1021.00
