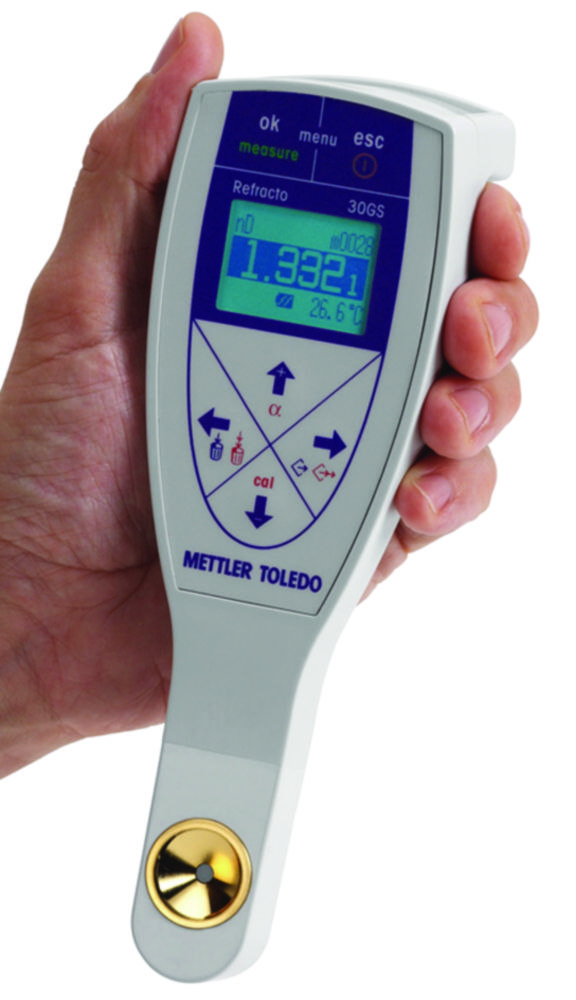

Digital portable refractometers Refracto 30GS
Portable device for determining refractive index and derived concentration values. Simple operation and fast results: the sample is either dripped onto the measuring cell or the instrument is immersed directly in the sample liquid. Suitable for laboratory and field measurements, e.g. in food processing or industry.
- Automatic temperature compensation
- Suitable for measurement of dark samples
- Backlit LCD display shows values and menu functions
- Calibration with water
- Memory for up to 1100 measured values, together with sample ID, unit, temperature compensation coefficient, time and date
- Individual formulas for calculation of user-defined concentration data can be defined in the device
- Measuring units: nD, nD temperature compensated, Brix% temperature compensated, HFCS42, HFCS55, °Baumé, °Oechsle (D, CH), °KMW (Babo), T.A. 1990, weight %, vol.-%, specific weight and freezing point (in °C or °F) for ethanol and NaCl, weight %, volume % and freezing point (in °C or °F) for ethylene glycol and propylene glycol, weight % and volume % for isopropyl alcohol, user-defined unit
- Values can be transferred to the PC via IR interface
- Sapphire measurement cell for larger measuring range and faster temperature compensation
Scope of supply: Refracto 30GS, pipette for sample handling, cleaning towels, operating instructions, flasks for sample and cleaning solutions, CD-ROM with software for data transmission, transport case
Toote variatsioonid
| Accuracy Number | Battery/rechargeable battery | Depth | Designation ANSI | Dimensions (WxDxH) | Height | Max. temperature | Measured range | Min. temperature | Catalog number | Resolution | Temperature | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 x 1.5 V, AAA | 185 mm | AAA | 55 x 185 x 60 mm | 60 mm | 40 °C | -10 °C | 9.947 556 | -10 ... 40 °C | Refracto 30GS | 250 g | 55 mm | 1.00 |
