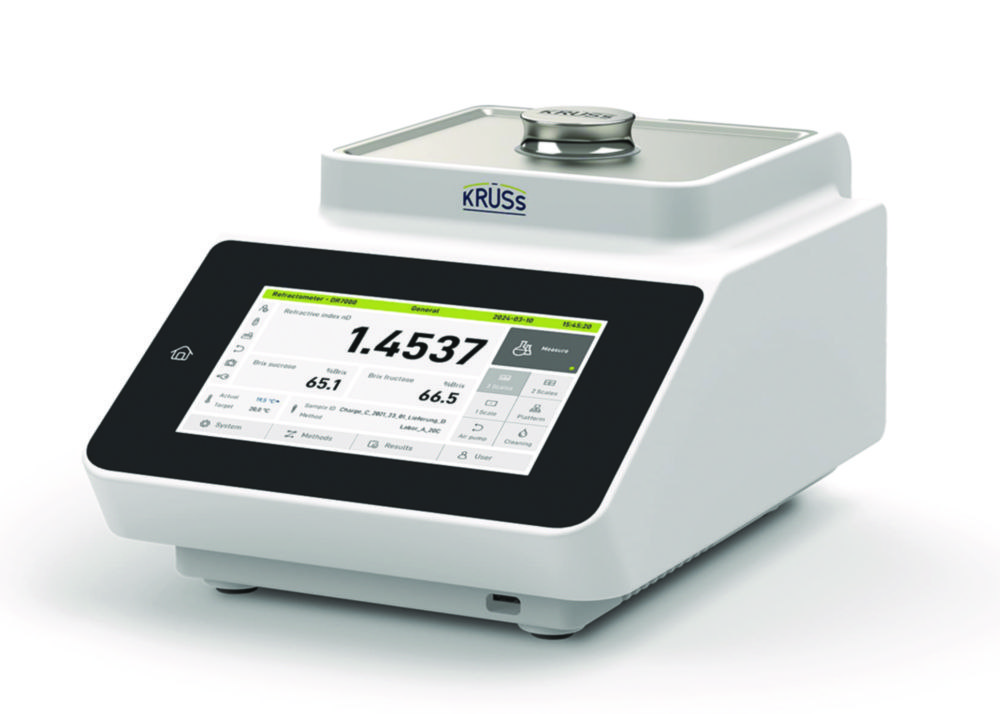

Digital refractometers DR7000 series

With these digital refractometers, the measurement is based on the determination of the limiting angle of total reflection between a sample and a prism, measured at a wavelength of 589 nm. Suitable for small sample volumes of approx. 0.3 ml. With optical sensor, temperature control, measuring electronics, evaluation electronics and touch display, the devices contain all the components needed to carry out the measurements reliably. Operation takes place directly on the device, so that a separate PC with software is not necessary.

  • Internal Peltier temperature control and integrated sensor for temperature monitoring
  • Pre-installed scales (refractive index and %Brix, temperature compensation for %Brix)
  • Functions allowing the customer to create and edit further measurands and temperature compensations
  • Up to three measurands can be measured simultaneously
  • Internal memory for storing measurement results
  • 1-point adjustment by the customer
  • Activatable user management with three user levels
  • Chemical-resistant stainless steel tray
  • Sample prism made from scratch-resistant, chemical-resistant sapphire
  • Interfaces: 2 x USB, 1 x RS-232, 1 x LAN

Toote variatsioonid

DepthDimensions (WxDxH)HeightIP codeMax. temperatureMax. voltageMin. temperatureMin. voltageCatalog numberPower supplyTemperatureTypeWeightWidthPKKogus
360 mm230 x 360 x 170 mm170 mmIP 2080 °C240 V·AC-10 °C90 V·AC4.710 16390 ... 240 V·AC, 50/60 Hz10 ... 80 °CDR7300-P5 kg230 mm1.00
360 mm230 x 360 x 170 mm170 mmIP 2060 °C240 V·AC-10 °C90 V·AC4.710 16190 ... 240 V·AC, 50/60 Hz-10 ... 60 °CDR7100-P5 kg230 mm1.00
